Fuel System

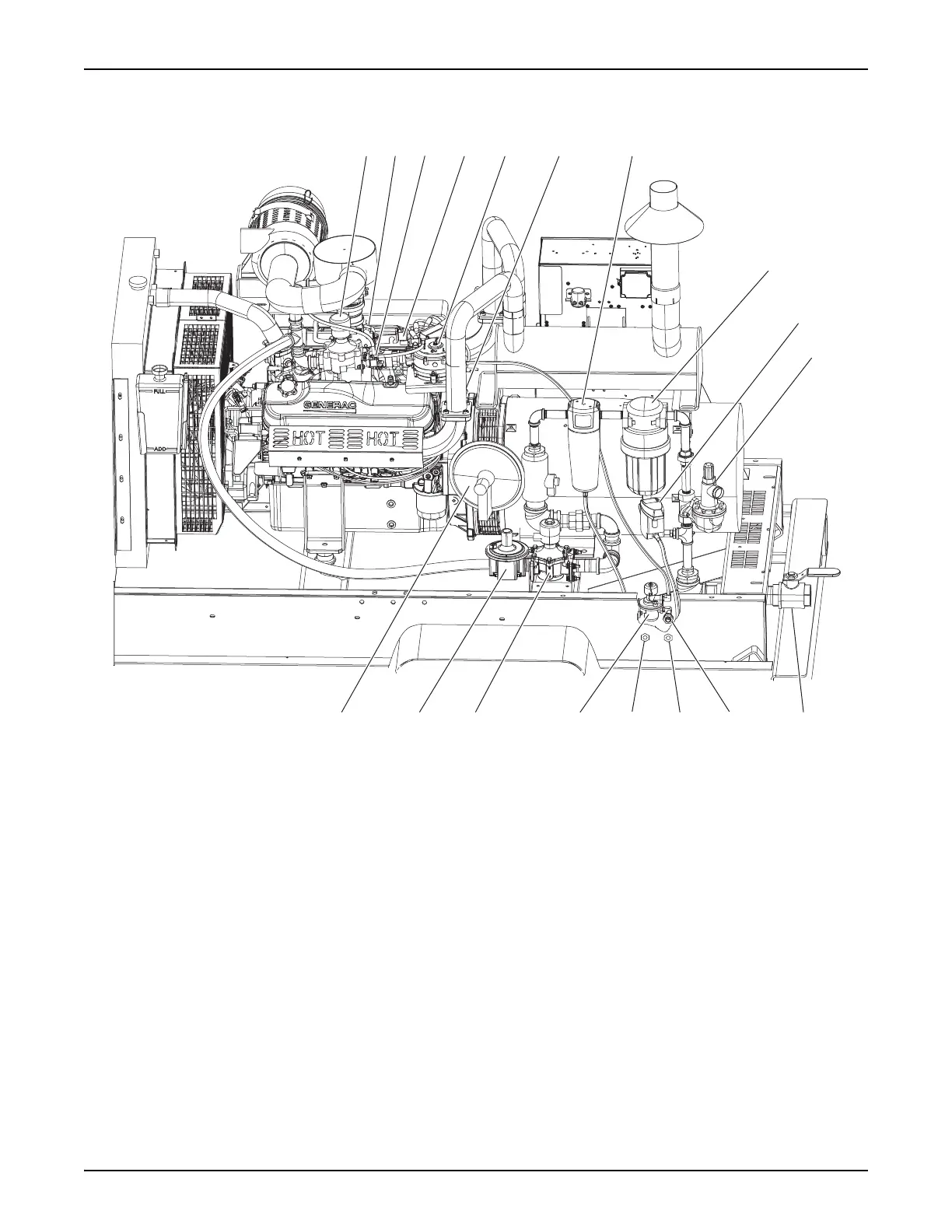

Figure 7 - MGG100M Fuel System
1. LPV solenoid shut-off valve 10. Primary high pressure regulator
2. Bosch throttle body 11. NG inlet port
3. LPL A/F solenoid valve 12. LPL inlet port
4. LPL solenoid valve vent 13. Moisture separator drain port
5. LPL vaporizer and regulator 14. Particulate filter drain port
6. Wellhead gas A/F solenoid valve 15. LPL solenoid shut-off valve
7. Wellhead gas particulate filter 16. Wellhead gas solenoid shut-off valve
8. Wellhead gas moisture separator filter 17. Low pressure regulator
9. Electronic condensate drain 18. Secondary high pressure regulator
1 3
4
56 7
8
10
111213
2
14
15
16
17
02203
9
18
