Valve and Fitting Pipe Equivalents
* Reg O A7500 series valves.

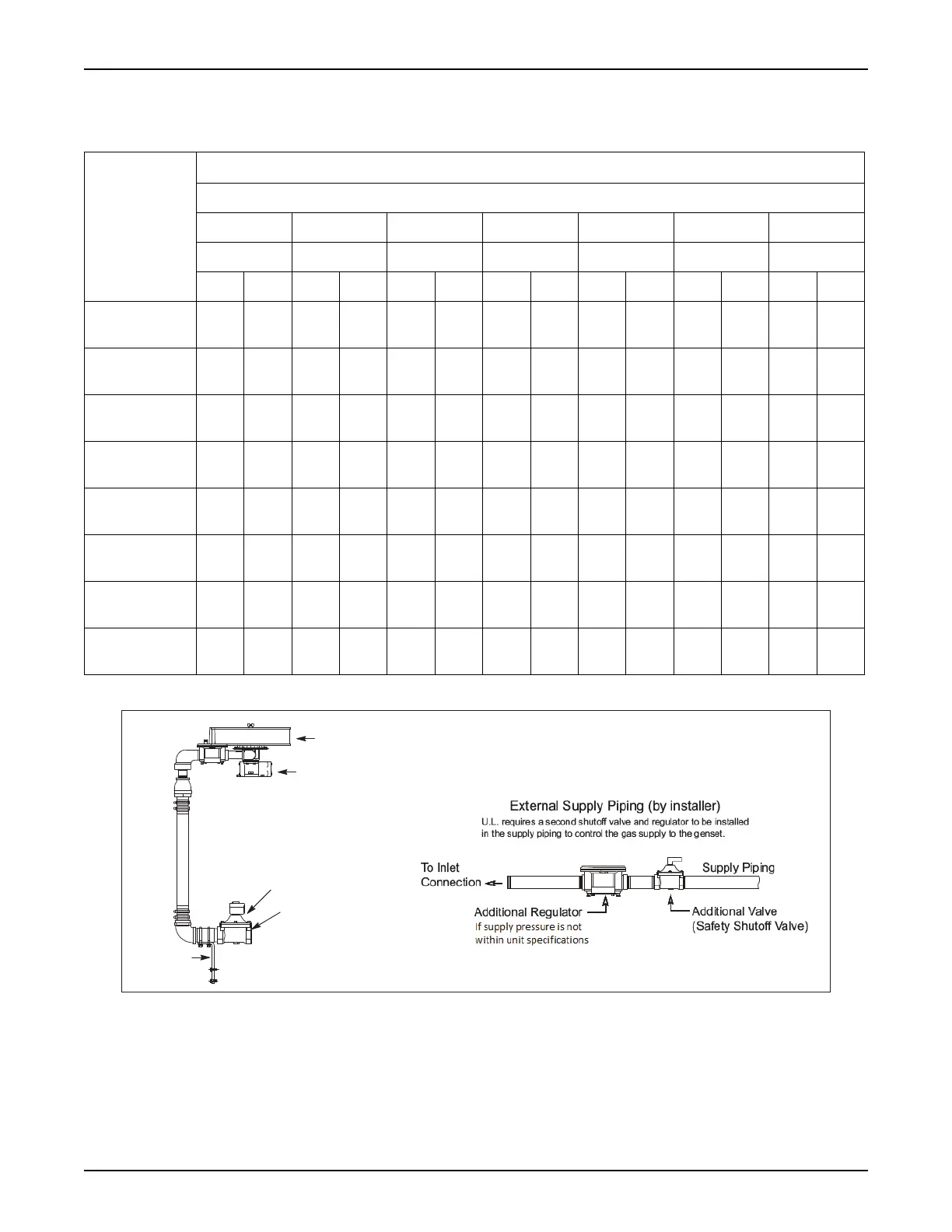

Figure 19 - Gas Line Connections
Table 3 - Valve And Fitting Pipe Equivalents
Fitting
Equivalent Length Of Steel Pipe (Feet)
Nominal Pipe Size (NPT)
3/4” 1” 1-1/4” 1-1/2” 2” 2-1/2” 3”
Schedule Schedule Schedule Schedule Schedule Schedule Schedule
40 80 40 80 40 80 40 80 40 80 40 80 40 80
45° Screwed
Elbow
1.2 0.9 1.3 1.2 1.7 1.5 2.0 1.8 2.6 2.4 3.0 2.8 3.8 3.7
90° Screwed
Elbow
1.8 1.6 2.3 2.1 3.1 2.9 3.7 3.4 4.6 4.4 5.3 5.1 6.9 6.5
Screwed T
Thru Run
1.4 1.3 1.7 1.6 2.4 2.3 2.8 2.6 3.6 3.3 4.2 4.0 5.4 5.0
Screwed T
Thru Branch
4.6 4.0 5.6 5.3 7.9 7.3 9.3 8.6 12.0 11.0 15.0 14.0 17.0 16.0
Screwed
Globe Valve*
14.0 10.0 21.0 16.0 24.0 19.0 39.0 27.0 42.0 34.5 24.0 20.0 46.0 39.0
Screwed
Angel Valve*
11.0 8.0 13.0 10.0 10.5 8.5 20.0 16.0 32.0 26.5 7.5 6.0 19.0 16.0
Flanged
Globe Valve*
- - - - - - 30.0 24.0 4.10 34.0 - - 46.0 39.0
Flanged
Angle Valve*
- - - - - - 12.0 10.0 14.5 12.0 - - 19.0 16.0
Air Cleaner
Carburetor
(Typical piping as shown)
Solenoid, Fuel Lock
Fuel Inlet
Connection
Mounting
Bracket
