Operation
36833 C MGG100M Operating Manual 37
GENERATOR OUTPUT CONNECTIONS
Equipment damage. Exceeding rated voltage and current will damage the auxiliary contacts.
Verify that voltage and current are within specification before energizing this equipment.
(000134a)
Temperature and Altitude Derating
Derating is the reduction of available power for operating tools and accessories connected to the receptacles. All
units are subject to derating due to altitude and temperature. Typical reductions in performance are 2–4% for every
1000 ft (305 m) of elevation and 1% per 10ºF (3–5ºC) increase in ambient air temperature over 72ºF (22ºC).
Customer Convenience Receptacles
The customer convenience receptacle is attached to the outside of the customer disconnect switch box (Figure 20).
The receptacle is a 120VAC duplex outlet rated at 20A with Ground Fault Circuit Interrupt (GFCI) protection.
The receptacle is not routed through the MLCB, but through an independent circuit breaker, located directly next to
it. The breaker is sized to the maximum rating of the receptacle.
Power to the receptacles is available when the generator is running, even if the main circuit
breaker is OFF (O). MAKE SURE THAT ANY EQUIPMENT CONNECTED TO THE
CONVENIENCE RECEPTACLES IS TURNED OFF BEFORE TURNING THE BREAKERS
ON and the output voltage is correct for equipment connected to the receptacles. Improper
voltage may cause equipment damage or malfunction.

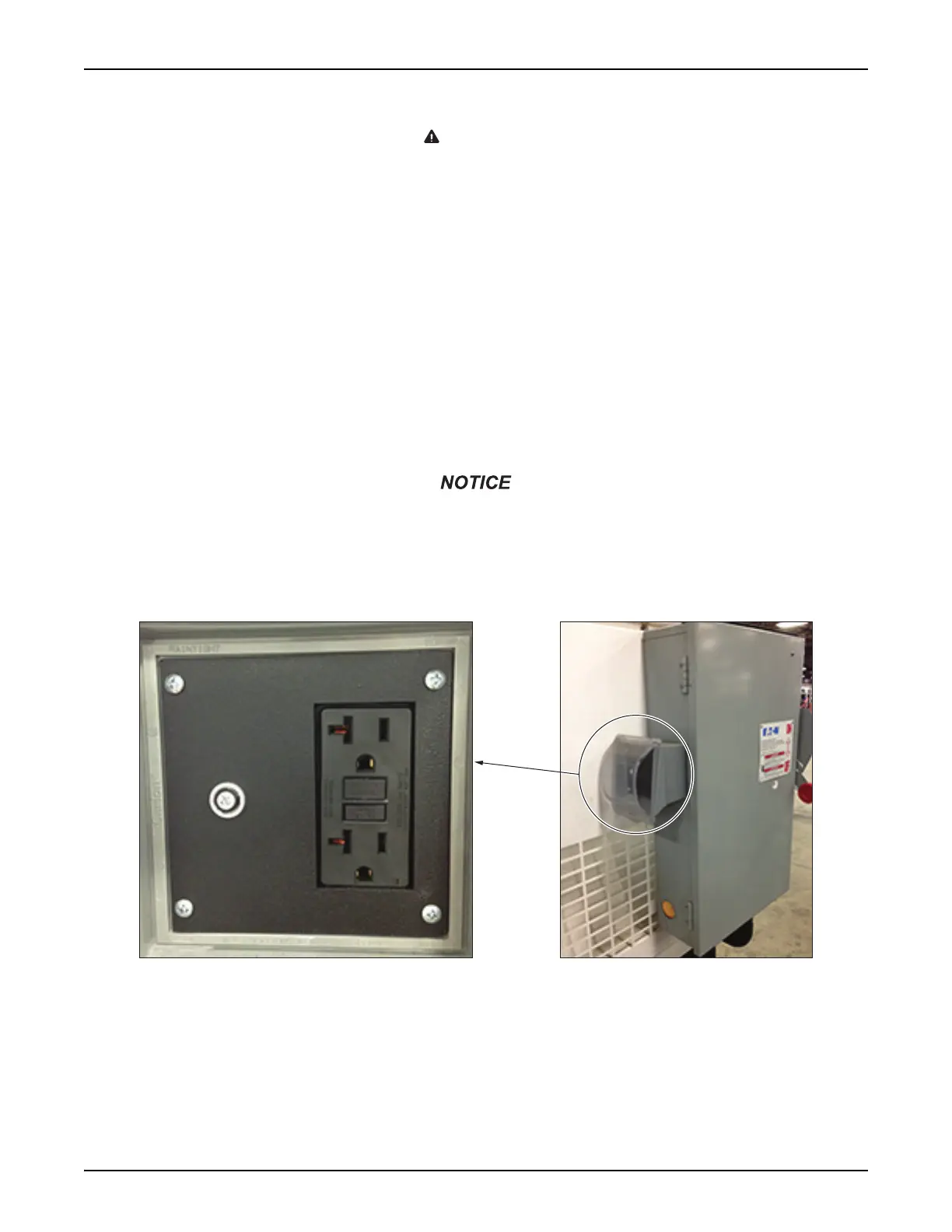

Figure 20 - Customer Convenience Receptacle
02198
