General Information
36833 C MGG100M Operating Manual 15
H-100 CONTROL PANEL
The H-100 control panel (Figure 8) enables the operator to start and stop the unit, monitor the unit, and view and
respond to alarms and warnings.
Components

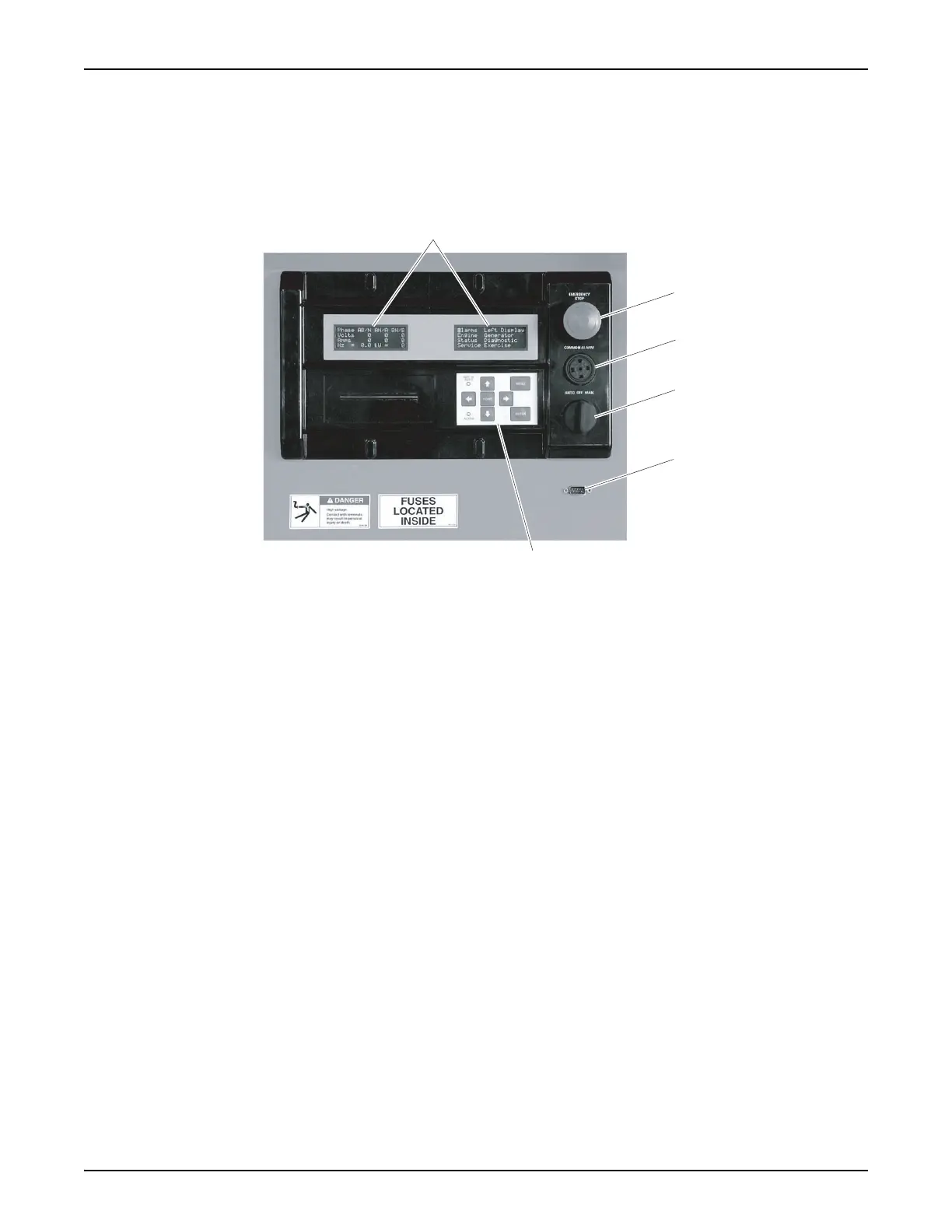

Figure 8 - H-100 Control Panel
Left Display
The left display contains predefined pages that display operating parameters. It does not respond directly to the
keypad; its contents are determined by menu selections in the right display.
The left display can be configured to display different menus. Default items are current operating volts, amperes,
kilowatts, and frequency.
See the H-100 Control Panel Operations Manual for more information.
Right Display
The right display contains several pages and responds directly to the keypad. The right display shows the following.
• Alarm information
• If you press HOME: Displays engine data (oil pressure, oil temperature, water temperature, battery voltage)
• If you press MENU: Displays main menu
1. Left and right displays 4. Key switch
2.
Emergency stop switch
5.
Programming/GenLink
®
port
3. Common alarm horn 6. Navigation keypad
