Generac Power Systems VT HYBRID User Manual

VT HYBRID 9mt 4x150W LED
78
TL187-01-00-00
01-07-2016
FIAMM battery

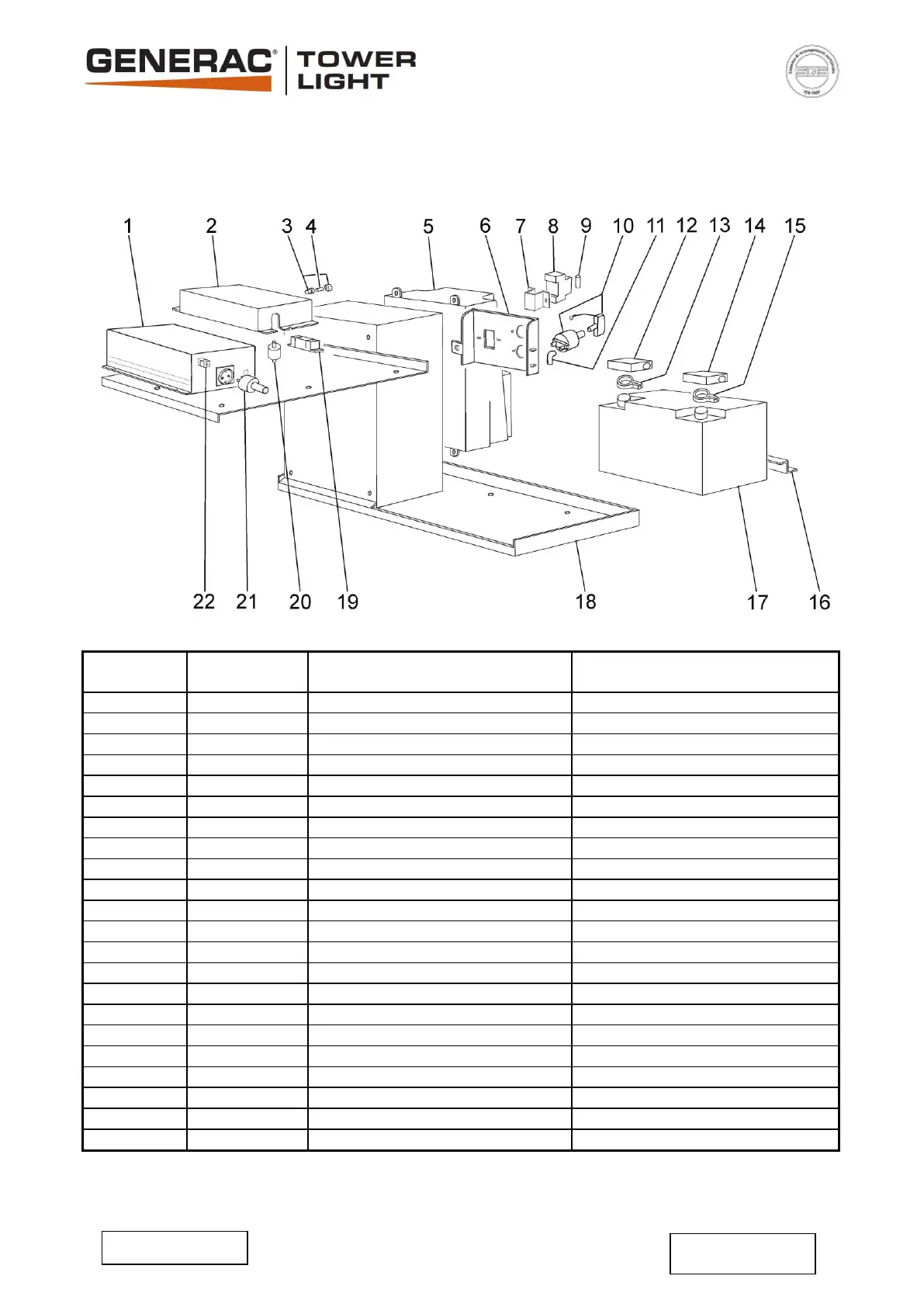

19.4 ELEKTRONISEN AKKULATURIN JA VAIHTOSUUNTAAJAN VARAOSALUETTELO –
ELECTRONIC BATTERY CHARGE AND POWER INVERTER SPARE PARTS LIST
Sijainti
Items
Koodi
Code
Kuvaus
Denomination
1
16460
Phoenix invertteri 24-1200
24-1200 Phoenix inverter
2
16483
Protezione controllore di carica
Charge controller protection
3
10046
Sulakekotelo 6.3x32
6.3x32 fuse holder
4
15818
Sulake 2 A 250 V 6.3x32
2 A 250 V 6.3x32 fuse
5
16593-F
Elektroninen akkulaturi 24 V
24 V electronic battery charge
6
16482
Akun kytkimen tuki
Battery switch support
7
7107
Katkaisija tuki
Circuit breaker support
8
16424
Sulakekotelo 22x58
22x58 fuse holder
9
16425
Sulake 80 A 22x58
80 A 22x58 fuse
10
7672-C
Koko akun kytkin
Battery switch assembly
11
12144
Akun kytkimen kuminen suojus
Battery switch rubber protection
12
6153
Akun sininen liittimen suojus
Blue cover for battery
13
6886
Akun miinusliitin
Battery negative terminal
14
7127
Akun punainen liittimen suojus
Red cover for battery
15
6885
Akun plusliitin
Battery positive terminal
16
9303-01
Akun tuki
Battery bracket
17
6884
Akku 12 V 44 Ah
12 V 44 Ah battery
18
13834
Akkulaturin tuki
Battery charge support
19
16459-02
Shunt 500 A 50 mA
500 A 50 mA shunt
20
16089
Eriste M/M M8x26 M6x13
M8x26 M6x13 M/M insulator
21
7993
Pistoke 16 A 230/240 V suko
16 A 230/240 V schuko plug
22
16576
Urosliitin RJ12 6P/6C
RJ12 male 6P/6C connector
