Genie DPL Super Series Service Manual

4 - 12 DPL-25S • DPL-30S • DPL-35S Super Series Part No. 40462
September 2016
Section 4 - Scheduled Maintenance Procedures

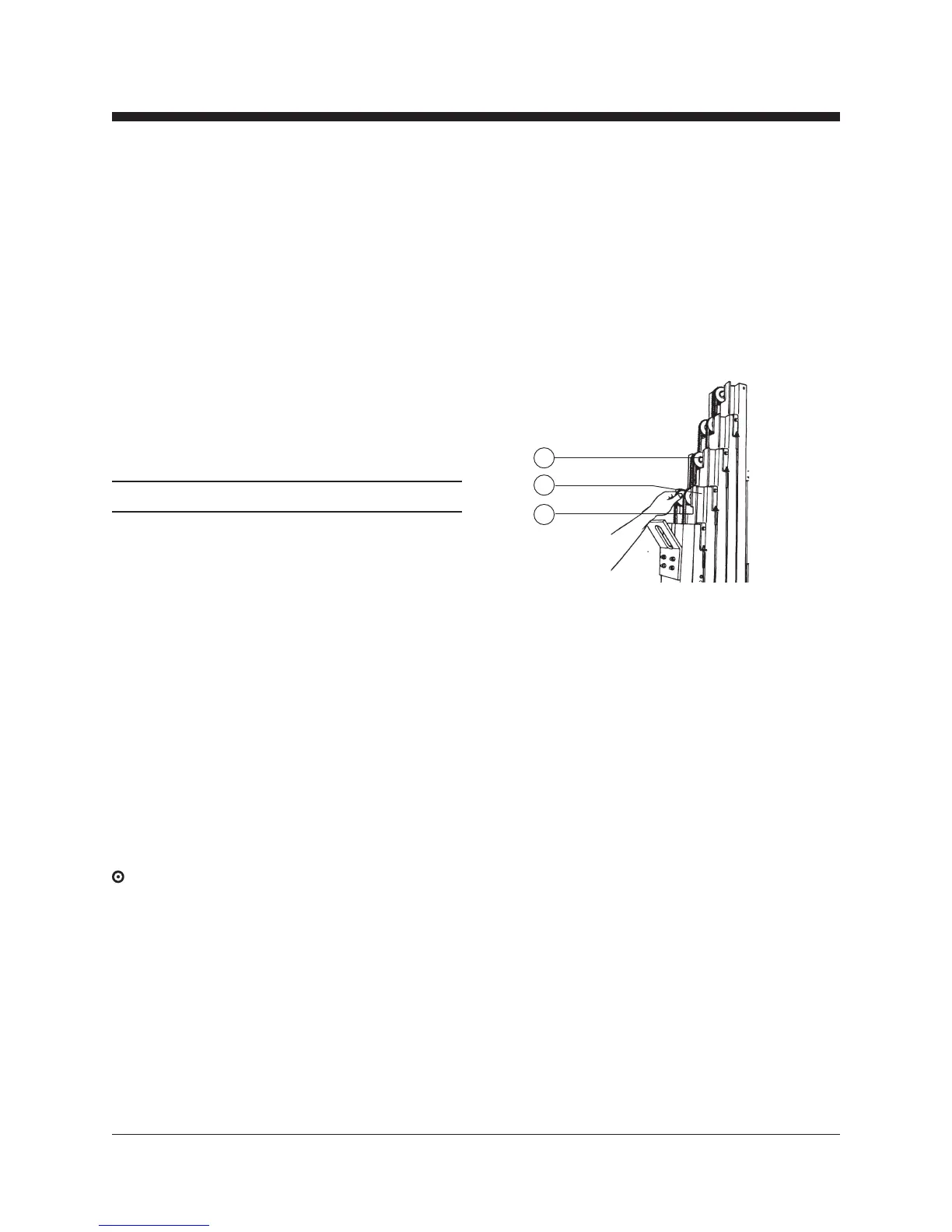

5 Inspect each idler wheel for the following:
• Excessive wear on the side flanges
• Unusual wear
• Movement side to side in excess of
0.040 inches (1 mm)
• Any movement of wheel front to back
a idler wheel
b spacer
c lifting chain
Note: If idler wheel inspection results in a
measurement that is not within specification, refer
to Repair procedure 5-2, How to Assemble the
Mast.
6 Adjust the sequencing cables. See B-8, Adjust
the Sequencing Cables.
c
a
b
C-1
Inspect and Lubricate the Casters
Extremely dirty conditions may require that the
casters be inspected and lubricated more often.
1 Visually inspect each caster for cuts, cracks or
unusual wear.
2 Move the machine on a flat smooth surface and
check that the casters roll smoothly.
3 Pump grease into the caster until it can be seen
coming out of the bearing seal gap.
Grease Type Lithium-based
C-2
Inspect the Mast Assemblies
for Wear
Detection of excessive or unusual wear in the mast
assembly is essential for safe machine operation.
An unsafe working condition exists if the mast
assembly has excessive wear and/or does not
operate smoothly, free of hesitation and binding.
1 Raise the platform until 3 to 5 inches (7.6 to
12.7 cm) of the top of each column is visible.
2 Visually inspect the top of each column for
clearance between the roller wheels and the
adjacent column surface.
Result: There should be a equal amount of
distance between the roller wheel and the
column on each side.
Note: If mast inspection results in a measurement
that is not within specification, refer to Repair
procedure 5-4, How to Adjust the Glide Pads.
3 Loosen but do not remove the adjustment nut on
the sequencing cable.
4 Raise the platform approximately 3 feet (1 m).
Table C Procedures
