May 2018 Service Manual
Quarterly Maintenance Procedures
Part No. 1275811GT GR
• QS
R • QS
W 29
Q-11
Adjust the Sequencing Cables
Genie specifications require that this procedure be
performed quarterly.
Maintaining proper adjustment of the sequencing
cables is essential for safe machine operation. An
unsafe working condition exists if the sequencing
cables are improperly adjusted. A frequent check
allows the inspector to identify changes in the
sequencing cables operating condition that might
indicate damage.
1 Fully lower the platform.
2 Locate the compression spring on each
sequencing cable.
Note: The spring is located between the nylock nut
and the upper sequencing bracket.

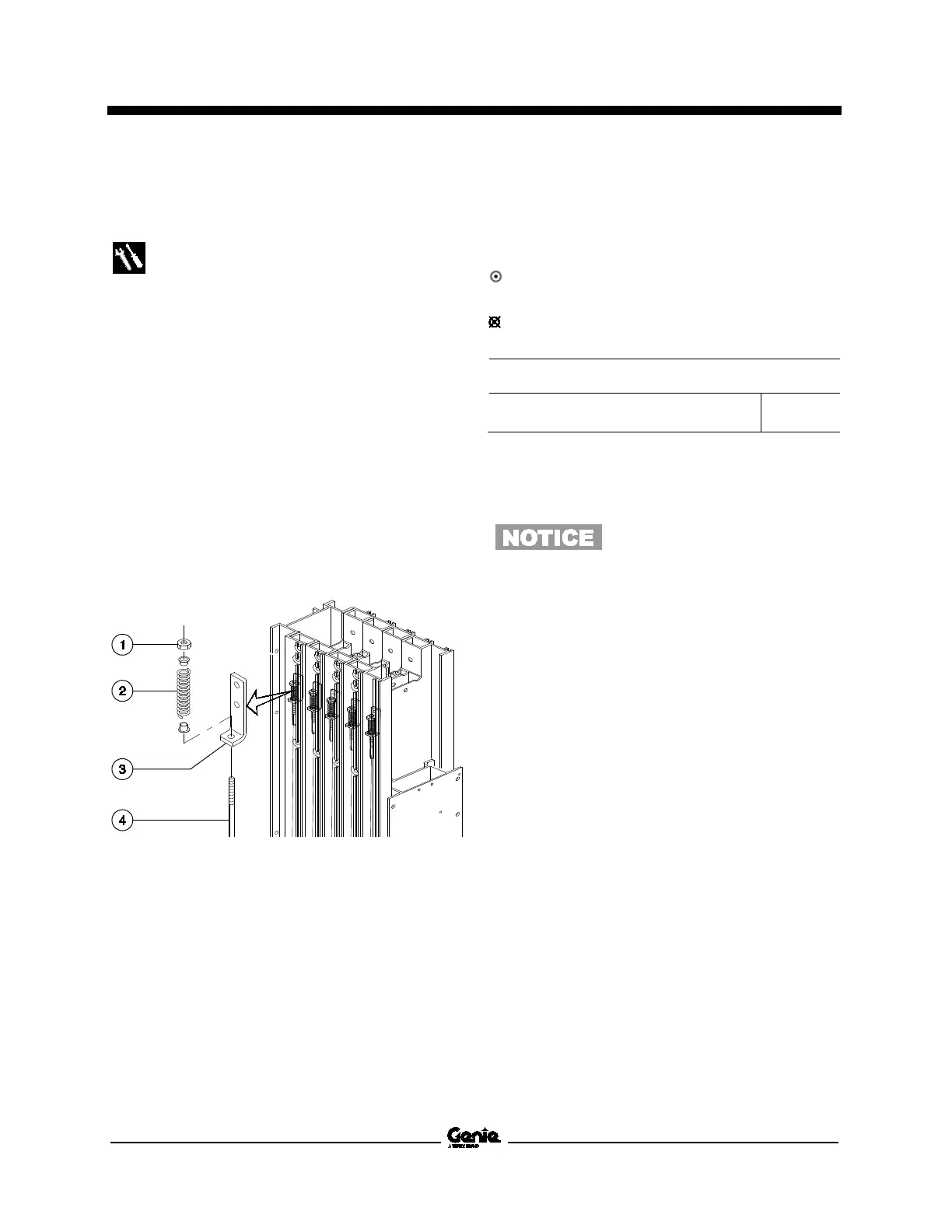

1 nylock nut
2 spring
3 upper sequencing bracket
4 sequencing cable
3 Confirm proper tension of each sequencing
cable by measuring the height of the spring
between the nylock nut and the upper
sequencing bracket.
Result: The measurement is within
specification. Proceed to step 7.
Result: The measurement is not within
specification. Proceed to step 4.
Sequencing cabl
e spring specification
Measurement, compressed
15/16 inch
2.4 cm
4 Adjust the spring compressed length by
turning the nylock nut clockwise to decrease
the spring length or counterclockwise to
increase the spring length.
Component damage hazard. Do
not
compress the spring to less
than specification.
5 Raise and lower the platform through three
complete cycles.
6 Repeat this procedure beginning with step 3.
7 Repeat steps 3 through 5 for each sequencing
cable as required.
