Genie GR-12 Service Manual

Service Manual May 2018
Platform Components
76 GR
™
• QS
™
R • QS
™
W Part No. 1275811GT
9-2

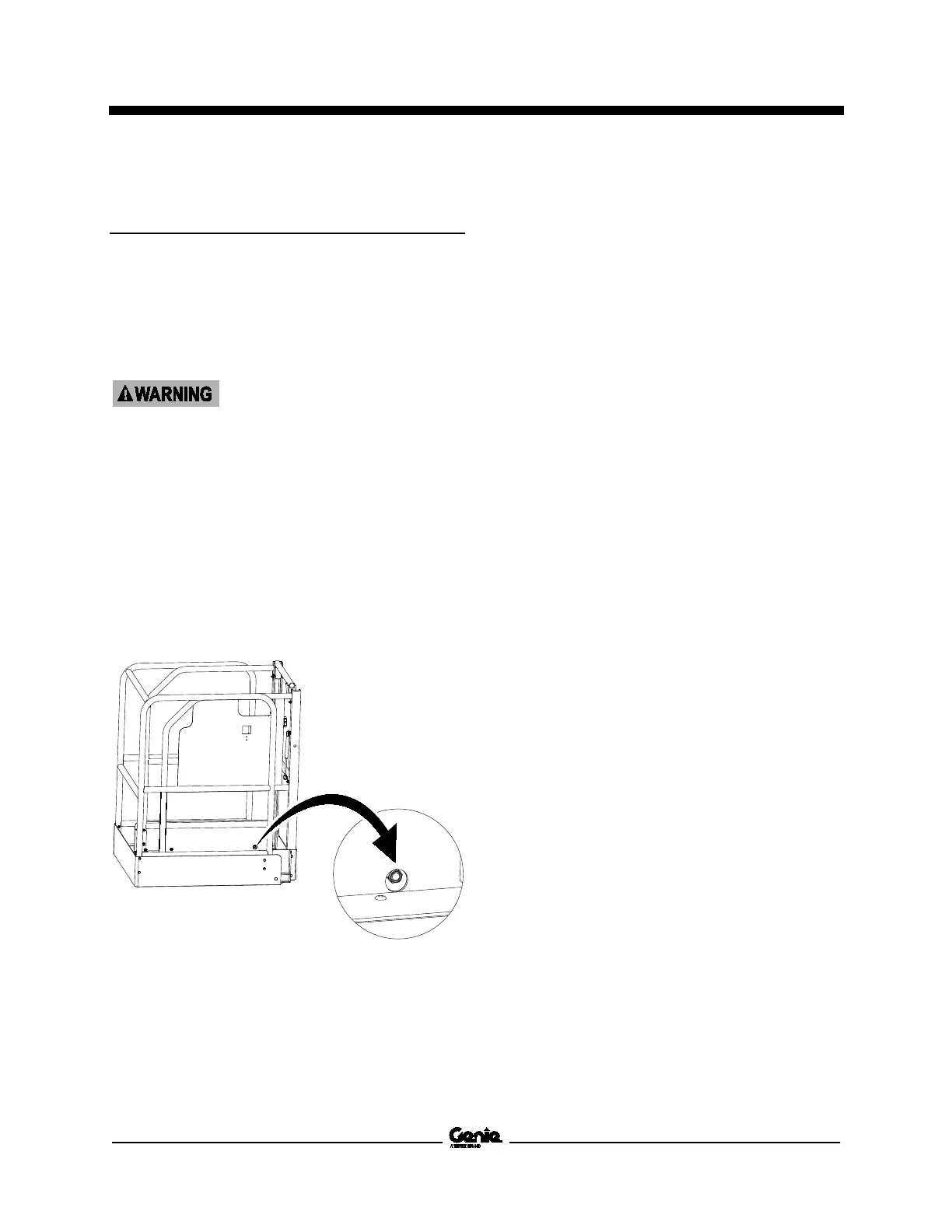

Platform Extension Deck
How to Remove the Platform
Extension Deck
1 Turn the key switch to the off position.
2 Disconnect the battery pack from the machine.
Electrocution/burn hazard.
Contact with electrically charged
circuits could result in death or
serious injury. Remove all rings,
watches and other jewelry.
3 Disconnect the platform controls from the
control cable at the platform, and remove the
platform controls from the platform. Set the
platform controls to the side.
4 Slide the extension deck forward until the
holes at the front of the extension deck are
aligned with the fasteners of the slide blocks,
at the front of the main deck.
5 Remove the fasteners securing the white slide
blocks to the main deck. Set the slide blocks
and the fasteners to the side.
6 Activate the foot release latch and slide the
extension platform out of the platform.

Genie GR-12 Specifications

General

Machine Width	1.2 m
Machine Length	2.44 m
Machine Height	2.54 m
Power Source	Electric
Stowed Height	2.54 m
Drive Speed - Lowered	4.8 km/h
Turning Radius (Inside)	2.44 m
Platform Width	1.12 m
Tire Type	Non-marking
Travel Speed	4.8 km/h
Ground Clearance	0.1 m
Overall Length	2.44 m
Overall Width	1.2 m
Overall Height	2.54 m
