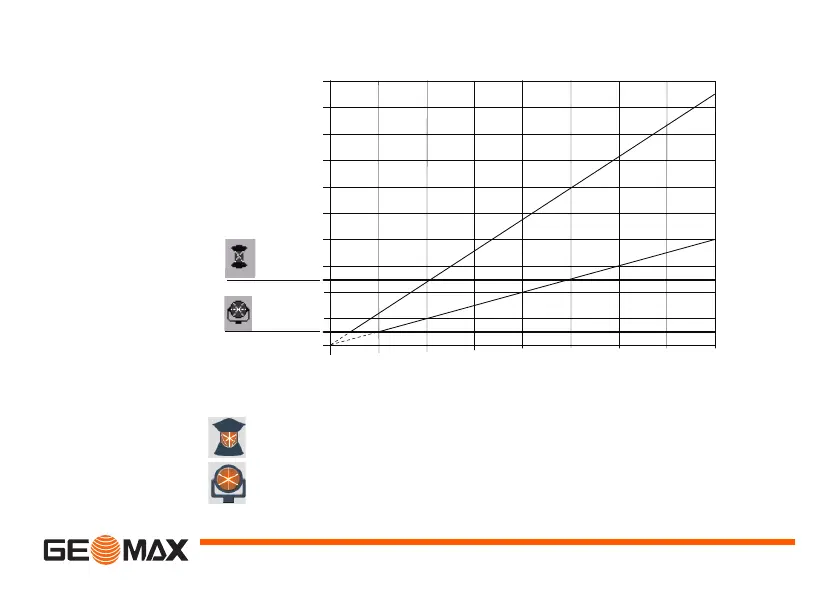

Technical Data
Zoom80
| 163
Leica GRZ4 prism (360°)
Circular prisms and circular Mini
prisms
20
mm
m
18
16
14
12
10
8
6
5”
2”
4
2
0
0
100
200
300
400
500
600
700
800
GRZ4
Zoom80_020
162
164
Table of Contents
Default Chapter
7
Table of Contents
7
Software Concept
17
Power Concept
19
Data Storage and Data Conversion Concept
20
Instrument
23
Controller
26
Instrument
28
Controller
32
Instrument
43
Controller
44
Icons
45
3 Operation
48
Instrument Setup for Remote Control
51
LED Indicators on ZRT80
54
Autodetect Behaviour
56
Fixing the Controller to a Holder and Pole
57
Batteries
62
Instrument
63
Controller
65
Working with the Compactflash Card
67
Instrument
68
Controller
70
Accessing Survey Application Program
74
Guidelines for Correct Results
77
Check & Adjust
80
4 Check & a M P
84
Preparation
84
Combined Adjustment (L, T, I, C and Aim360)
86
Tilting Axis Adjustment (A)
91
Adjusting the Circular Level of the Prism Pole
98
Inspecting the Laser Plummet of the Instrument
99
Servicing the Tripod
102
5 Care and Transport
103
Storage
104
Cleaning and Drying
105
Maintenance
107
6 Safety Directions
108
Intended Use
109
Controller
111
Limits of Use
113
Responsibilities
114
Hazards of Use
116
Laser Classification
122
Distancer, Measurements with Reflectors
123
Distancer, Measurements Without Reflectors
125
Aim360
130
Scout360
132
Navigation Light
134
Laser Plummet
136
Electromagnetic Compatibility EMC
140
FCC Statement, Applicable in U.S
143
7 Technical Data
147
Angle Measurement
154
Distance Measurement with Reflectors
155
Distance Measurement Without Reflectors
157
Distance Measurement - Long Range (lo Mode)
159
Aim360
161
Scout360
165
Scale Correction
166
Reduction Formulas
172
Controller
176
Conformity to National Regulations
180
Controller
181
Zrt80
183
International Limited Warranty, Software Licence Agreement
185
8 International Limited Warranty, Software Licence
187
Index
187
