INFO WINDOW
When a NAVIONICS cartridge featuring Tides and Currents
data is present, this window displays further information,
besides the forecast data supplied by selecting the Tides and
Currents station.
The following data is displayed:
• Latitude and longitude at the current boat’s position
• Current time and date
• Value of magnetic variation received by the GPS
• Dawn and sunset time
• Moonrise and moonset time
• Moon phase
• Graph of estimated tide level with respect to the current
position
DEPTH SOUNDER WINDOW
This window, displayed if the GEONAV is interfaced with a
depth sounder, replaces the number indicating the sea depth
in the Motor Boating windows with a graph showing the sea
bed. If received, the graph shows the water temperature as
well.
When navigating in waters deeper than sounder operating
range or if the boat’s speed is too high for depth sounding,
data acquisition will be interrupted and the number replaced
by “—”.

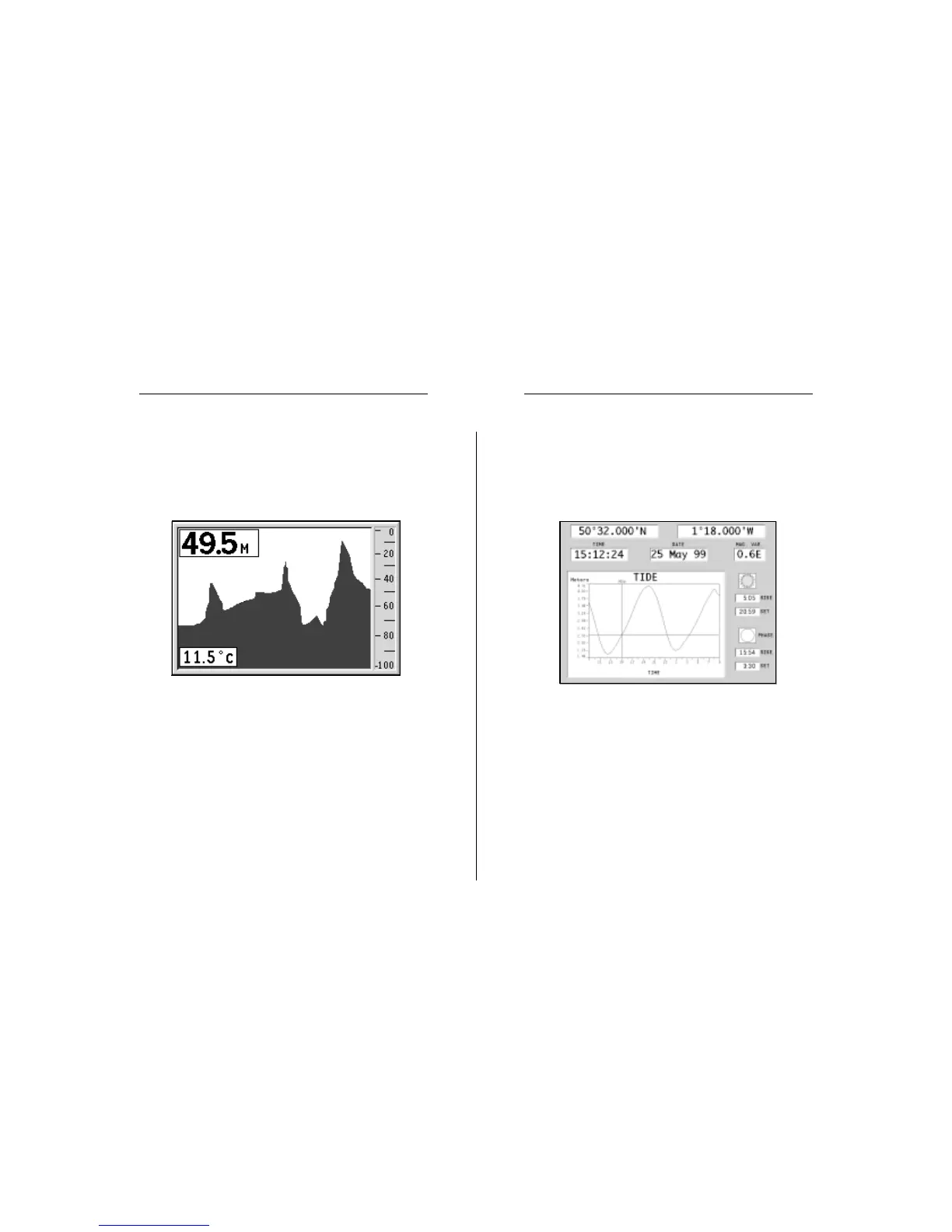

Depth Sounder Window Info Window
