GRAPHIC ITEMS
Besides chart data, the GEONAV displays some graphic items
useful during navigation.

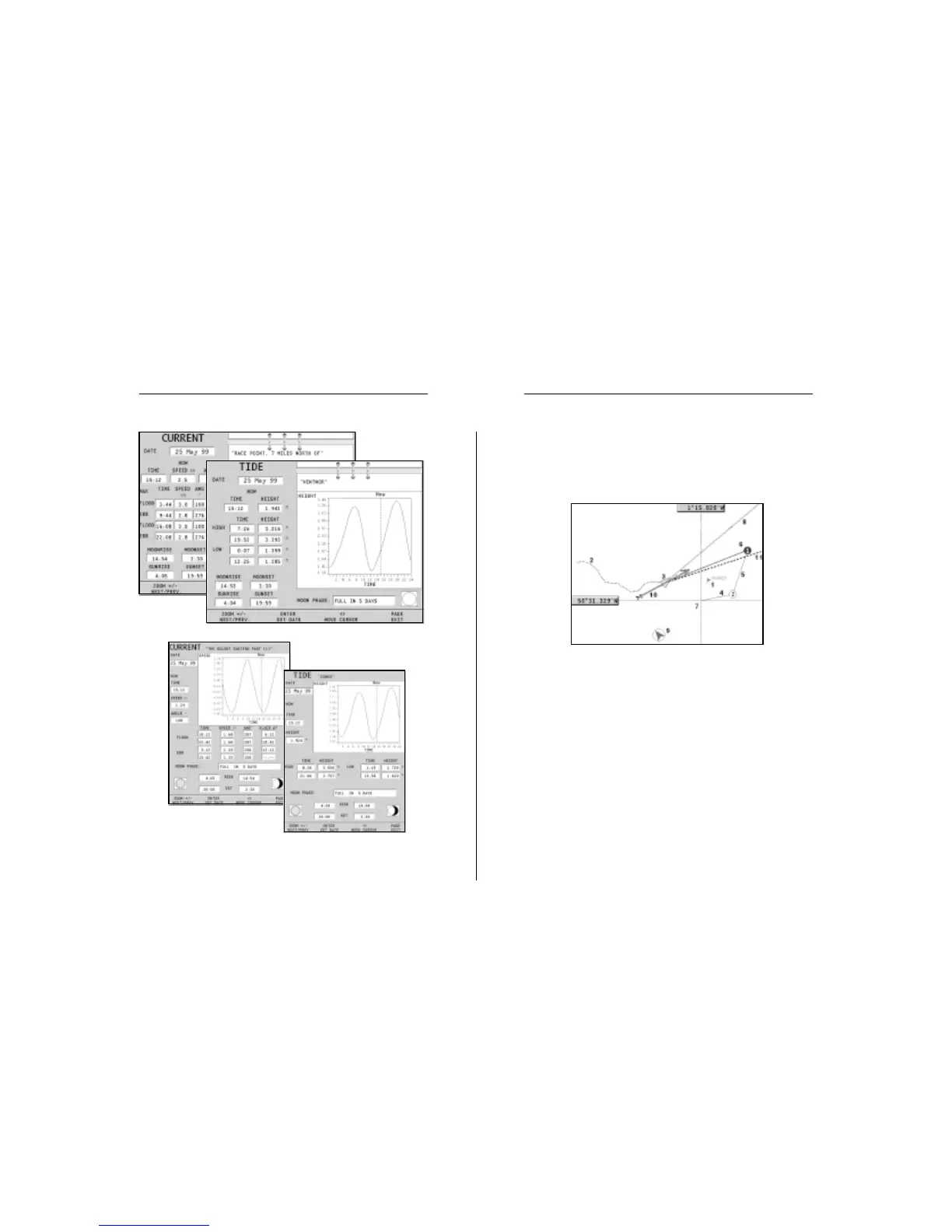

The figure below shows some of these items.
1 - Marker
Indicates a point of interest associated with a symbol, a name
and a color.
2 - Track segment
Recording of the track actually followed by the boat; the track
is displayed as a colored dashed line.
3 - Boat’s position
Boat’s position according to the data received from the GPS
receiver.
4 - Rubber band
Line joining the last waypoint entered to the manual cursor,
or the boat’s position to the manual cursor when no waypoint
has been entered.
To delete this band, press the PAGE key and switch to Naviga-
NAVIONICS Electronic Charts Graphic Items
