Comander Perimeter Security System
Engineering and Installation Manual
Page 17 of 72

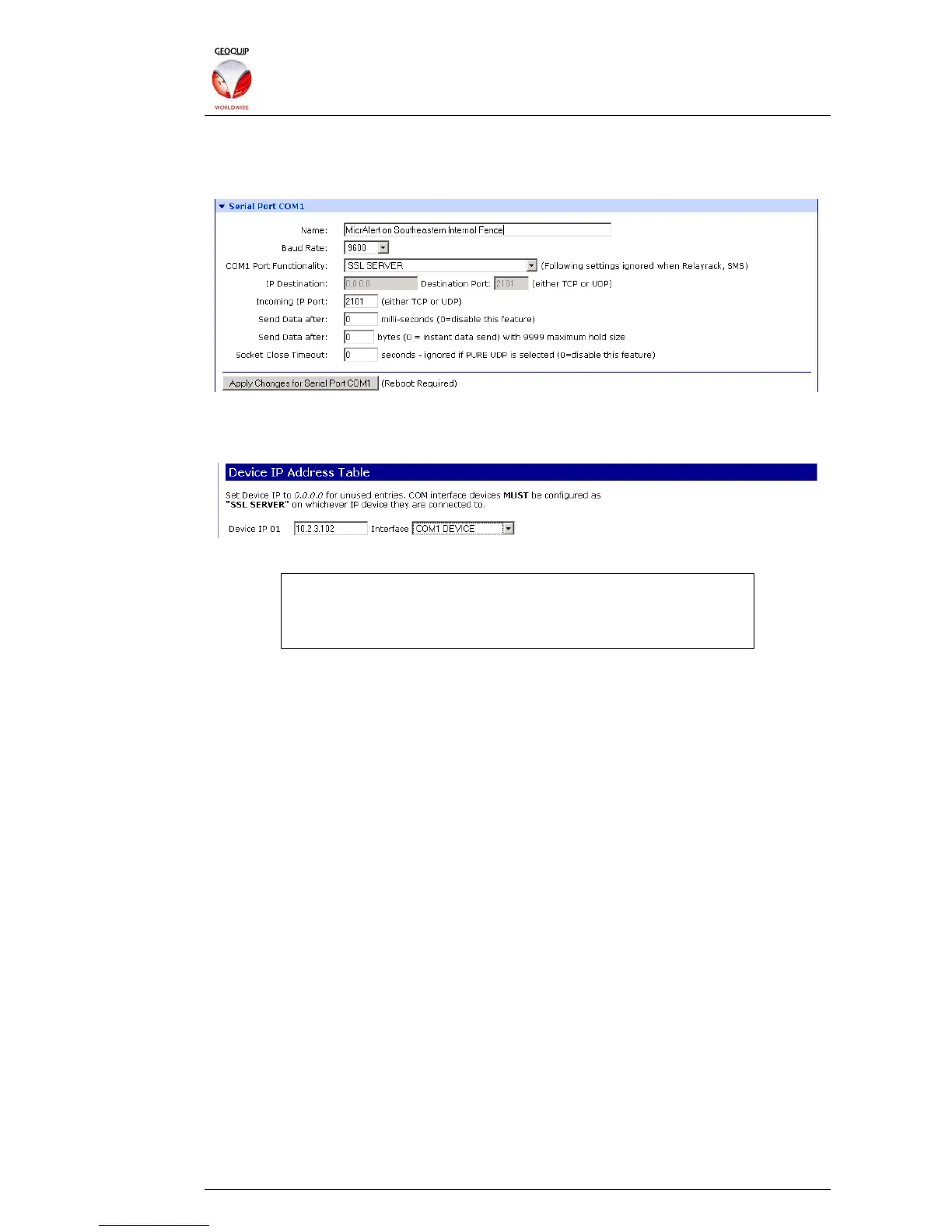

Here, the MicrAlert is connected to COM1 on Rack 10.2.3.102. The COM port must be
configured on the local Rack (10.2.3.102) as SSL SERVER, using the default port
number for that COM connection (2101 for COM1):
To annunciate the MicrAlert circuits properly using the SMS Collator running on the
Control Room Rack (10.2.3.100), an entry must be added to the SMS Collator to
collate the MicrAlert circuits:
Note that when any COM port is configured in the Collator, the
COM port configuration on the Rack to which the device is
connected MUST use the default port number for that COM port.
The default port numbers are 2101 for COM1, 2102 for COM2, etc.
