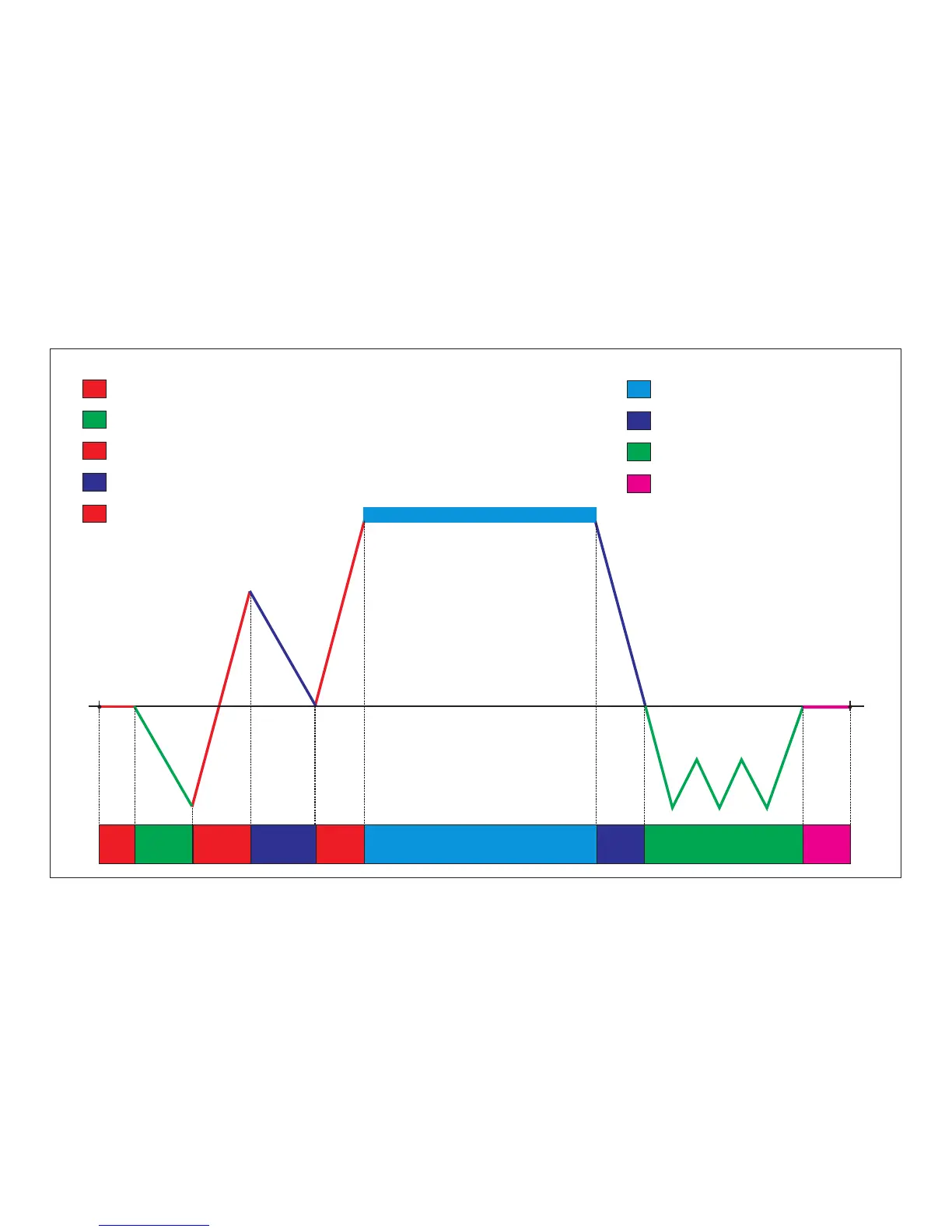

Getidy JN-23 - Each Sterilization Phase Diagram

TIME
1 2 3 4 5 10 11 12 13
10 Start sterilization stage
11 After sterilization Exhaust stage
12 Drying stage
13
and print sterilization
record stage
Balance atmospheric
ONE PRE-VACUUM
STERILIZATION PROGRAM
PROCESS SCHEMATIC
Page 28 of 58
1 Heating coil preheating stage
2 Pre-vacuum stage
3 First times Heating stage
4 Exhaust stage
5 Second times Heating stage
5.2 Each sterilization phase diagram
