5.3.2 ONE TIMES PRE-VACUUM PROGRAM（SOLID PLASTIC）

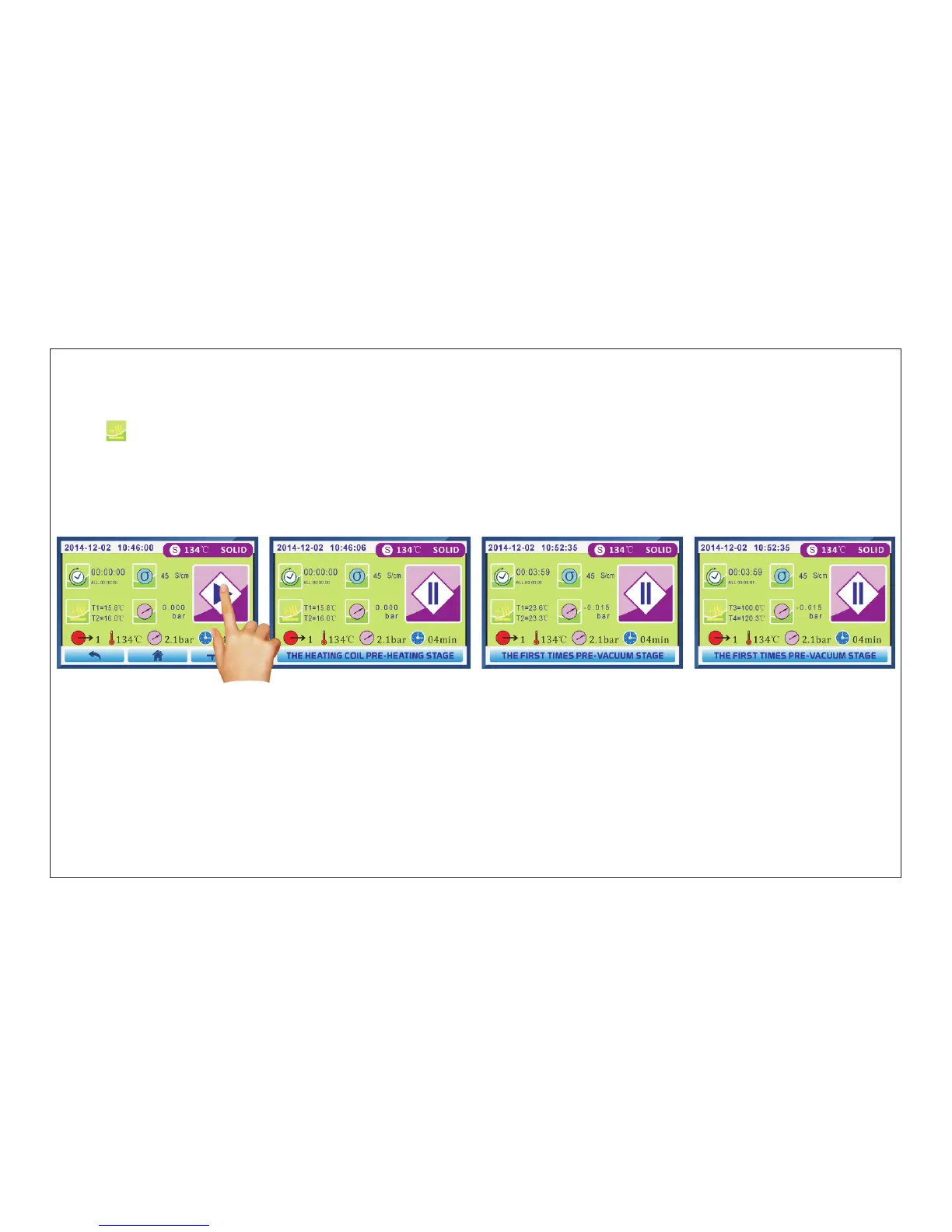

Fig.5.3-19 Fig.5.3-20 Fig.5.3-21 Fig.5.3-22
Click “start”botton of Fig.5.3-19 interface,the sterilization program starts running, shows Fig.5.3-20 or Fig.5.3-21 interface.
When temperature of heating coil(T3) rised and less than 100℃,screen will show Fig.5.3-20 interface (the heating coil pre-heating stage).
When temperature of heating coil(T3) rised and over than 100℃,screen will show Fig.5.3-21 interface (the first times pre-vacuum stage).
Click “ ”to check T3 temperature.(Fig.5.3-22)
5.3.2.1.THE FIRST TIMES PRE-VACUUM STAGE(Fig.5.3-21)
when the T3 temperature rised over than 100℃,the sterilizer will start evacuating and the control system will open the vacuum pump
solenoid valve(Ev4).LCD show “00:03:59”time countdown.If the vacuum value reaches Pv value ahead of time, sterilization
program goes into heating stage in advance.
ATTENTION:If the vacuum value of less than Pv (factory default setting Pv=-0.800bar) in “00:03:59”, there will be with alarm E12.
5.3.2.2.THE FIRST TIMES HEATING STAGE(Fig.5.3-23)
When the vacuum value reachs Pv value,the contrl system will open the water pump-solenoid valve(Ev2).The steam generator start inject the
steam into chamber,the temperatures(T1 and T2) and pressure inside the chamber will be rised at the same time.
5.3.2.3.THE FIRST TIMES EXHAUST STAGE(Fig.5.3-24)
When the pressure inside the chamber reachs 1.100bar,the control system will open the exhaust-solenoid valve(Ev1) for exhausting untill pressure
downs to P=0.000bar.LCD shows “00:01:29”time countdown.
5.3.2.4.THE SECOND TIMES HEATING STAGE(Fig.5.3-25)
When the pressure inside the chamber reaches 0.000bar,the control system will open the water pump-solenoid valve(Ev2).The steam generator
start to inject the steam into chamber,the temperature(T1 and T2) and pressure inside the chamber will be rised at the same time.
5.3.2.5.THE START STERILIZATION STAGE(Fig.5.3-26)
When the temperature inside chamber reaches ,the control system will start sterilizing.LCD shows
“sterilization time”countdown.
134℃( ) or 121℃( ) SOLID PLASTIC
