Page 08 of 58

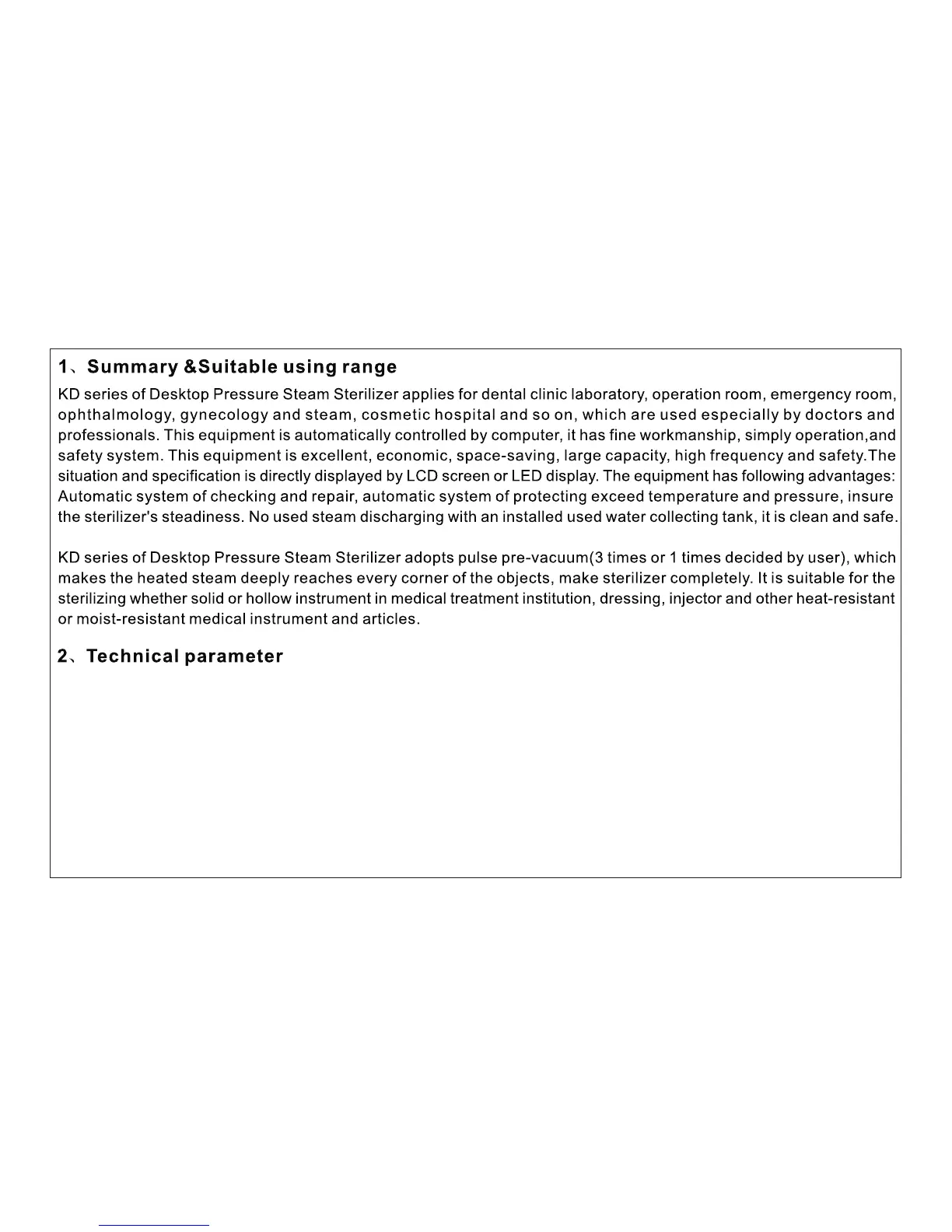

CLASS: B and S

POWER SUPPLY VOLTAGE: AC 230V 10%

MAINS FREQUENCY:50~60Hz

POWER OUTPUT: 1600W

CHAMBER: 23L

DIAMETER x DEPTH: 250mmx450mm

ABSORBED CURRENT: 10A

STERILIZATION CYCLES: 6

TEST CYCLES: 3

CAPACITY OF CLEAN-WATER TANK: 4.5L

CAPACITY OF USED-WATER TANK: 3.5L

GROSS WEIGHT: 65Kg

NET WEIGHT: 59Kg

PACKING SIZE(LxWxH):730mmx580mmx560mm
