Getidy JN-23 - APPENDIX 3:Positioning the Load

59 pages

Save Page as PDF

To Next Page

To Previous Page

Page 47 of 58

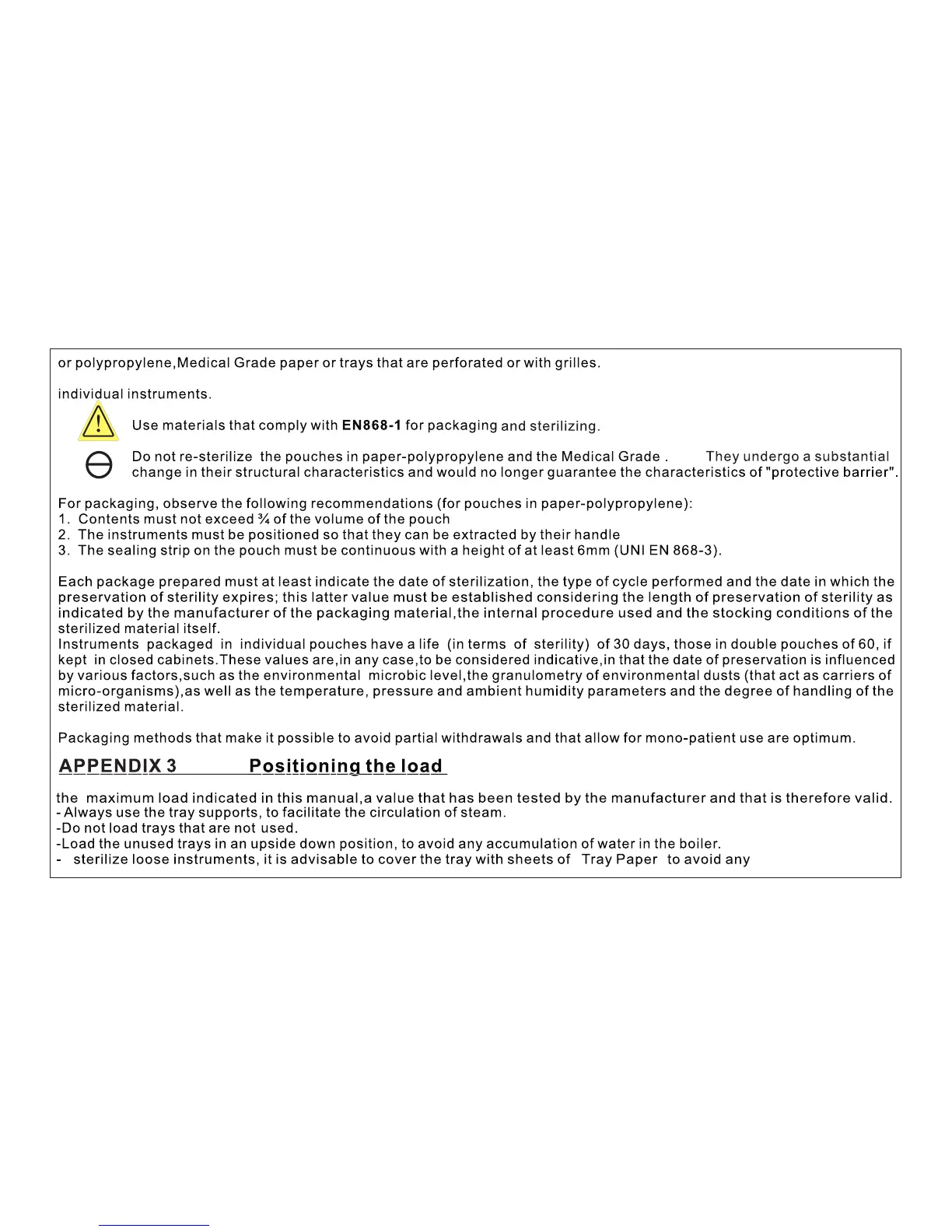

Pouches with paper-polypropylene are excellent packageing systems of steam sterilizing for small sets of surgical instruments and

The way how to load to sterilize is arranged is also important to the sterilization process .Always observe condiderably

( )
