Getidy JN-23 - The Start Sterilization Stage; The Three Times Pre-Vacuum Stage; The Three Times Heating Stage; The Second Times Exhaust Stage

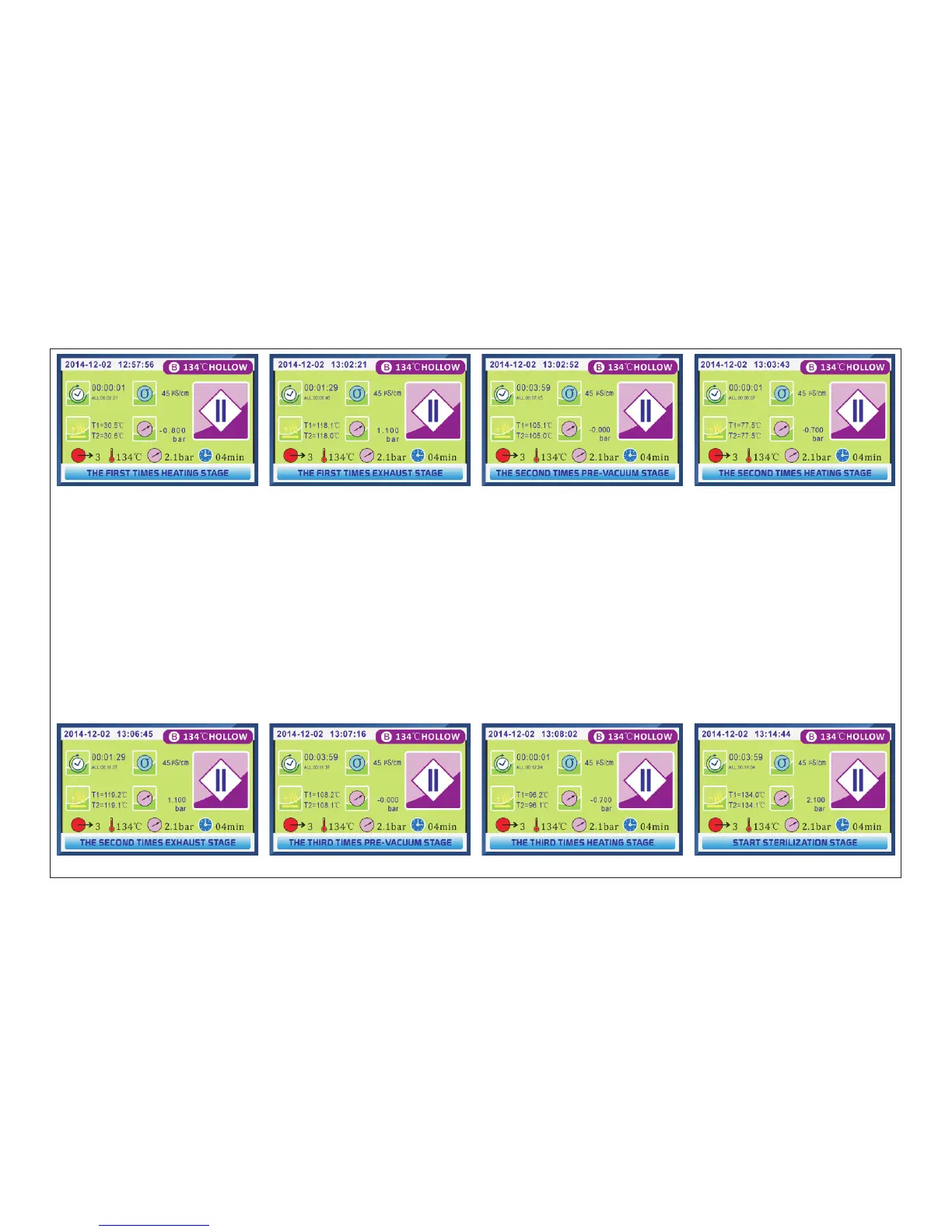

Fig.5.3-5 Fig.5.3-6 Fig.5.3-7 Fig.5.3-8
When the vacuum value reaches -0.700bar value,the control system will open water pump-solenoid valve(Ev2) and steam generator start to
inject the steam into chamber.The temperatures(T1 and T2) and pressure inside the chamber will be rised at the same time.
5.3.1.6.THE SECOND TIMES EXHAUST STAGE(Fig.5.3-9)
When the pressure inside the chamber reaches 1.100bar,the control system will open the exhaust-solenoid valve(Ev1) for exhausting untill pressure
downs to P=0.000bar.LCD shows “00:01:29”time countdown.
5.3.1.7.THE THREE TIMES PRE-VACUUM STAGE(Fig.5.3-10)
When the pressure inside the chamber downs to 0.000bar,the control system will open the vacuum pump-solenoid valve(Ev4) and start evacuating.
LCD show “00:03:59”time countdown.when the vacuum value reaches -0.700bar ahead of time, sterilization program goes into heating stage in advance.
Fig.5.3-9 Fig.5.3-10 Fig.5.3-11 Fig.5.3-12
5.3.1.8.THE THREE TIMES HEATING STAGE(Fig.5.3-11)
When the vacuum value reaches -0.700bar value,the control system will open water pump-solenoid valve(Ev2) and steam generator start
inject the steam into chamber.The temperatures(T1 and T2) and pressure inside the chamber will be rised at the same time.
5.3.1.9.THE START STERILIZATION STAGE(Fig.5.3-12)
When the temperature inside chamber reaches ,the control system will start sterilizing.
LCD shows “sterilization time”countdown.
134℃( ) or 121℃( ) HOLLOW PRION COTTON
Page 31 of 58
