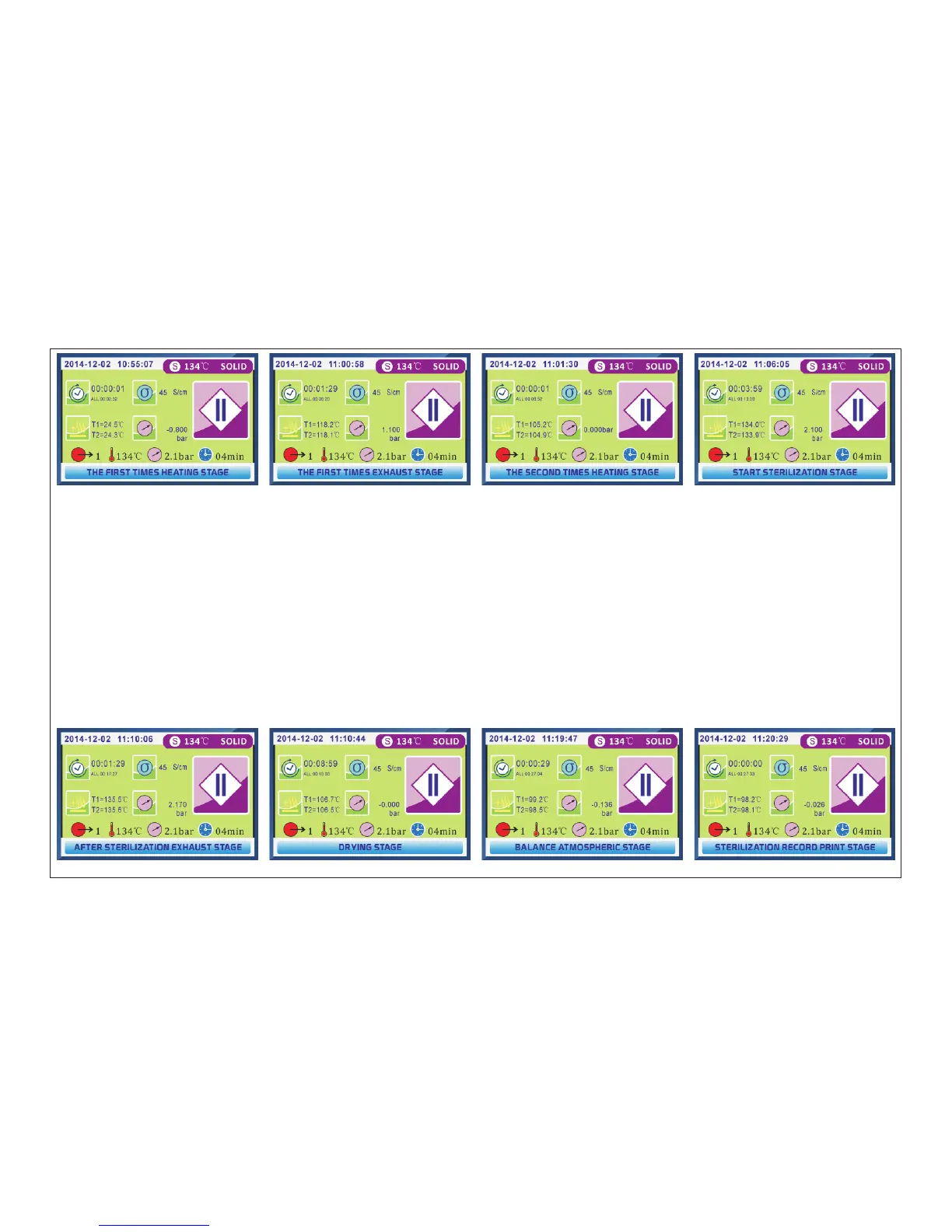

Fig.5.3-27 Fig.5.3-28 Fig.5.3-29 Fig.5.3-30
Fig.5.3-23 Fig.5.3-24 Fig.5.3-25 Fig.5.3-26
5.3.2.10.AFTER STERILIZATION EXHAUST STAGE(Fig.5.3-27)
When the “sterilization time”countdown is over,the control system will open the exhaust-solenoid valve(Ev1) for exhausting untill pressure
downs to P=0.000bar.LCD shows “00:01:29”time countdown.
5.3.2.11.DRYING STAGE(Fig.5.3-28)
When the pressure inside the chamber downs to 0.000bar,the control system will open the vacuum pump-solenoid valve(Ev4) and evacuating
and drying.LCD shows “00:08:59”time countdown.
5.3.2.12.BALANCE ATMOSPHERIC STAGE(Fig.5.3-29)
When the vacuuming and drying is over(the “00:08:59”time countdown is over).The control system will open the air-solenoid valve(Ev3) to balance
the pressure between in chamber and atmospheric.lcd shows “00:00:29”time countdown.
5.3.2.13.STERILIZATION RECORD PRINT STAGE(Fig.5.3-30)
After the balance atmospheric is over,the vacuum pump will be stoped.the control system will transfer sterilization report to external mini-printer and
U disk.
5.3.2.14.STERILIZATION EVALUATION STAGE(Fig.5.3-31 OR Fig.5.3-32)
When the sterilization working is over,the control system will evaluates the sterilization results(“PASS”or “FAILURE”).
Page 34 of 58
