Page 17

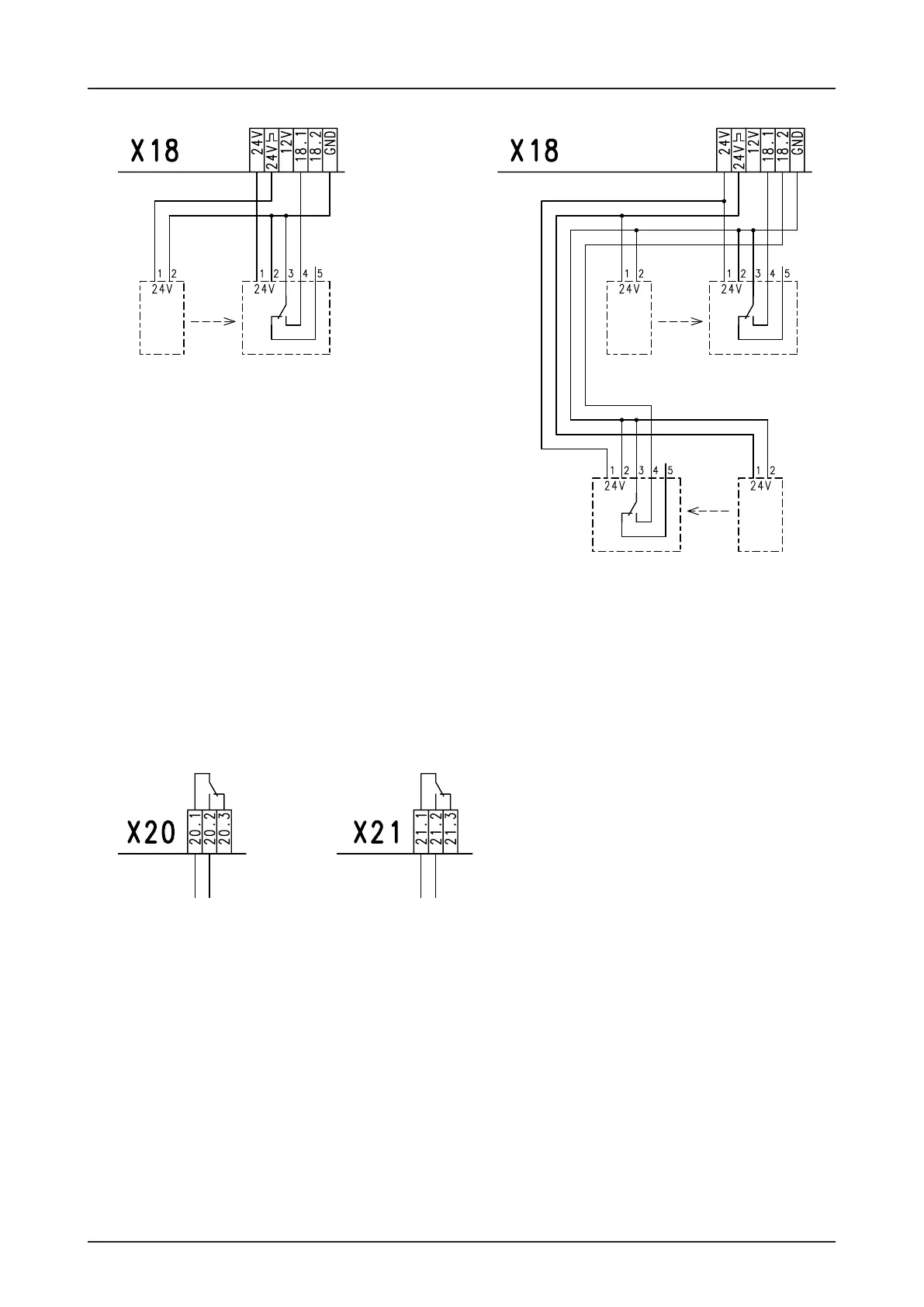

WIRING DIAGRAM
Potential free
relay contact
Potential free
relay contact
photo-beam
single,
against entrapment
comply EN 12978
Transmitter - Receiver
Receiver - Transmitter
photo-beam
double,
against entrapment
comply EN 12978
Transmitter - Receiver
or
