CONNECTING THE CONTROL AND THE ELEKTROMATEN
®
The Control panel TS 981 has a universal electric supply and works with the following
supplies. (See diagram Fig.1-5)
The supply disconnect device (Main switch or CEE plug) must be installed between 1,2 m
and 1,7 m above oor level.

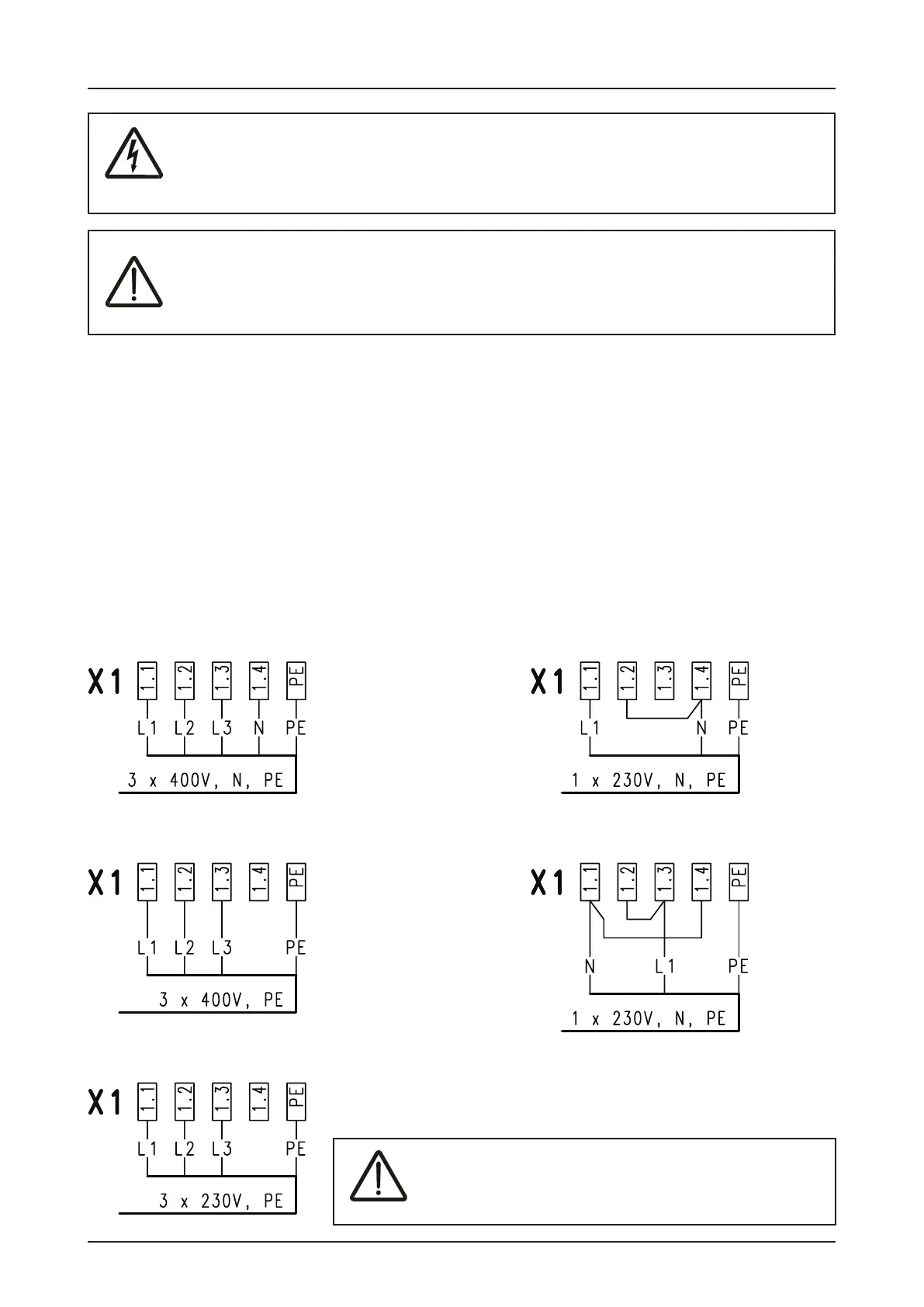

Mains supply terminal
Fig.: 1
Fig.: 2
Fig.: 3
Fig.: 5
Fig.: 4
asymmetric winding
symmetric winding
MAINS SUPPLY
External fuse!
Control must be saved against short circuit and overload by an external fuse,
max. 10 A delayed, in the mains supply. An automatic cut o switch is required,
regarding the supply for three-phase or single-phase.
When connecting control to mains supply a mains isolator switch or (16 A CEE – plug)
according EN 12453 is required. The control panel has an integrated auto controlled power
unit for voltages from 230 V up to 400 V +/- 10 %.
DI = 3 x4 00 V
FI 1,5 kW = 1 x 230 V/N/PE or 3 x 400 V/N/PE
FI 4,5 kW = 3 x4 00 V/PE or 3 x 400 V/N/PE
DANGER! To the life and health through electric shock.
If a GfA frequency drive FI is installed, it must be used a class B earth-leakage
circuit breaker in the mains supply. Other switches can fail and switching
unintentionally.
