MDE-5222F

SECTION 4 - INSTALLATION

For Encore 500: Use M00491A001 to connect P303 to P1109 on the pump node two-wire input.

For Encore 300: Use M12852A002 to connect P303 to the pump two-wire input.

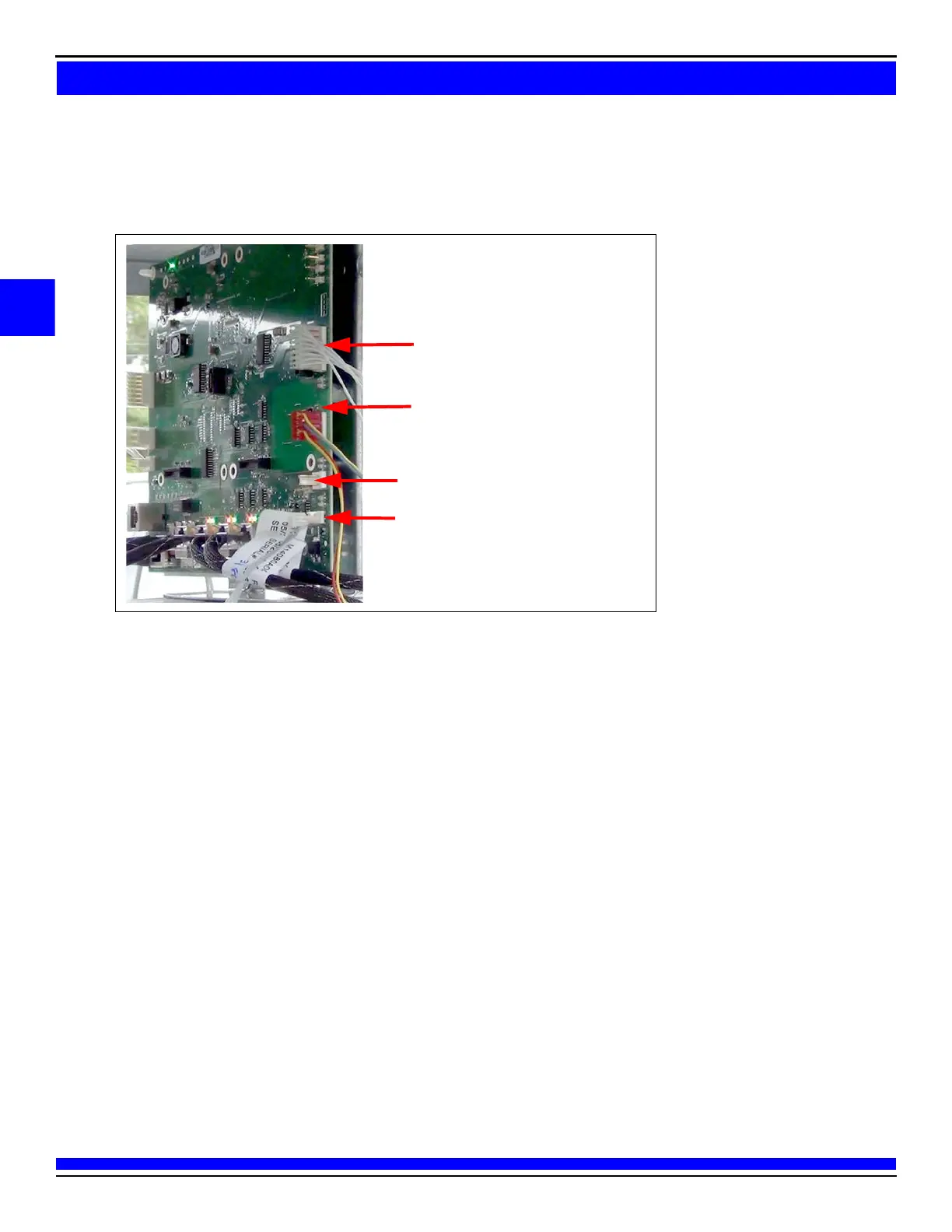

Figure 20: Connecting CRIND Two-wire Cable from Pump Logic Board to AFP/DCM2 Board

P300, To CRIND and pump two-wire. For

Applause Media System, pump two-wire

must be connected to P300 and then

through P303.

P 302B, To Side B door

P306B, To 24 V Output Connector

P303, To Pump Two-wire Output to Pump
