SECTION 6 - APPENDICES

MDE-5222F

Appendix C: Verifying Cable Connections

Cable Connections on Display Assembly

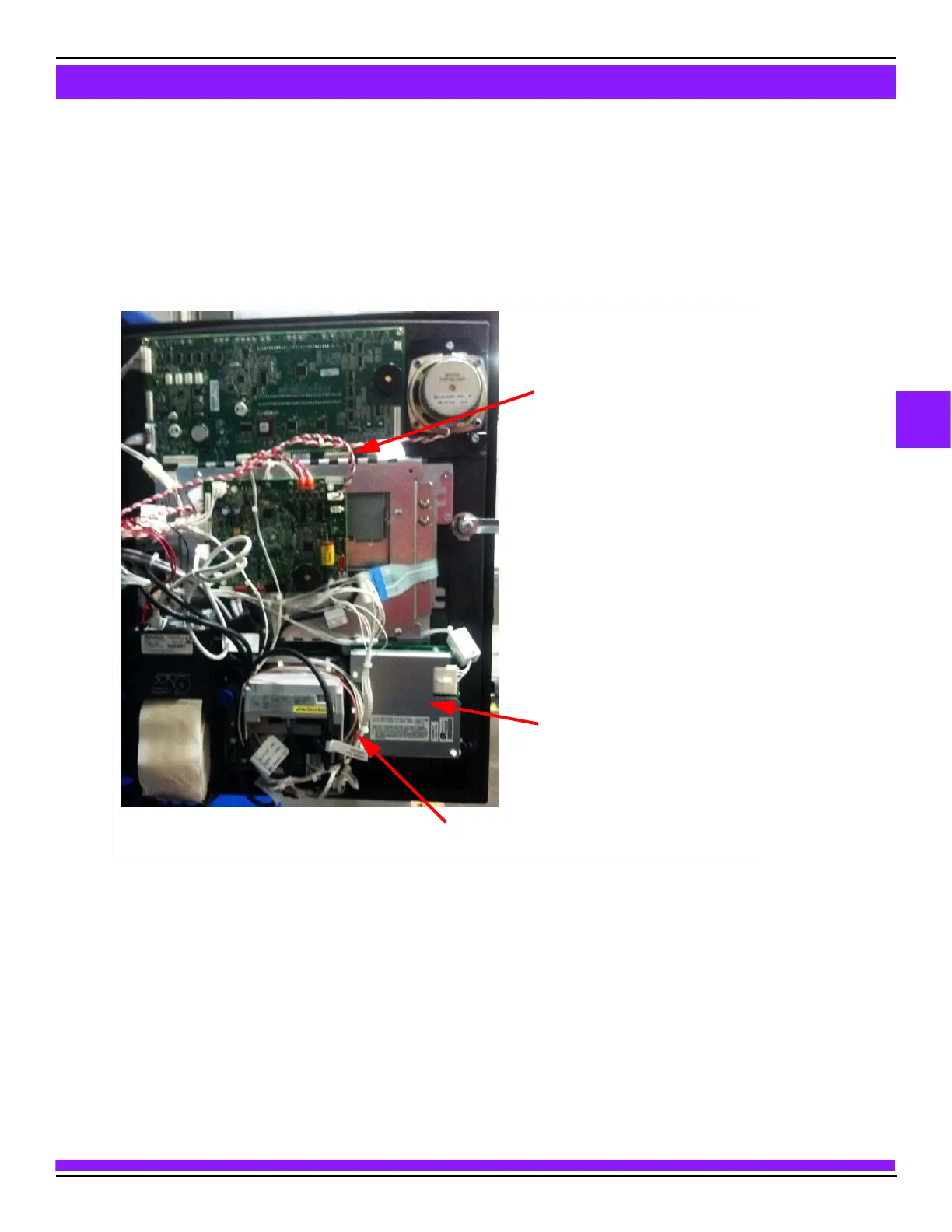

Figure 10 shows the cable connections on the display assembly.

Figure 10: Cable Connections on Display Assembly

In this example, the intercom option is

present, so the speaker connections

are bypassing PIP3, and are routed to

the intercom interface board.

TRIND option. Ensure that the wires

remain on this side of metal shield.

Ensure that the cables are routed over the

card reader to prevent getting caught.
