MDE-5222F
42
Completing Installation
To complete installation:
1 Inspect all the connections and cable r
outing before applying power.
For FlexPay IV CRIND Retrofit Kits, new printers are included and preassembled with the retrofit CIM door
for Encore 300 and in some cases for Encore 500. For block diagrams, refer to “Appendix B: Block Diagrams”
on page 53. If the existing printer is reused, a new Printer Bezel Bracket (M12708B003) will need to be
installed on the new CIM door using the existing hardware.
Using the ground ring terminal provided with the Printer Ground Cable (M06745A001), connect the printer
ground cable to the Computer Display (CD) module ground bracket as shown in Figure 26 and connect the
other end of the cable as shown in Figure 27 (i) on page 43.
Note: Route ground cables separate from other cabling.

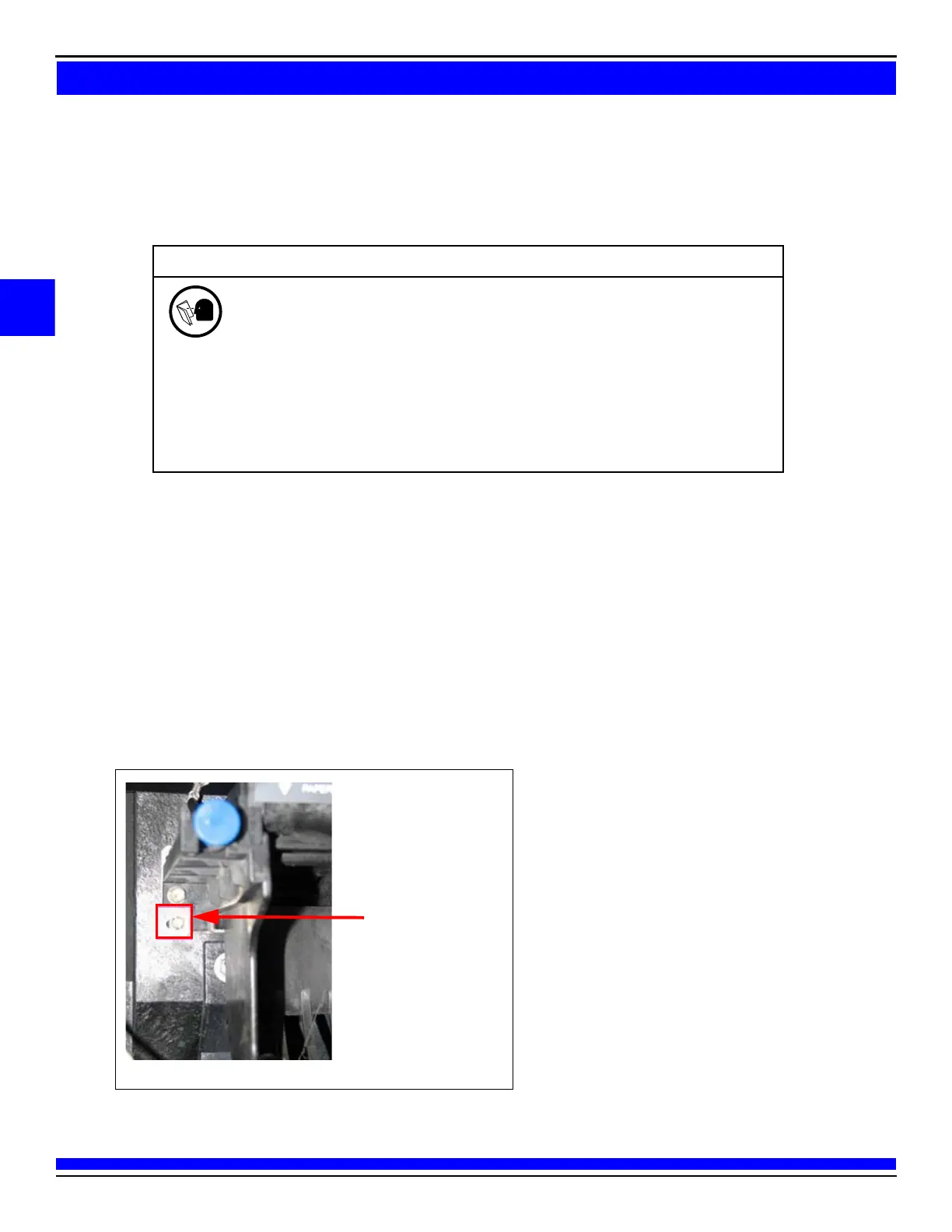

Figure 26: Connecting Printer Ground Cable
Printer Grounding Screw
Cable Grounding on the Printer Side
Cable routing is critical. It is very important to route and dress the cables
properly. Exercise care in routing the cables, keeping in mind that the door(s)
opens and closes for service. The cables must be dressed neatly. Ensure that
there is no interference after the cables are connected and routed.
ESD ground straps can be bundled together, but need to be separated from
data and power cables.They should be fastened to the U-channel with separate
bolts [see Figure 27 (ii) on page 43].
After making all cable connections, close the main door and open the printer
door. Pull the sliding printer tray and ensure that there is no cable interference.
IMPORTANT INFORMATION
