SECTION 4 - INSTALLATION

MDE-5222F

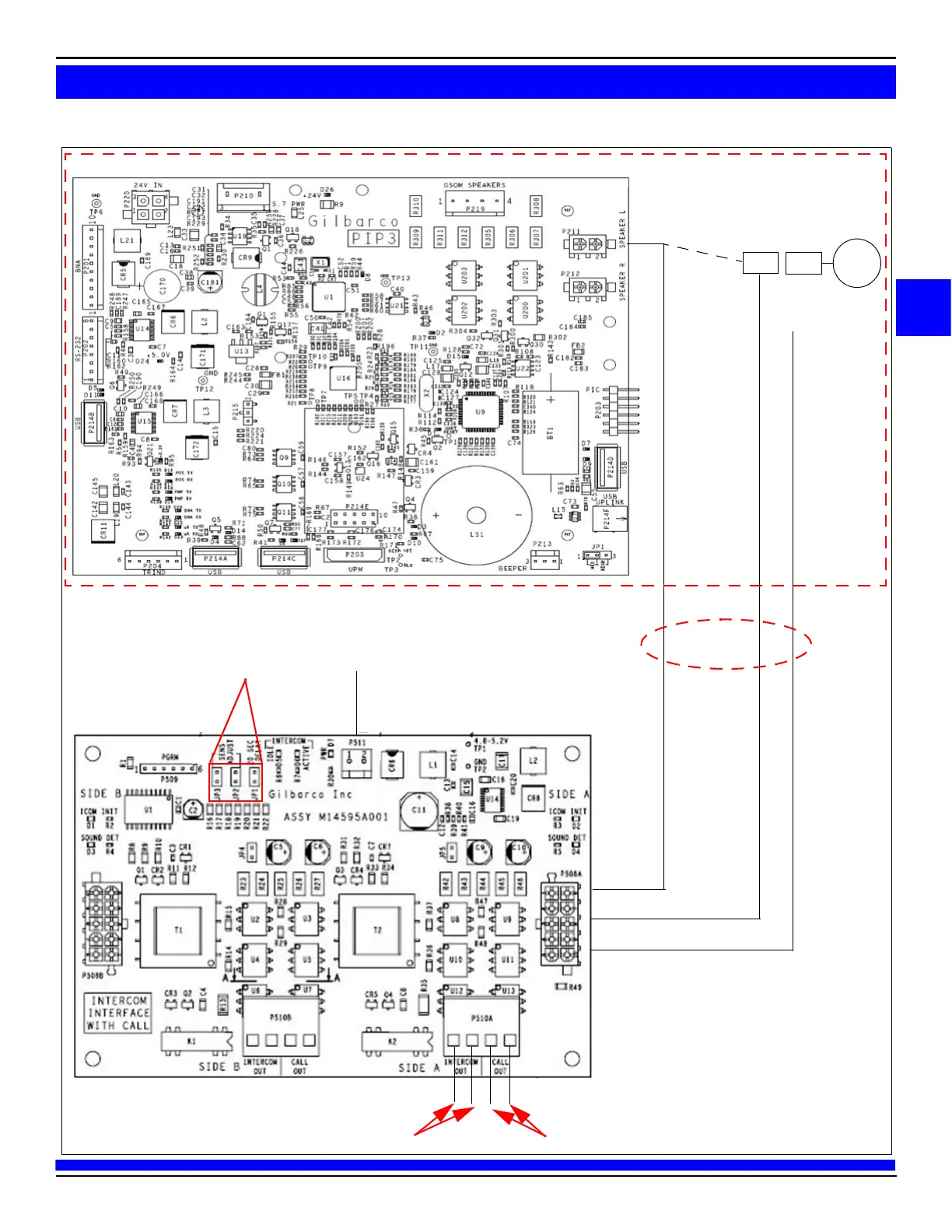

Figure 25: Connections between PIP3 PCA (M13987A00X) and M14595A001 Intercom Board

To P306A or P306B

on AFP or DCM2

M14763A001

Jumpers to adjust 

sensitivity or increase

customer talk time

Note: Repeat same connections for side B.

Field Wiring for Intercom Audio

Field Wiring for Call Button

Speaker

To Membrane

Call Button

M14763A001

for Side A

Disconnect speaker

from the PIP3 board

and connect to

M14763 Cable.

Located on Doors
