13
SECTION 3 - REMOVING COMPONENTS
MDE-5222F
Monochrome or FlexPay II CRIND (Encore 500 Only)
CCN or HIP Assembly
To remove the CRIND Control Node (CCN) assembly:
1 Disconnect all the cables from the old assembly.

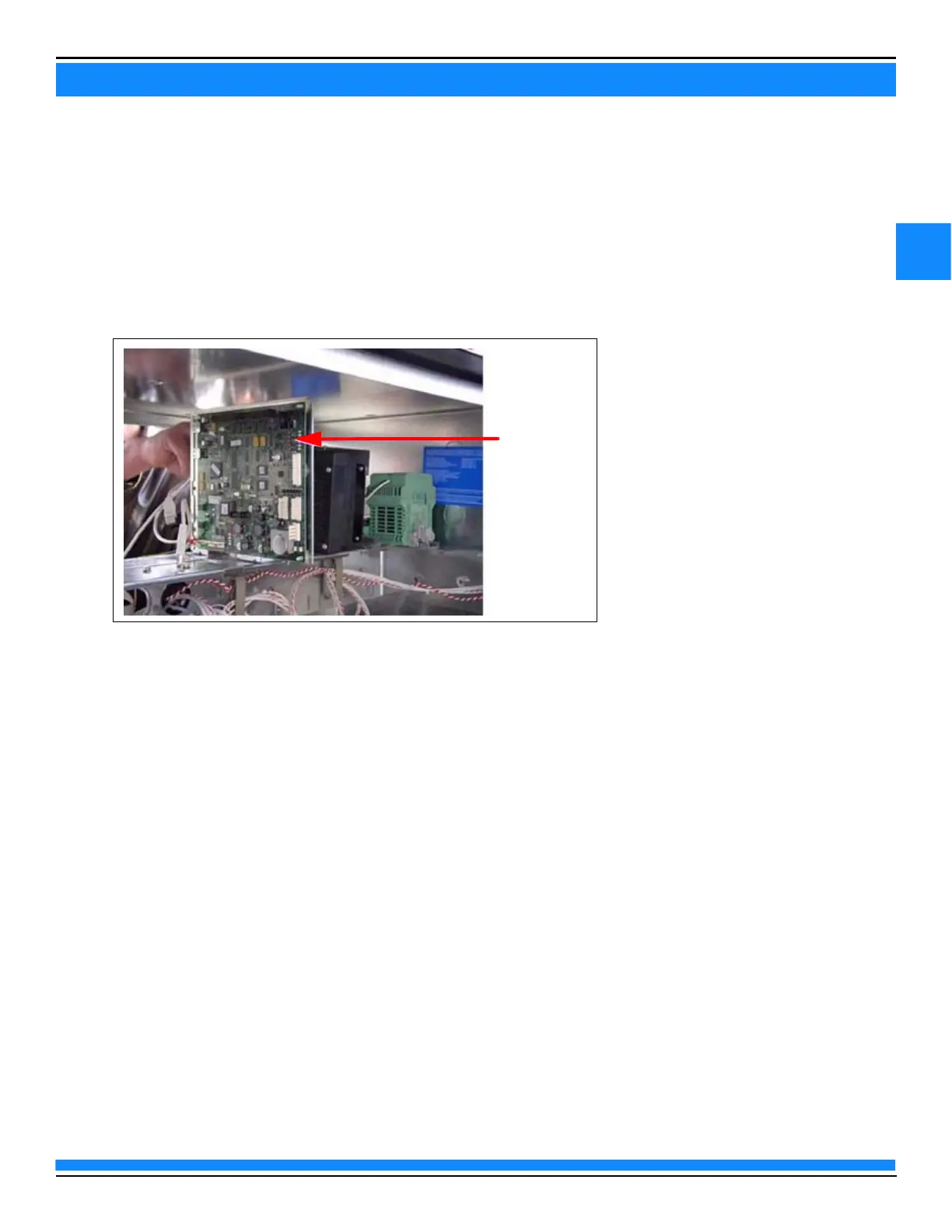

Figure 6: CCN Assembly
2 Remove the old assembly by removing the three 7-mm nuts located at the bottom of the mounting
bracket (see Figure 6).
3 If the old assembly was a CCN, remove the short Local Operating Network (LON) cable from the Pump
Control Node (PCN). At this point it is disconnected, as it used to connect to the CCN. Locate the long
disconnected LON cable going to the door node. Connect it to the PCN.
