SECTION 6 - APPENDICES
6
MDE-5222F
Appendix A: Peripheral Options
Cabinet Heater
Note: The cabinet heater is optional for both 5.7- and 10.4-inch displays.
To install the cabinet heater:
1 Insert the tab on the heater onto the top rail in the unit (see Figure 1).
2 To secure the heater, put a nut on the other side of the stud and tighten it.
For more information, refer to MDE-4609 Heater/Fan Kit (M07333K00X) Installation Guide for 
Encore 300/The Advantage Series [with FlexPay EMV (Canada Only)] and Encore S/Encore 500 Units.
Note: This manual is included in the kits that have a heater.

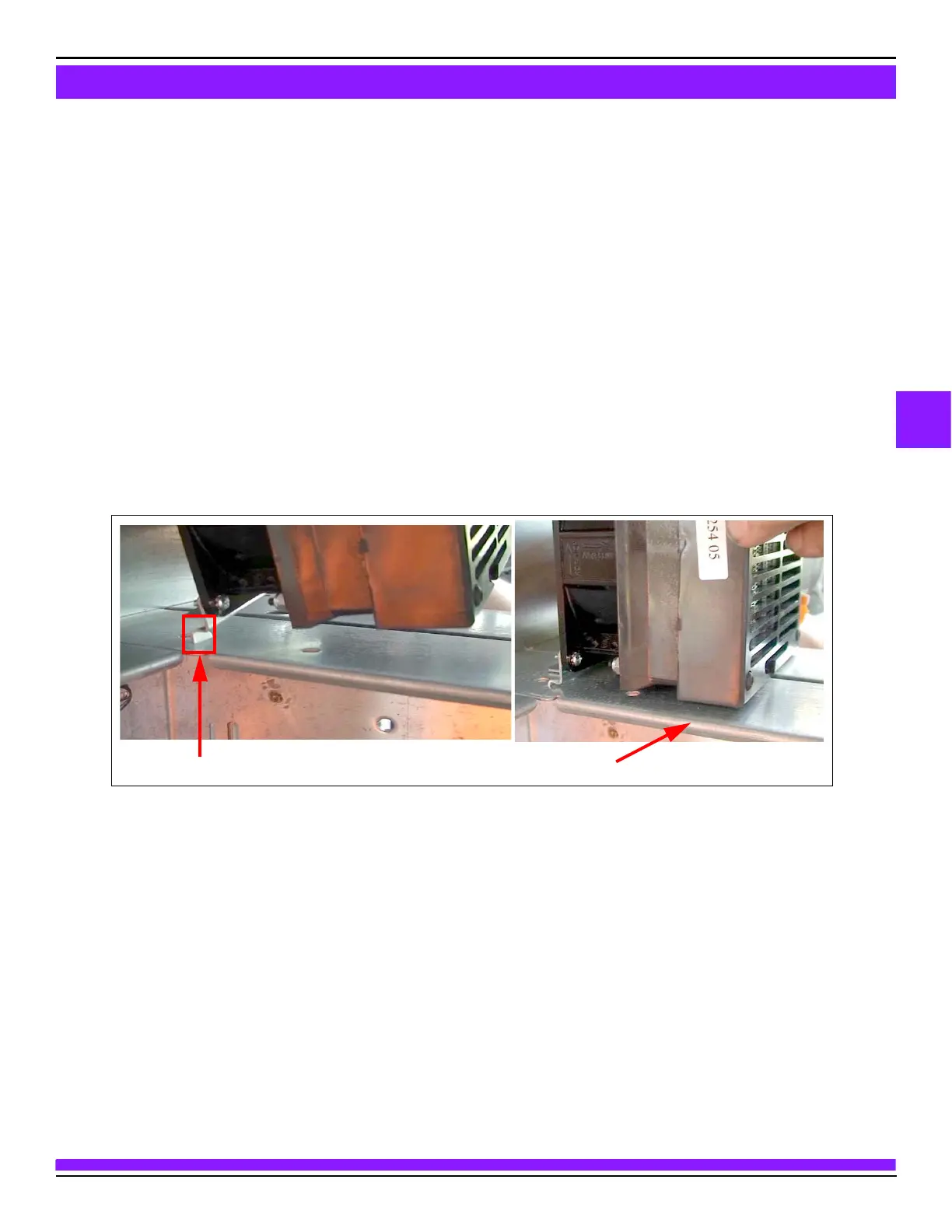

Figure 1: Installing Cabinet Heater
(i)
(ii)
Tab on Heater Assembly
Unit Top Rail
Note: If a UPM Keypad Heater Power Supply Assembly (M07953A006) is ordered, there is a separate “heater
cable harness” that intercepts the normal UPM power harness to also supply power to the UPM
heater. For more information, refer to MDE-4736 FlexPay EPP Heater Kit (M08631K001) and Card
Reader Heater Installation Instructions.
