Gilson Minipuls 3 - Rear Panel

Rear Panel
GSIOC
Fan
Power
on/o
switch
Contact
input port
DC
input
USB
device
Figure 4
Rear Panel

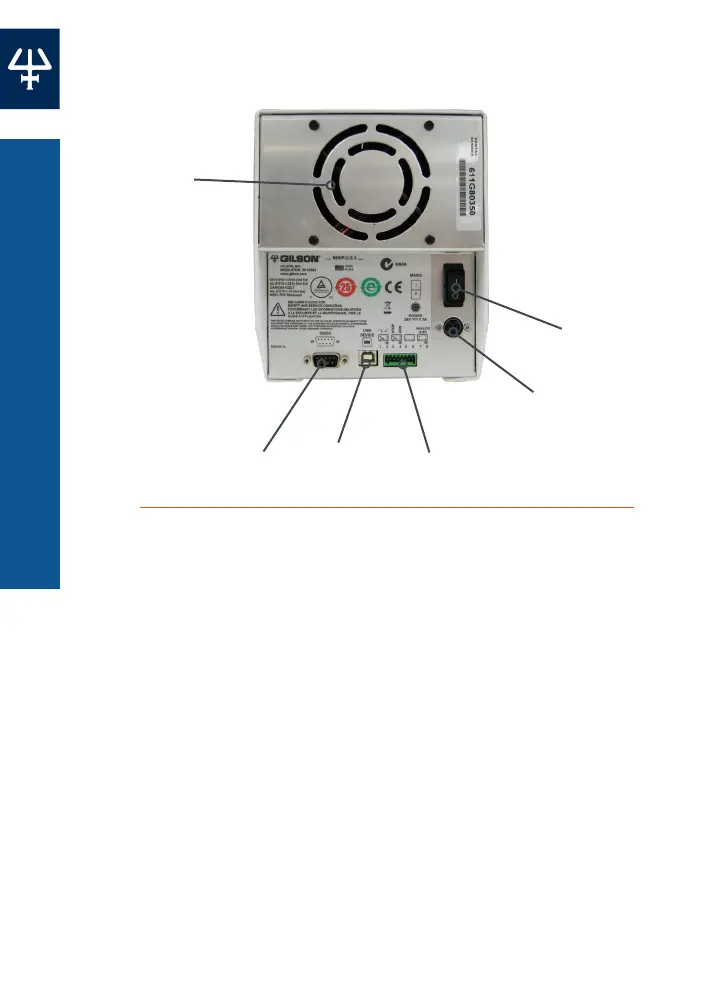

The rear panel consists of:
• a power on/off switch
• a DC input
• a fan
• a contact input port
• a 9-pin GSIOC port
• a USB device port (for service use only)
14
SPEED CONTROL MODULE | MINIPULS® 3 PERISTALTIC PUMP
SPEED CONTROL MODULE
