Safety Cover Installation

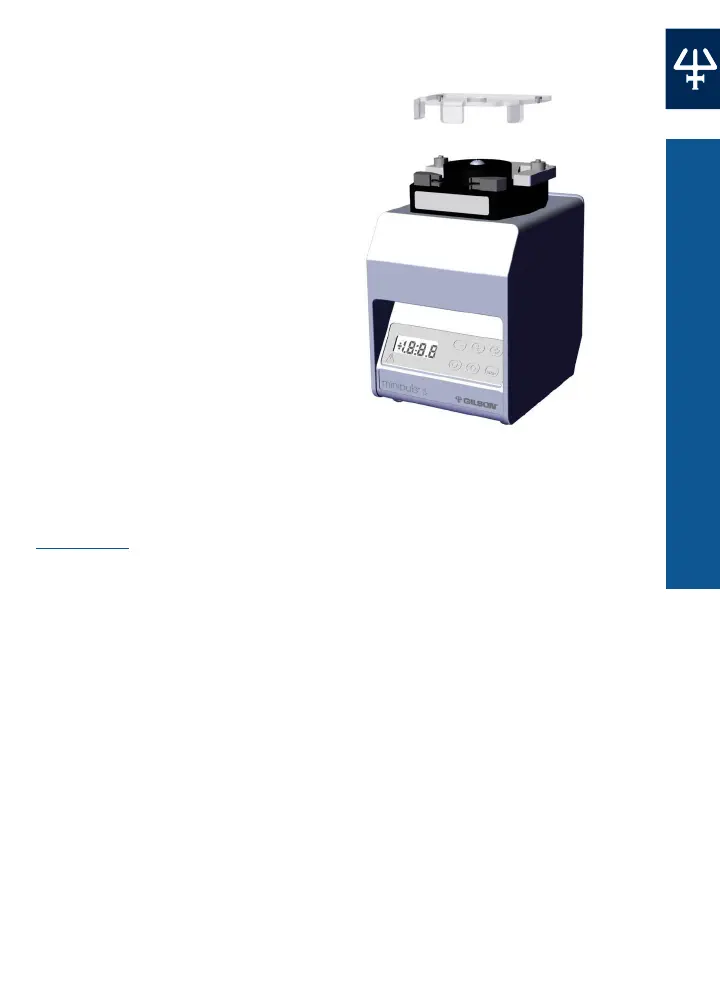

1 Place the cover.
2 Align the screws with their
inserts as shown in the image at
right.
3 Tighten the screws.
Flow Rate Selection and
Adjustment
Selection
The following charts may be used
to
select the approximate pump
head speed
(rpm) that is required to
achieve the desired flow rate.
If it is possible to choose between tubings of different sizes (refer to
APPENDIX), select a middle range tubing that gives a middle range
speed.
Adjustment
Adjust the cam pressure on the tubing to the minimum necessary to
ensure pumping of the liquid. The compression cam pressure can be
adjusted using the adjustment screw.
Slowly tighten the screw until the pump starts pumping liquid inside
the peristaltic tubing, and then tighten again approximately 1/8
turn. Take care not to over-tighten the screws; it is advisable to limit
pressure on tubing to the minimum necessary for pumping liquid.
Carry out final adjustment after 15 minutes of operation.
33
MINIPULS® 3 PERISTALTIC PUMP | USER'S GUIDE
SAFETY COVER INSTALLATION
