Peristaltic Tubing without Retaining Stops
Adjustment
screw
Locking
key
Movable retaining
bar
Fixed
bar
Trigger key

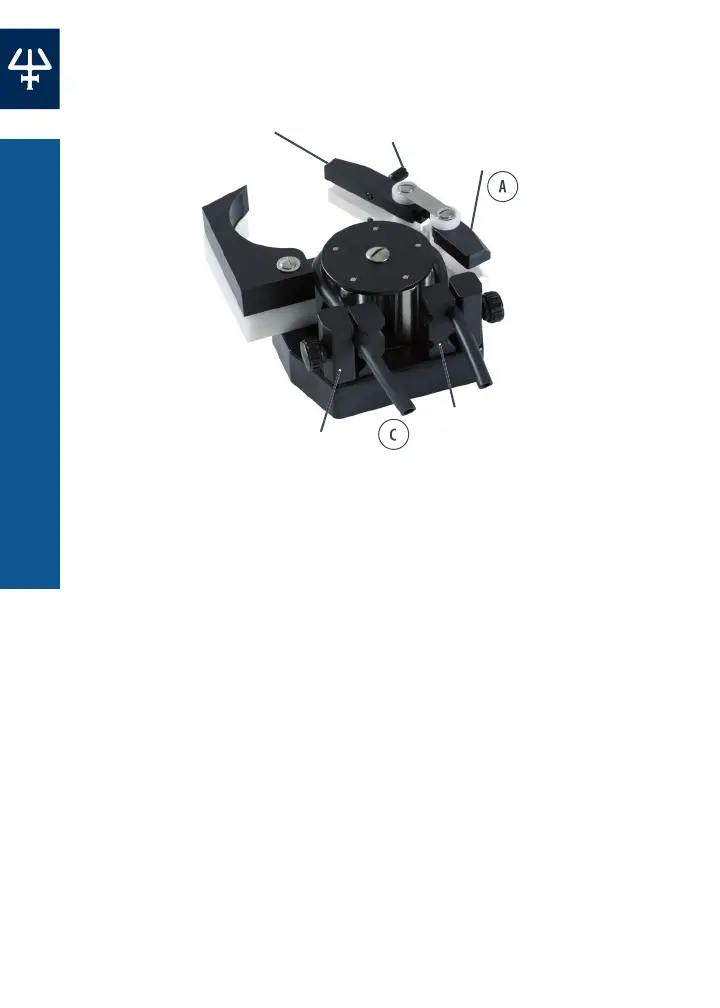

The peristaltic tubing is kept in place by clamps. The movable
retaining bar (C) must be fitted in such a way that the large triangular
pathways are on the side of the fixed bar. To fit the tubing, use the
same procedure as above.
Because the R2/HF and R4/HF pumps are equipped with 5 rollers
rather than the 10 rollers as on the other heads, pulsations may be
observed at the end of the tubing.
