MP PUMP HEADS

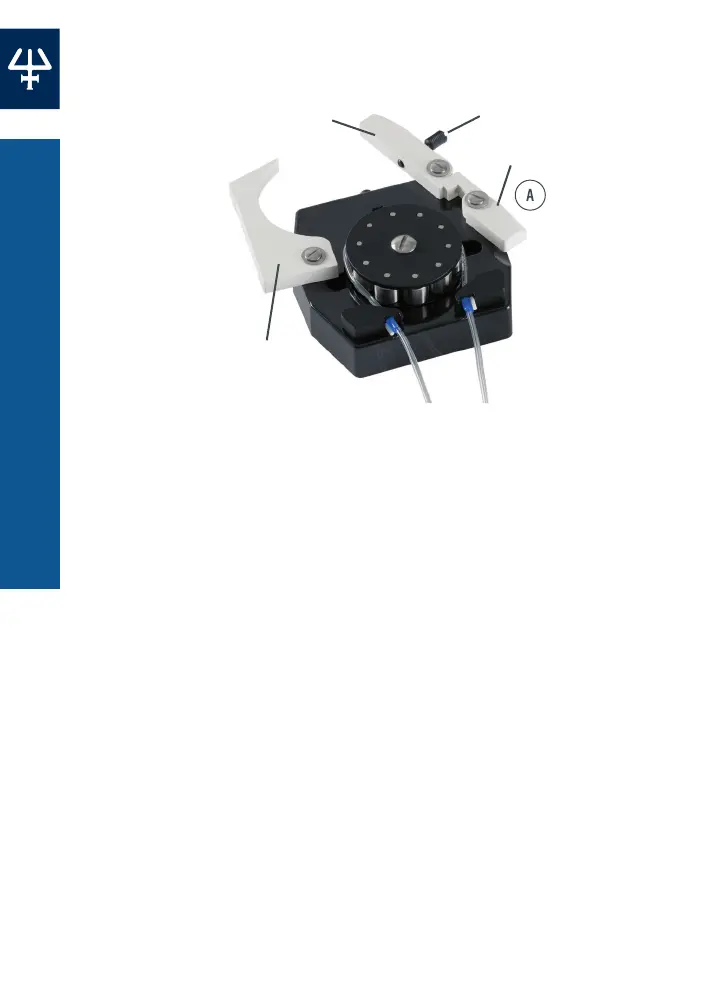

Adjustment screw
Locking key
Compression
cam
Trigger key
Only peristaltic tubing with retaining stops can be fitted to MP pump
heads.
1 Unlock each channel of the head by pressing the trigger key (A)
towards the roller barrel.
2 Position the tubing around the rollers; it is kept in place by the
plastic stops (B).
3 Swing the compression cam back and snap the locking key. Do
this one-by-one for pump heads with more than one channel.
