Gima CONTEC CMS 8000 - Page 177

7
1
T1: Socket for channel 1 TEMP probe
2
SpO
2
: Socket for SpO
2
sensor
3
ECG: Socket for ECG cable
4
NIBP: Socket for NIBP cuff
5
T2: Socket for channel 2 TEMP probe
6
IBP/CO
2
: IBP or CO
2
interface
Note: [6] and [7] can not be connected to a function
at the same time; if connected, only the earlier
connection is recognized.
7
IBP/CO
2
: IBP or CO
2
interface
8
Option: reserved interface
9
Battery cover
10
Recorder

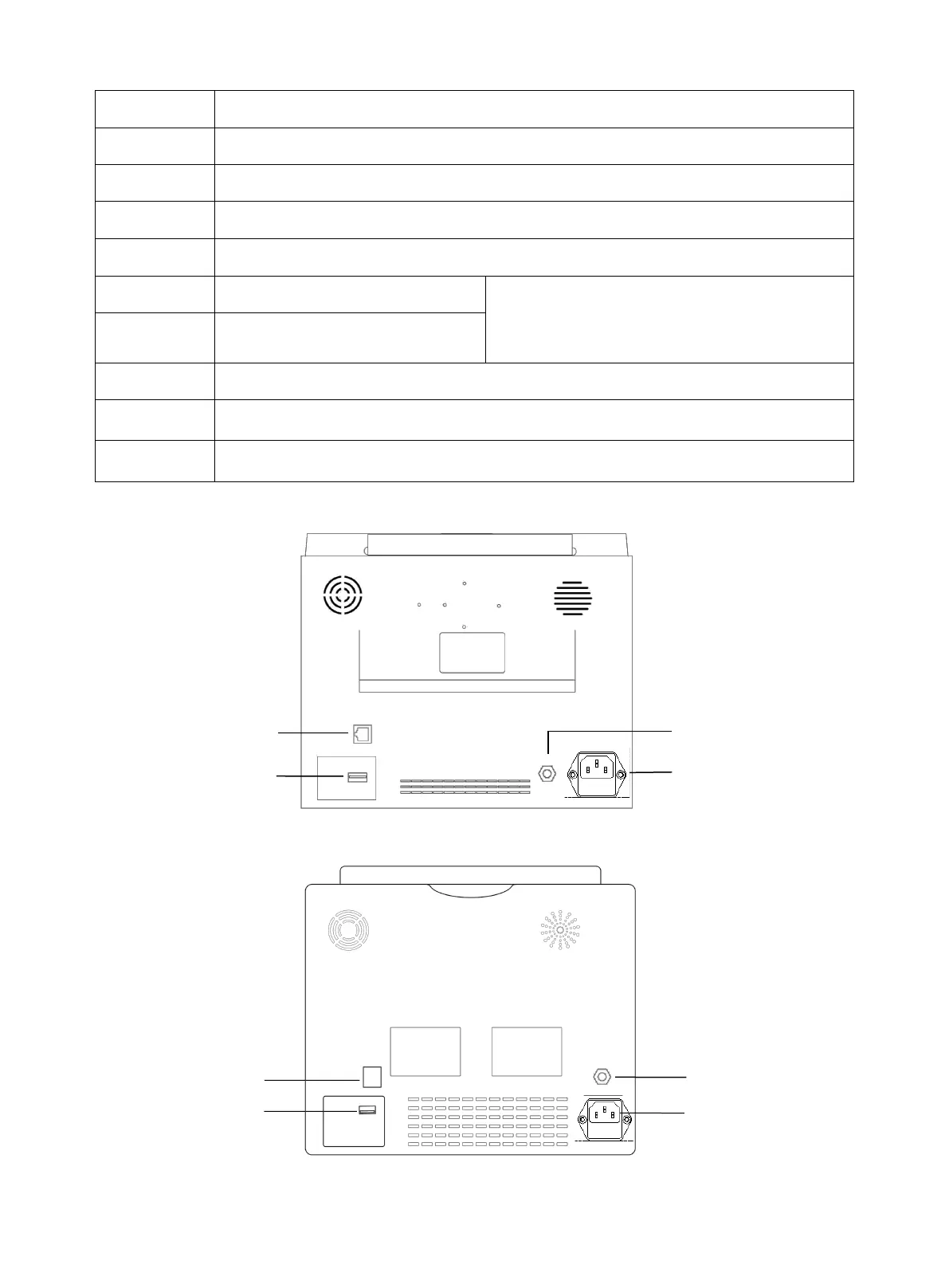

Rear view
CMS7000
CMS8000
1
2
3
4
2
4
3
1
