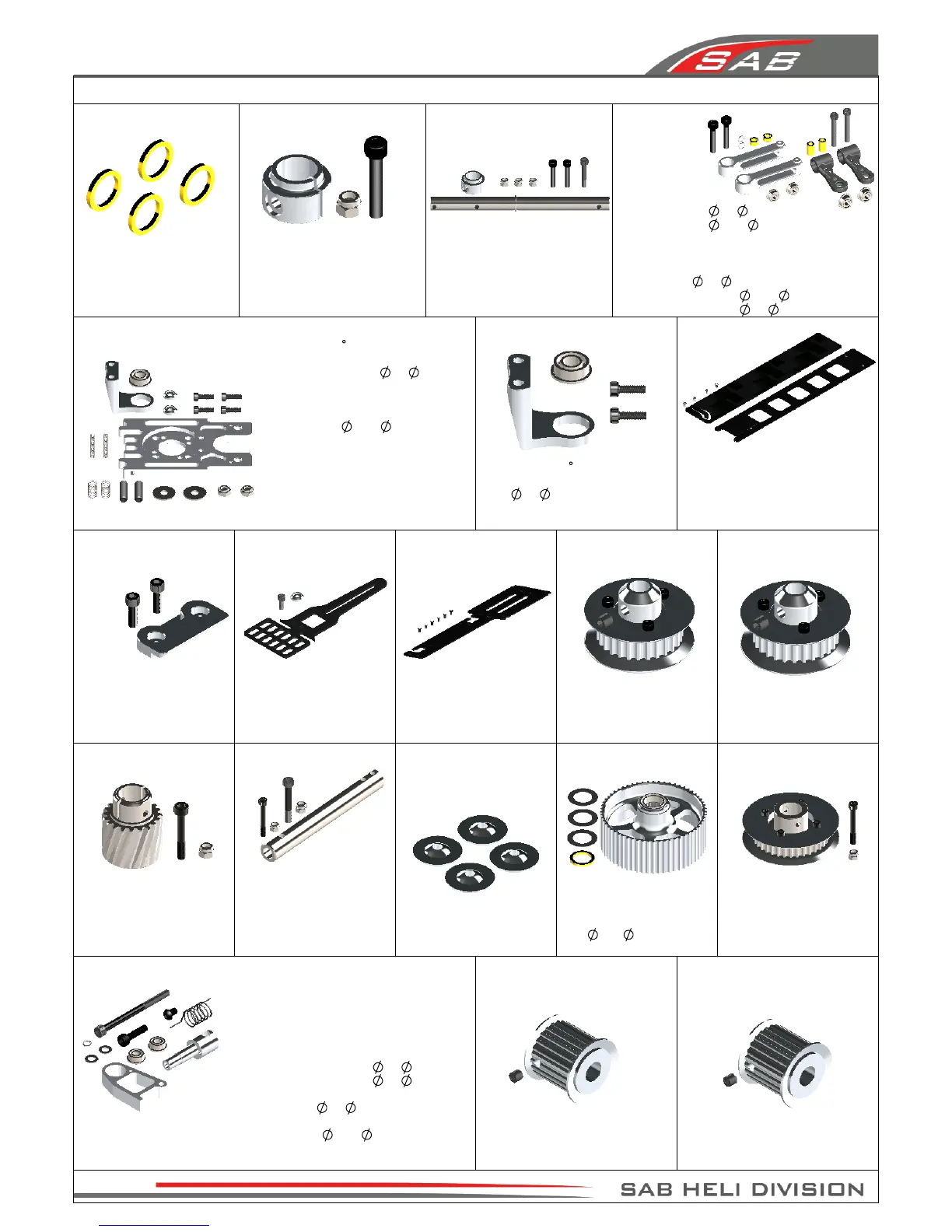

24T Tail Pulley
[H0154-S]
Bush One Way
[H0110-S]
- 4 x Bush One Ways.
M4 Locking Collar
[H0121-S]
- 1 x M4 Locking Collar.
- 1 x Socket Head Cap Screw
M4x22mm.
- 1 x Metric Hex Nylon Nut M4.
- 1 x Main Shaft.
- 1 x M4 Locking Collar.
- 1 x Socket Head Cap Screw
Shouldered M4x24mm.
- 2 x Socket Head Cap Screws
M4x22mm.
- 3 x Metric Hex Nylon Nuts M4.
Main Shaft
[H0127-S]
Radius Arm
[H0132-S]
-2 x Radius Arms.
-2 x Spacer Arm
3x
5x2.7mm.
-2 x Spacer Arm
2.5x
4x6.3mm.
-2 x Uniball Radius Arms.
-2 x Socket Head Cap Screws M3x16mm.
-2 x Socket Head Cap Screws M2.5x18mm.
-2 x Washers
3x
4x0.5mm.
-2 x Flanged Bearings
2.5x
6x2.5mm.
-2 x Flanged Bearings
3x
7x3mm.
- 1 x Center Hub.
- 1 x Socket Head Cap Screw
Shouldered M4x24mm.
- 1 x Metric Hex Nylon Nut M4 H5..
- 2 x Socket Head Cap Screws
M3x12mm.
Center Hub
[H0135-S]
Motor Mount
[H0142-S]
- 1 x Bearing 3
Support.
- 1 x Motor Support.
- 1 x Flanged Bearing
6x
13x5mm.
- 2 x Socket Head Cap Screws
M3x8mm.
- 2 x Set Screws M5x20mm.
- 2 x Washers
5.3x
15x1mm.
- 2 x Metric Hex Nylon Nuts M5H4.8.
- 2 x Finishing Washers M3.
- 2 x Socket Head Cap Screws
M3x10mm.
- 2 x Metric Hex Nylon Nut M3 H4.
- 2 x Springs de 5.8/ df0.5 / LL9.
- 2 x Springs de 3/ df0.5 / LL12.
Bearing Support
[H0143-S]
- 1 x Bearing 3
Support.
- 1 x Flanged Bearing
6x
13x5mm.
- 2 x Socket Head Cap Screws
M3x8mm.
- 1 x Battery Plate.
- 1 x Battery Protection.
- 2 x Cylinder M2.5.
- 2 x Flat Head Cap Screw
M2.5x5mm.
- 1 x Heat Shrink.
Battery Tray
[H0149-S]
- 1 x 24T Tail Pulley.
- 1 x Set Screw M4x4mm.
- 6 x Socket Head Cap
Screws M2x5mm.
- 1 x Stop Battery Tray.
- 2 x Socket Head Cap
Screws M2.5x8mm.
Stop Battery Tray
[H0150-S]
- 1 x CF Swashplate
Anti-Rotation Guide.
- 1 x Finishing Washer M3.
- 1 x Socket Head Cap
Screw M3x8mm.
Swashplate
Anti-Rotation Guide
[H0152-S]
- 1 x ESC Support.
- 6 x Flat Head Socket Cap
M2,5x5mm.
Carbon Fiber ESC Support
(H0153-S)
- 1 x Secondary Shaft M3.
- 1 x Head Cap Shouldered
M2.5x19mm.
- 1 x Metric Nylon Nut M2,5
- 1 x Head Cap Shouldered
M3x22mm.
- 1 x Metric Nylon Nuts M3.
Secondary Shaft
[H0157-S]
- 4 x Aluminum
Blade Spacer.
Aluminum Blade Spacer
[H0158-S]
- 1 x 18T Pulley.
- 1 x Set Screws M4x4mm.
18T Pulley
[H0175-18-S]
- 1 x Column Belt Tensioner.
- 1 x Tail Belt Idler.
- 1 x Belt Tensioner Arm.
- 2 x Flanged Bearings
3x
7x3mm.
- 2 x Flanged Bearings
5x
9x3mm.
- 1 x Socket Head Cap Screw M3x50mm.
- 1 x Washer
3x
4x0.5mm.
- 1 x Socket Head Cap Screw M3x12mm.
- 2 x Washers
3.2x
6x0.5mm.
- 1 x Button Head Cap Screw M3x4mm.
- 1 x Spring De8/df0.5/LL8.
Belt Tensioner Support
[H0174-S]
Front Tail Pulley
[H0172-S]
- 1 x Front Tail Pulley.
- 1 x Socket Head
M2.5x19mm.
- 1 x Metric Nylon
Nuts M2,5.
- 1 x Double Bearing
One Way Pulley.
- 3 x Shims
10x
16x0,2mm.
- 1 x One Way Bushing.
One Way Pulley
[H0171-S]
19T Pulley
[H0175-19-S]
- 1 x 19T Pulley.
- 1 x Set Screws M4x4mm.
Steel Pinion Z19
[H0156-S]
- 1 x Steel Pinion Z19.
- 1 x Socket Head Cap
M3x22 Shoulder.
- 1 x Metric hex locknut
Nuts M3H4.
25T Tail Pulley
[H0155-S]
- 1 x 25T Tail Pulley.
- 1 x Set Screw M4x4mm.
- 6 x Socket Head Cap
Screws M2x5mm.
Chapter 18, Spare Parts
Page 40
