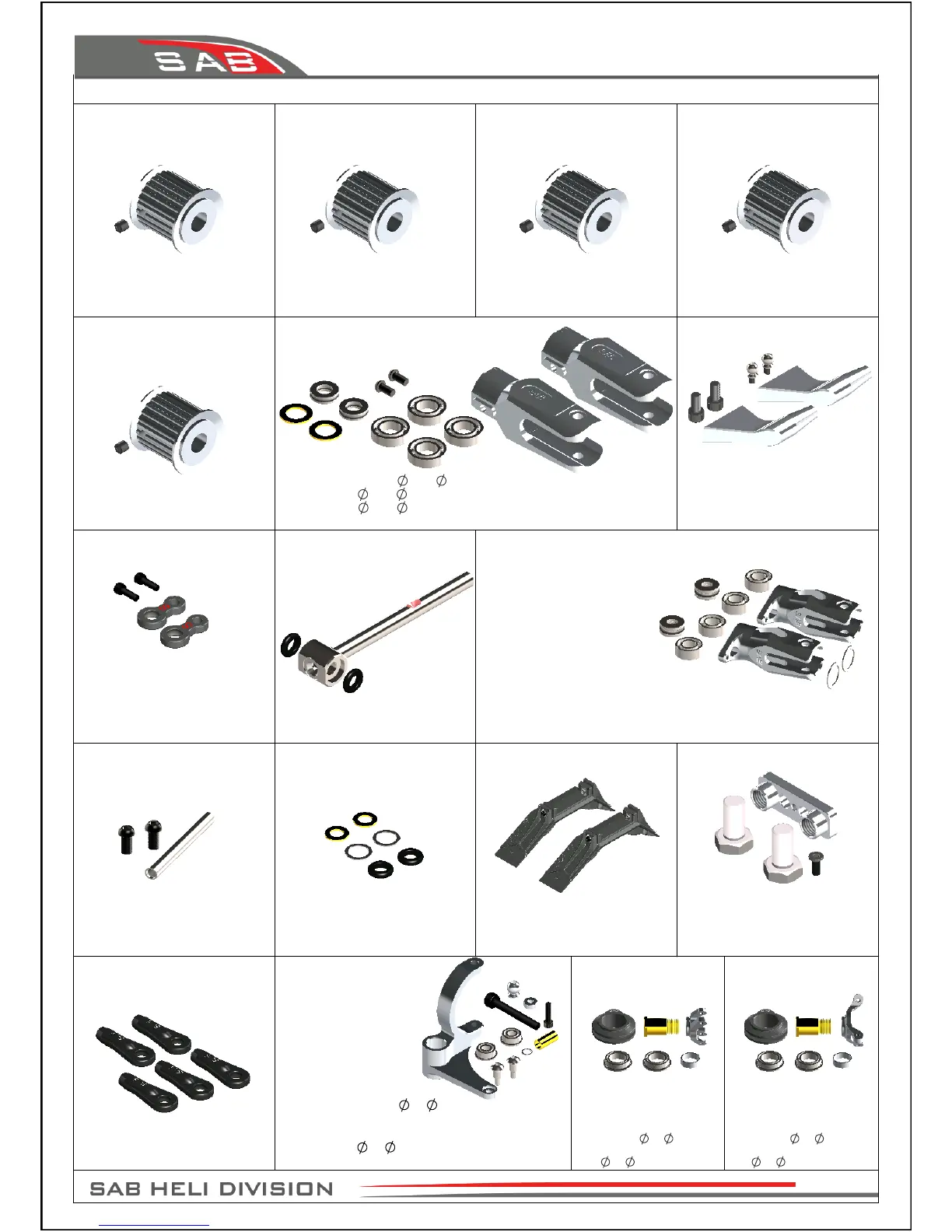

Goblin urukay - Page 43

Center Hub
[H0135-S]
- 1 x Center Hub.
- 1 x Socket Head Cap Screw
Shouldered M4x24mm.
- 1 x Metric Hex Nylon Nut M4 H5..
- 2 x Socket Head Cap Screws
M3x12mm.
- 1 x 20T Pulley.
- 1 x Set Screws M4x4mm.
- 1 x 21T Pulley.
- 1 x Set Screws M4x4mm.
21T Pulley
[H0175-21-S]
20T Pulley
[H0175-20-S]
- 1 x 22T Pulley.
- 1 x Set Screws M4x4mm.
22T Pulley
[H0175-22-S]
- 1 x 24T Pulley.
- 1 x Set Screws M4x4mm.
24T Pulley
[H0175-24-S]
- 1 x 23T Pulley.
- 1 x Set Screws M4x4mm.
23T Pulley
[H0175-23-S]
- 2 x Blade Grip.
- 2 x Thrust Bearing
10x 18x5.5mm.
- 4 x Bearing
10x 19x5mm.
- 2 x Washer
10x 16x1mm.
- 2 x Button Head Socket Cap M4x10mm.
Blade Grip
[H0182-S]
Blade Grip Arm
[H0183-S]
- 2 x Blade Grip Arm.
- 2 x Socket Head Cap Screw
M4x10mm.
- 2 x Uniball M3x4 Ø5 H3.5.
Plastic Tail Linkage
[H0261-S]
- 1 x Plastic Tail Linkage.
- 1 x Grip Link Bushing.
- 1 x Socket Head Cap Screws
M2x6mm.
- 2 x Quick Release Canopy Assembly.
- 2 x Flat Head Socket Cap M3x8mm.
- 2 x Canopy Grommets.
Quick Release Canopy Mount
[H0319-S]
- 1 x 68T Main Gear .
- 1 x Socket Head Cap Screw
M4x25mm.
- 1 x Metric Hex Nylon Nut M4 H5.
- 1 x 19T Drive Pinion.
- 1 x Socket Head Cap Screw
Shouldered M3x22mm.
- 1 x Metric Hex Nylon Nut M3H4.
68T Main Gear
[H0320-S]
- 1 x Steel Tail Shaft Assembly.
- 1 x Tail Oring Damperner.
Steel Tail Shaft
[H0325-S]
Aluminum Tail Blade Grip
[H0327-S]
- 1 x Tail Spilde Shaft.
- 2 x Button Head Cap
Screws M4x6mm.
Tail Spilde Shaft
[H0329-S]
- 2 x Washer Ø5xØ8.9x0,75mm.
- 2 x Washer Ø7.5xØ10x0,5mm.
- 2 x Tail Oring Damperner.
Spacer Set For Tail Rotor
[H0330-S]
- 2 x Landing Gear Plastic Support.
- 4 x Finishing Washer.
- 4 x Head Cap Screw M3x10mm.
- 4 x Metrix Head Nylon Nut M3.
Lading Gear Plastic Support
[H0344-S]
- 1 x Tail Boom Support.
- 1 x Nylon screw M8x20mm.
- 1 x Flat Head Cap ScrewsM3x8mm.
Tail Boom Support
[H0358-S]
Heavy Duty Pinion 19T
[H0361-S]
- 1 x Heavy Duty Pinion 19T.
- 1 x Shoulder Head Cap
Screws M3x18mm.
- 1 x Metric Hex Nuts M3.
Ball Link
[H0402-S]
- 5 x Ball Link.
Bell Crank Lever
[H0406-S]
- 2 x Tail Pin.
- 1 x Uniball M2.
- 1 x Uniball Spacer.
- 1 x Bell Crank Lever.
- 2 x Flanged Bearing
3x 7x3mm.
- 1 x Head Cap Screws M3x22mm.
- 1 x Head Cap Screws M2x8mm.
- 1 x Washer
3x 4x0.5mm.
- 1 x Spacer 3 x 4 x 9.6mm.
- 1 x Tail Pitch Slider 01.
- 1 x Tail Pitch Slider 02.
- 1 x Tail Pitch Slider 03.
- 1 x Spacer 8x 9x3.2mm.
- 2 x Flanged Bearings
8x 12x3.5mm
Tail Pitch Slider 3 Blade
[H0409-S]
Tail Pitch Slider
[H0407-S]
- 1 x Tail Pitch Slider 01.
- 1 x Tail Pitch Slider 02.
- 1 x Tail Pitch Slider 03.
- 1 x Spacer 8x 9x3.2mm.
- 2 x Flanged Bearings
8x 12x3.5mm
- 2 x Aluminum Tail Blade Grip.
- 4 x Bearing Ø5xØ10x4mm.
- 2 x Thrust bearing Ø5xØ10x4mm.
- 2 x Button Head Cap M4x8mm.
- 2 x Socket Head Cap M2x6mm.
- 2 x Washer Ø5xØ8.9x0,75mm.
- 2 x Washer Ø7.5xØ10x0,5mm.
Page 41
Chapter 18, Spare Parts
