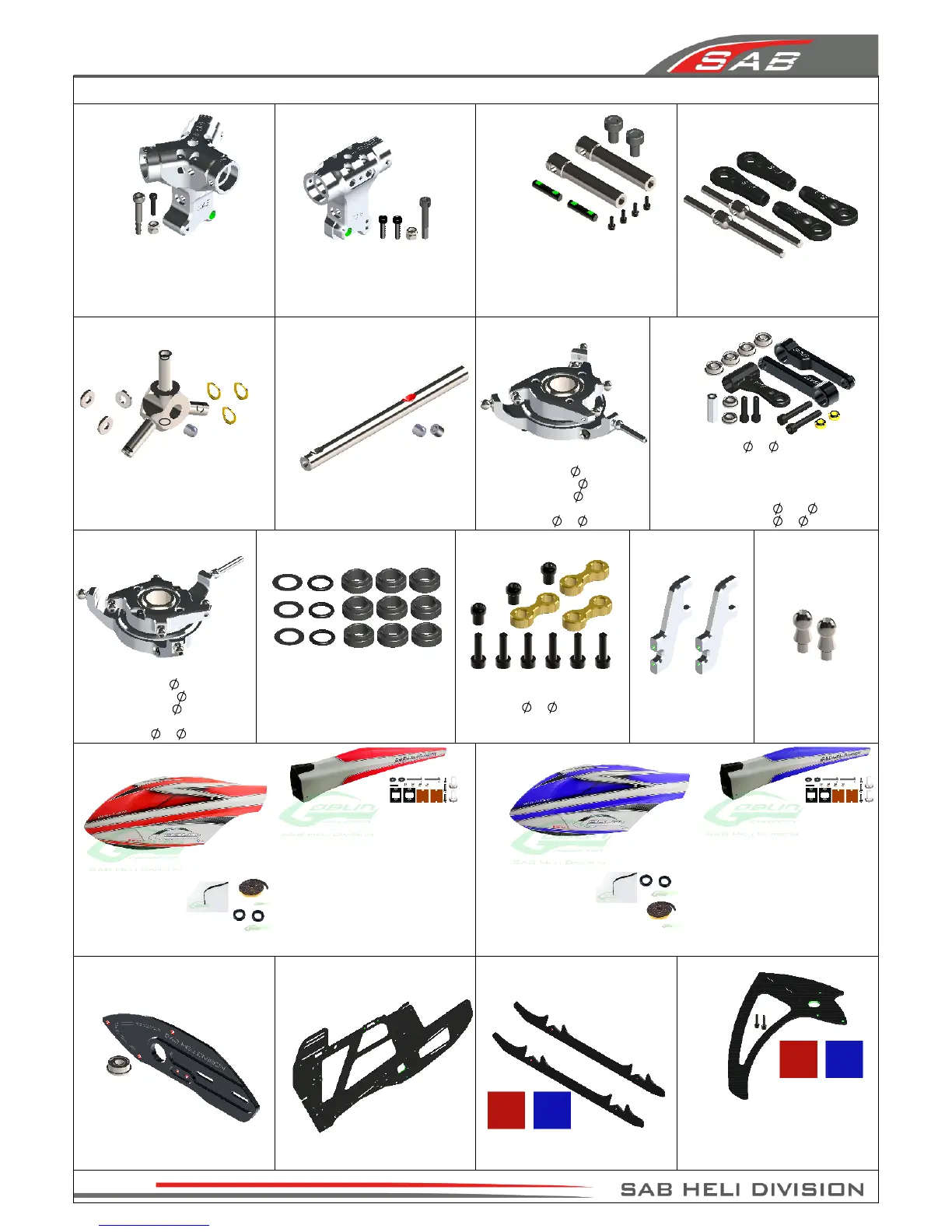

Goblin urukay - Page 44

Center Hurb
[H0411-S]
Spindle Shaft
[H0412-S]
- 1 x Center Hub.
- 1 x Shoulder Cap Screw M4x24mm.
- 1 x Metric Hex Locknut Nuts M4.
- 2 x Socket Head Cap M3x12mm.
Main Linkage
[H0417-S]
- 2 x Linkage Rod M3x50mm.
- 4 x Plastic ball linkages.
SwashPlate Set HPS2
[H0422-S)
- 3 x H0426-A.
- 3 x H0426-B.
- 3 x H0426-C.
- 3 x Washers 10x 16x1mm.
- 3 x Washers 10x 16x0.2mm.
- 3 x Orings 3050.
Main Frame
[H0445-S]
- 1 x Main Frame.
Landing Gear
[H0446-S]
- 2 x Landing Gear.
- 2 x Sticker.
Tail Servo Support
[H0436-S]
- 2 x Tail Servo Support.
Vertical Fin
[H0452-S]
- 1 x Vertical Fin.
- 2 x Head Cap Screws M3x12mm.
- 2 x Finishing Washer M3.
- 2 x Sticker.
Tail Side Plate
[H0444-S]
- 1 x Tail Side Plate.
- 1 x Flanged bearing Ø6xØ13x5mm.
White Canopy / Tail Boom
[H0439-S]
- 1 x Red/White Tail Boom.
- 2 x Locking Element Tails.
- 2 x D ouble-Sided Tapes.
- 1 x Set Screws M3 x 20mm .
- 2 x Washers 3.1 x 12 x 1.8mm.
- 4 x Metric Hex Nylon Nuts M3 .
- 2 x Boom spacers.
- 2 x Head Cap Screws M3 x 12mm .
- 2 x Nylon Screw M8x20mm.
- 1 x Flat Head Cap Screws M3x8mm .
Blue/White Tail Boom
[H0443-S]
- 1 x Blue/White Tail Boom.
- 2 x Locking Element Tails.
- 2 x D ouble-Sided Tapes.
- 1 x Set Screws M3 x 20mm .
- 2 x Washers 3.1 x 12 x 1.8mm.
- 4 x Metric Hex Nylon Nuts M3 .
- 2 x Boom spacers.
- 2 x Head Cap Screws M3 x 12mm .
- 2 x Nylon Screw M8x20mm.
- 1 x Flat Head Cap Screws M3x8mm .
Red Canopy / Tail Boom
[H0438-S]
- 1 x White/Red Canopy.
- 2 x Canopy Grommet.
- 1 x Canopy mousse.
- 1 x Canopy Edge Protection.
Blue/White Canopy
[H0439-S]
- 1 x Blue/White Canopy.
- 2 x Canopy Grommet.
- 1 x Canopy mousse.
- 1 x Canopy Edge Protection.
Uniball M3xH5.5
[H0437-S]
- 2 X Uniball M3H5.5.
- 1 x Center Hub.
- 1 x Socket Head Cap Screws
M3x12mm.
- 1 x Socket Head Cap Screw
Shouldered M4x25mm.
- 1 x Metric Hex Nylon Nut M4.
Center Hurb
[H0410-S]
- 2 x Spindle Shaft.
- 2 x Pin 5mm.
- 4 x Socket Head Cap
Screw M2.5x6mm.
- 2 x Socket Head Cap
Screw M4x10mm
- 2 x Washer Ø6,3 x Ø15 x 1mm
SwashPlate Set HPS3
[H0420-S)
- 1 x Swashplate Assembly.
- 2 x Bearings 30x
37x4mm.
- 6 x Uniballs M3x4
5 H3.
- 1 x Uniball M3x4
5 H18.
- 3 x Head Cap Screws M2x5mm.
- 3 x Swasher
2x 5x0.5mm
- 1 x Swashplate Assembly.
- 2 x Bearings 30x
37x4mm.
- 6 x Uniballs M3x4
5 H3.
- 1 x Uniball M3x4
5 H18.
- 3 x Head Cap Screws M2x5mm.
- 3 x Swasher
2x 5x0.5mm
- 2 x Radius Arms.
- 2 x Spacer Arm
3x 5x2.7mm.
- 1 x Spacer Hex.
- 1 x Uniball Radius Arms.
- 2 x Head Cap Screws M3x16mm.
- 2 x Head Cap Screws M2.5x10mm.
- 2 x Flanged Bearings
2.5x 6x2.5mm.
- 4 x Flanged Bearings
3x 7x3mm.
Radius Arm
[H0421-S]
- 1 x Tail Hub.
- 1 x Set Screw M4x6mm.
- 3 x Head Cap Screws M3x8mm.
- 3 x Washer Ø3xØ7x1mm.
- 3 x Washer Ø5xØ7x0,2mm.
Tail Hub
[H0418-S]
- 1 x Tail Shaft.
- 2 x Set Screws M4x6mm.
Tail Shaft
[H0419-S]
- 3 x Pin M2.
- 3 x Spacer
2x 3x3mm.
- 3 x Tail Pitch Slider Link.
- 6 x Head Cap Screws M2x6mm.
Pin M2
[H0435-S]
Damper
[H0426-S)
Page 42
Chapter 18, Spare Parts
