Description
Function
SAS0~7
SAS/SATA hard drive connector
1. Maximum support 12G/b SAS hard disk;
2. Maximum support 6G/b SATA hard disk;
3. Support SAS/SATA hard disk hot-swap.

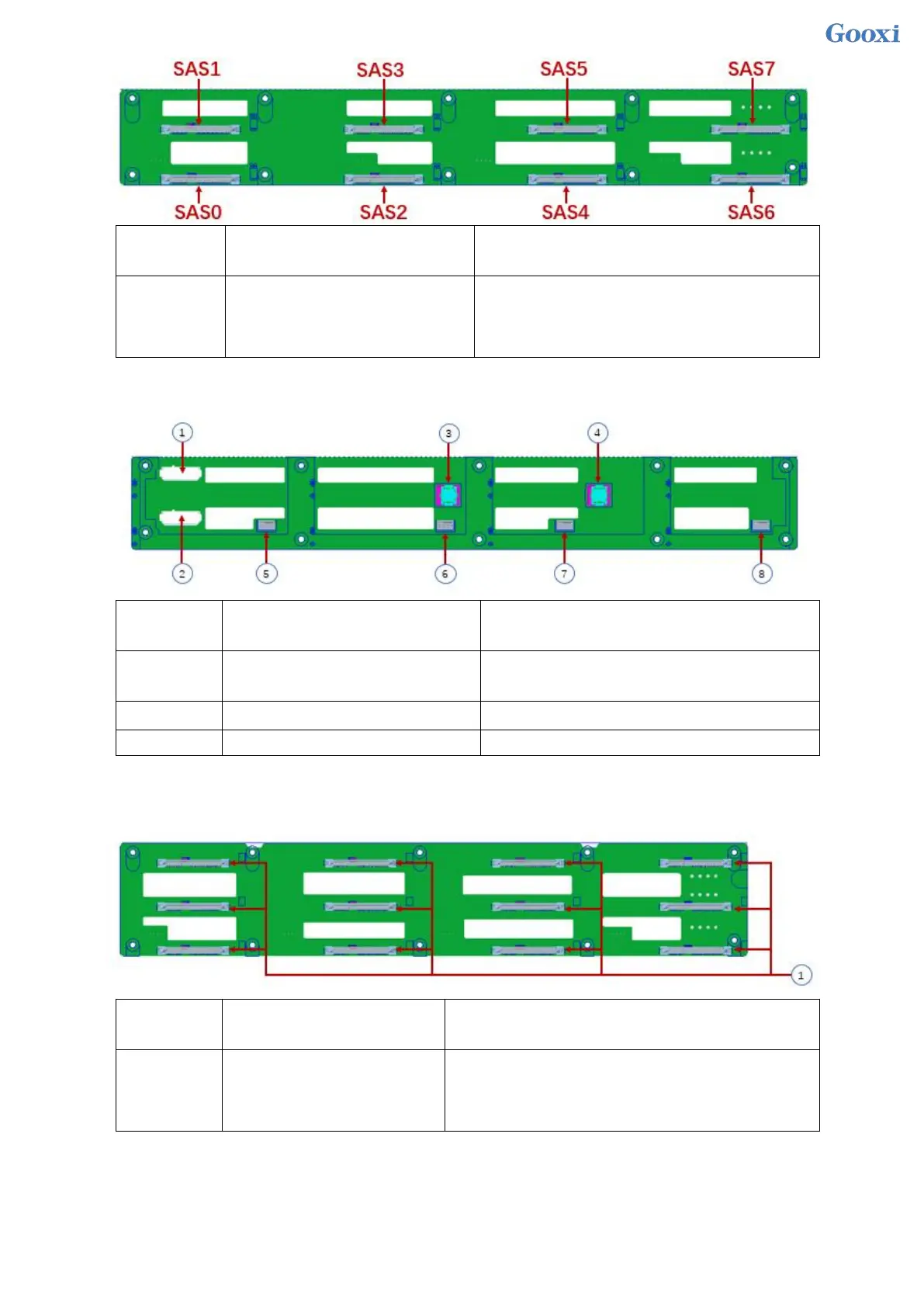

Bottom view:
Serial
number
Description
Function
1, 2
ATX power input
Backplane power transfer connector for 12V
power transfer
3, 4
SFF-8643 12Gb SAS port
Backplane bay signal port
5, 6, 7, 8
Temperature Controlled Fan Socket
For 4pin fan port
2U12 expansion backplane as shown
TOP view:
Serial
number
Description
Function
1
SAS/SATA hard drive
connector
1. Maximum support 12G/b SAS hard disk;
2. Maximum support 6G/b SATA hard disk;
3. Support SAS/SATA hard disk hot swap.
