30

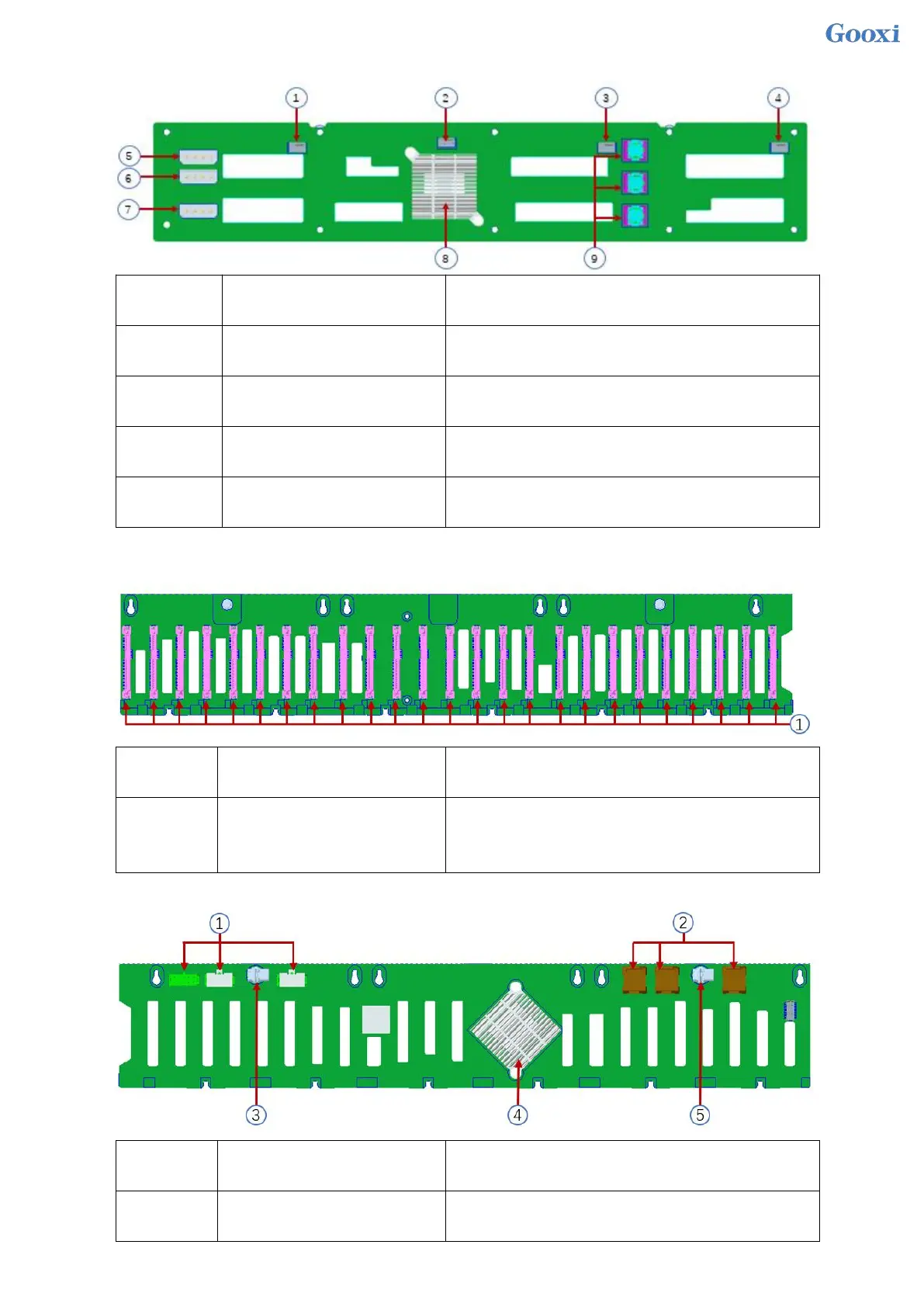

Bottom view:
Serial
number
Description
Function
1, 2, 3, 4
Temperature Controlled Fan
Socket
For 12G/b SAS or 6G/b SATA signal transmission.
5, 6, 7
Power connector
Backplane power transmission connector for 12V
power transmission.
8
EXPANDER chip
PM8043 SXP 24Sx12G
24-port 12G SAS Expander
9
MINI SAS HD High Speed
Connector
For 12G/b SAS or 6G/b SATA signal transmission.
2U25 expansion backplane as shown
TOP view:
Serial
number
Description
Function
1
SAS/SATA hard drive
connector
1. Maximum support 12G/b SAS hard disk;
2. Maximum support 6G/b SATA hard disk;
3. Support SAS/SATA hard disk hot swap.
Bottom view:
Serial
number
Description
Function
1
Power connector
Backplane power transfer connector for 12V power
transfer
