Gooxi SL101-D04R-G3 User Manual

32
Serial
number
Description
Function
1
SAS/SATA connector
1. Maximum support 12G/b SAS hard disk;
2. Maximum support 6G/b SATA hard disk;
3. Support SAS/SATA hard disk hot swap.
Table 1- 24

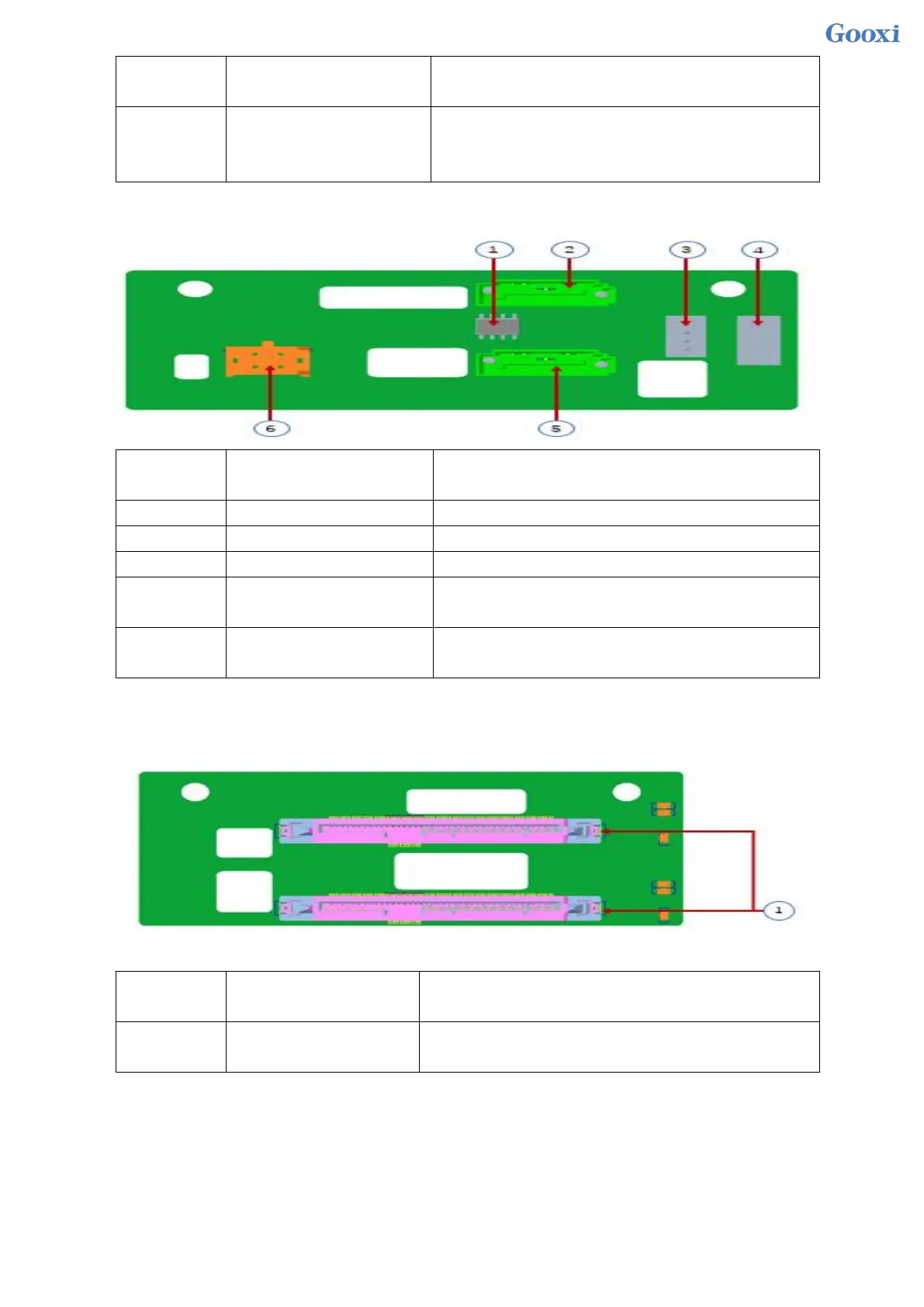

Bottom view:
Serial
number
Description
Function
1
Temperature sensor IC
Temperature sensor chip
2, 5
7PIN SATA port
SATA disk signal line port
3
I2C port
For I2C signal port
4
SGPIO lighting signal
Used for hard disk LED positioning lighting and fault
LED indication functions.
6
Power port
Backplane power transfer connector for 12V power
transfer
U.2 backplane as shown
TOP view:
Figure 2- 20
Serial
number
Description
Function
1
SFF-8639 Connector
U.2 port supporting PCIe×4 for connecting to NVME
SSD
Bottom view:
