LED Indicator Description
Serial
number
Description
Function
LED1
SFP+ LAN1 Link LED
Green/ yellow indicator for indicating LAN1 speed
Green: 10 Gigabit Internet speed ; Yellow : Gigabit
Internet speed
No light: no optical port network cable
SFP+ LAN1 ACT LED
Green light for LAN1 data activity
Flashing: data activity ; off: no data activity
LED2
SFP+ LAN2 Link LED
Green/ yellow indicator for LAN2 speed
Green: 10 Gigabit Internet speed; Yellow : Gigabit
Internet speed
No light: no optical port network cable
SFP+ LAN2 ACT LED
Green light for LAN2 data activity
Flashing: data activity; off: no data activity

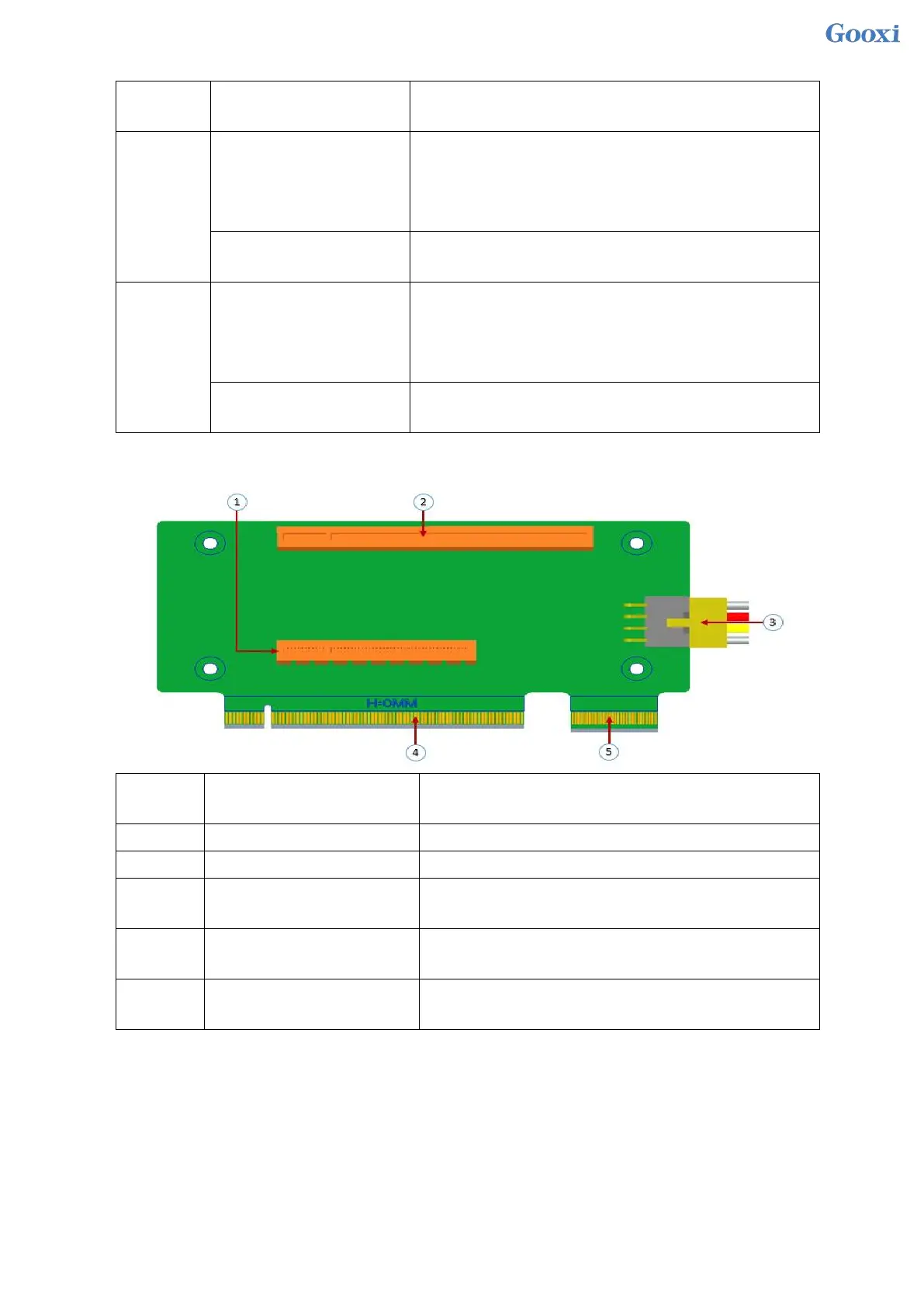

RISER 1 backplane as shown:
Serial
number
Description
Function
1
PCIE 3.0 X8 Slot
For PCIe 3.0 X8 devices.
2
PCIE 3.0 X16 Slot
For PCIe 3.0 X16 devices.
3
RISER POWER
Riser card power transmission connector for 12V power
transmission
4
PCIE X16 Specification Gold
finger
For motherboard PCIe X16 X8 port
5
PCIE X8 specification gold
finger
For motherboard PCIe X16 X8 port
RISER 2 backplane as shown:
