Grace Qnique 19 User Manual

23

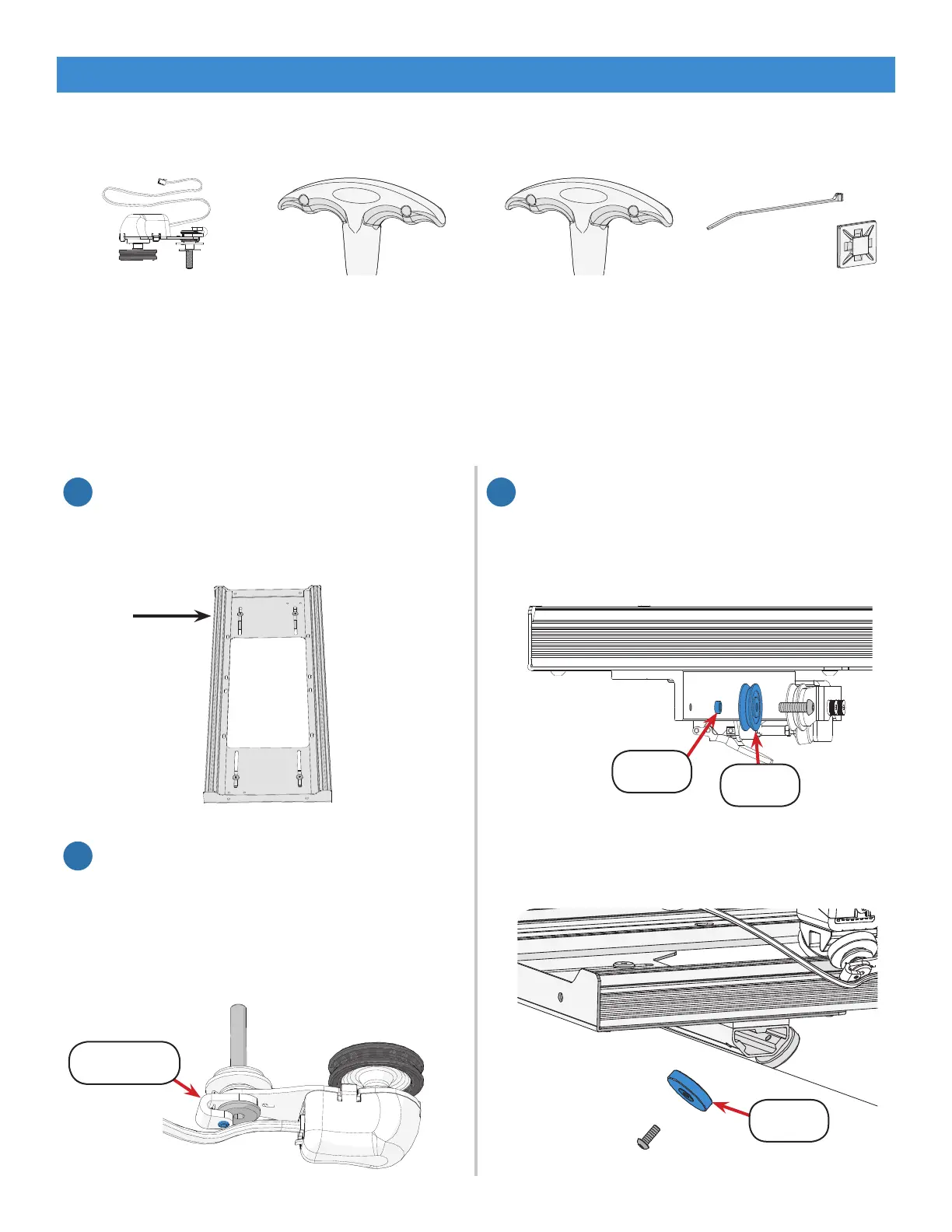

2. Loosen the lock collar screw (shown in
blue) on the lower encoder with the 2.5 mm
Allen wrench until the lock collar turns
freely. Note: Depending on the encoder
model, this step may require the 2.0 mm
Allen wrench.
Parts & Tools Needed:
Instructions
The encoders monitor the position of the machine over the frame, allowing for regulated stitching.
The lower encoder is installed on the left-rear wheel of the bottom carriage. Please take the following
steps to install the encoder onto the bottom carriage:
Installing the Lower Encoder
Zip Tie (x2)
Zip Tie Mount (x2)
Front
T-handle Allen
Wrench 4 mm
4 mm
2.5 mm
T-handle Allen
Wrench 2.5 mm
Lower Encoder
(black spring)
1. Locate the left rear wheel of your bottom
carriage. Note: If needed, review your
frame assembly manual to determine the
front of the bottom carriage.
1. Use the 4 mm Allen wrench to remove the
left rear wheel from the bottom carriage.
On dual-wheel carriages, remove the
outward-facing wheel.
Wheel
Spacer
1
3
Out-of-the-Box Assembly
Wheel
Lock Collar
2
