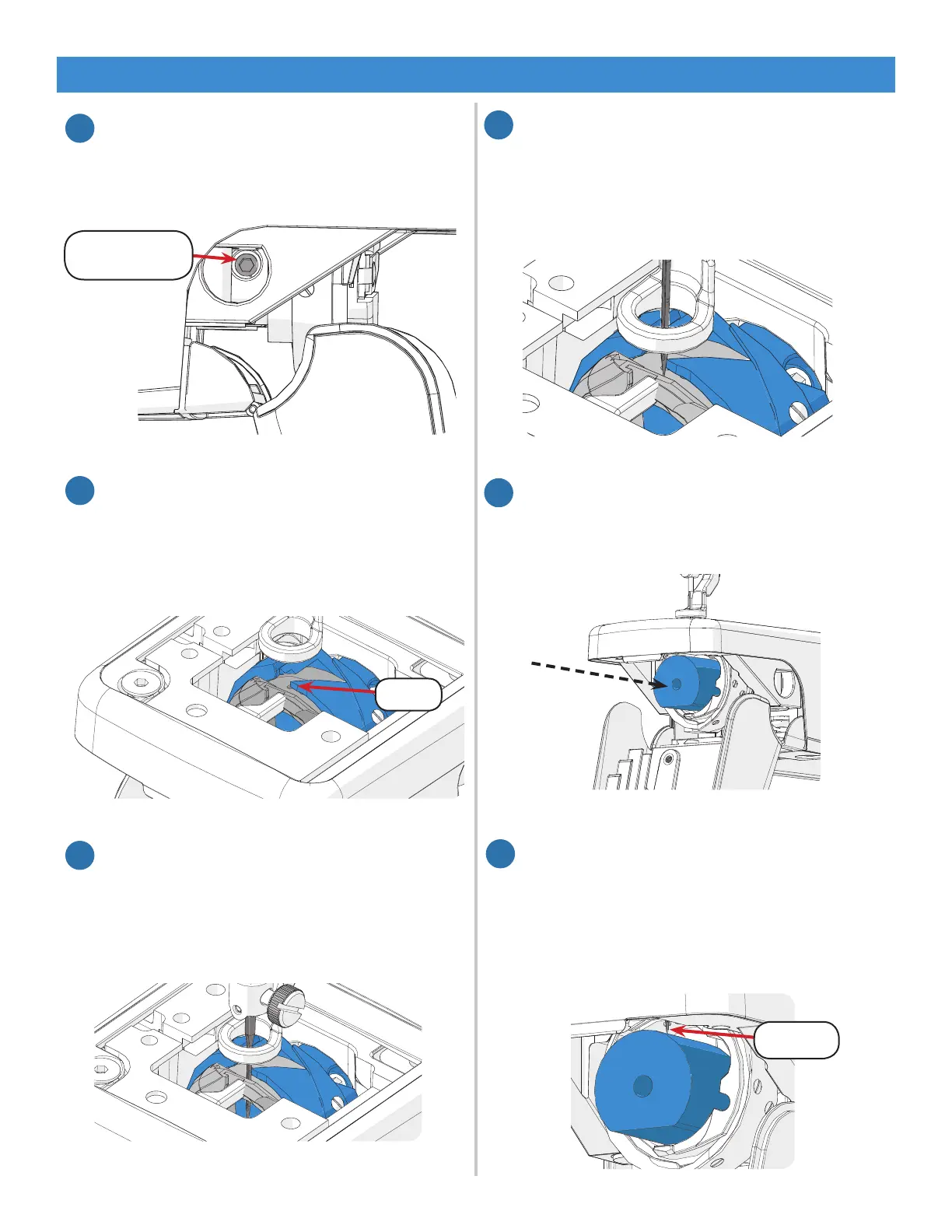

7. Carefully rotate the hand wheel to drop the
needle (shown in gray) all the way to the
lowest point. Continue rotating the hand
wheel the same direction. The needle
should begin to raise up.
5. As each of the 3 set screws aligns with the
cut-out, loosen them with the 2 mm Allen
wrench.
6. The outside part of the hook assembly
(shown in blue) now rotates by hand. Turn
the outside part of the hook assembly so
that the hook is at the top.
Set Screw
(x3)
Hook
6
7
8
8. Stop raising the needle once the eye is about
level with the hook (shown in blue). Do not
continue to raise the needle. If the needle
reaches the top of its rotation (over the
hopping foot), start over at step 8.
9
9. Slip the timing spacer (shown in blue) into
the hook assembly.
10
9. Turn the hand wheel the opposite direction
to bring the needle back down until it rests
on top of the timing spacer. Do not let
the needle rise to the top before bringing it
back down or you will need to repeat steps
8–11.
Needle
11
Timing the Machine (Continued)
Repairs and Diagnostics
To Next Page
