Repair
42 3A4399A

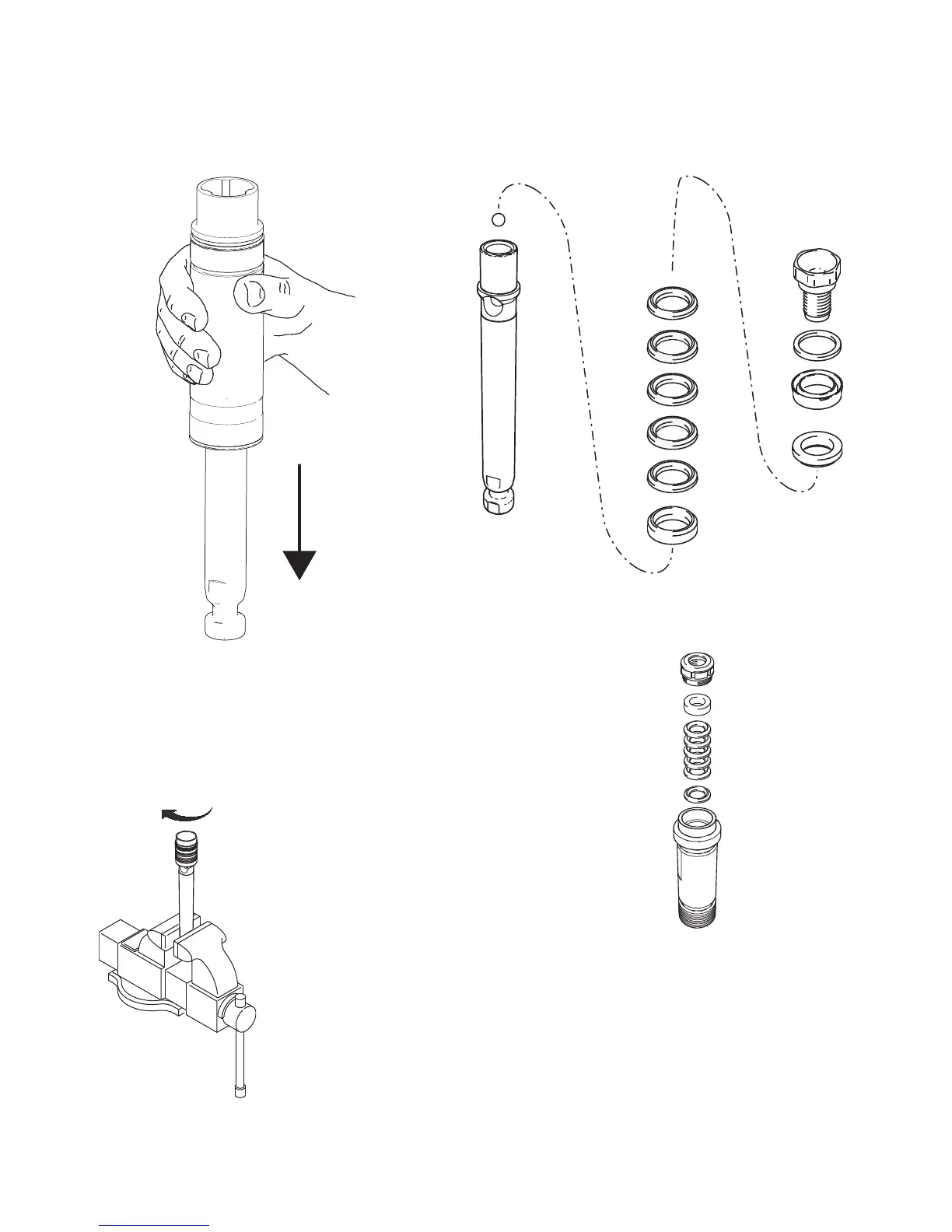

5. Remove piston rod from sleeve, or remove sleeve
from cylinder.
6. Unscrew piston valve from piston rod. Clean and
inspect parts. The piston has a special thread lock-
ing/sealing patch. Do not remove the patch. The
patch allows four disassembly/assembly procedures
before it is necessary to apply thread sealant to the
threads.
7. Remove packings and glands from piston rod.
8. Remove throat packings and glands from cylinder.
Discard throat packings and glands.
