Repair
3A4399A 43

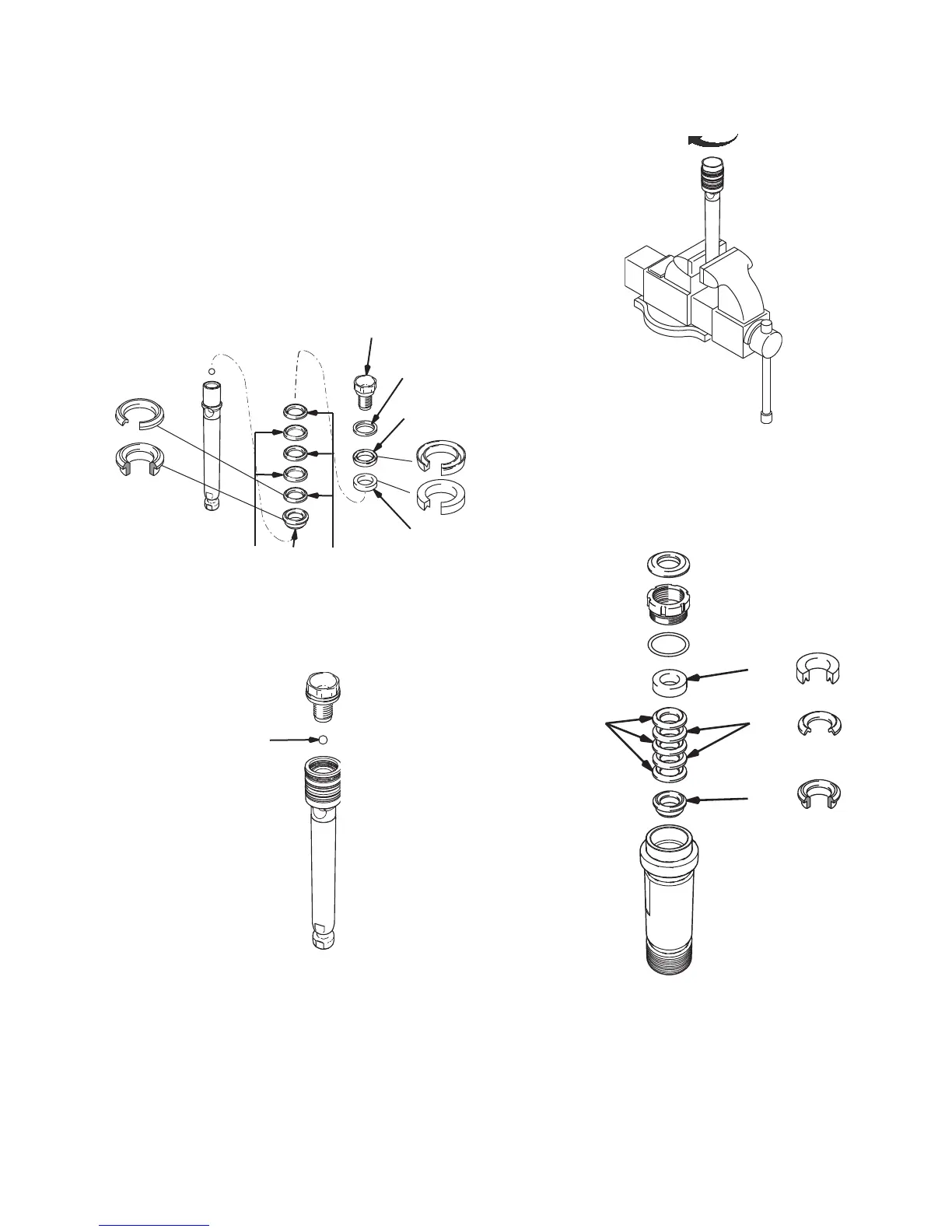

Assembling the Pump
1. Soak all leather packings in SAE 30W oil for 1 hour
minimum prior to assembly. Stack male gland (204)
on piston rod. Alternately stack UHMWPE (208) and
leather (218) packings (note orientation) on piston
rod. Install female gland (217). Install piston wiper
(216) (note orientation) and backup washer (229) on
piston valve, threads are good for four repackings.
Use thread sealant on piston valve threads after
four repackings.
2. Install ball (206) in piston rod. If thread sealant is
applied to piston valve threads, make sure that none
gets on ball.
3. Torque piston valve to piston rod to 27 +/-3 ft-lb.
(36.1 +/-4.1 N•m).
4. Soak all leather packings in SAE 30W oil for one
hour minimum prior to assembly. Place male gland
(204) in cylinder. Alternately stack UHMWPE (203)
and leather packings (223) (note orientation). Place
female gland (224) in top of cylinder seat packings.
5. Install seal (201) into packing nut (202). Install
o-ring (228) onto packing nut. Loosely install pack-
ing nut into cylinder.
210
