Graco G3 Series User Manual

Installation
10 332305J

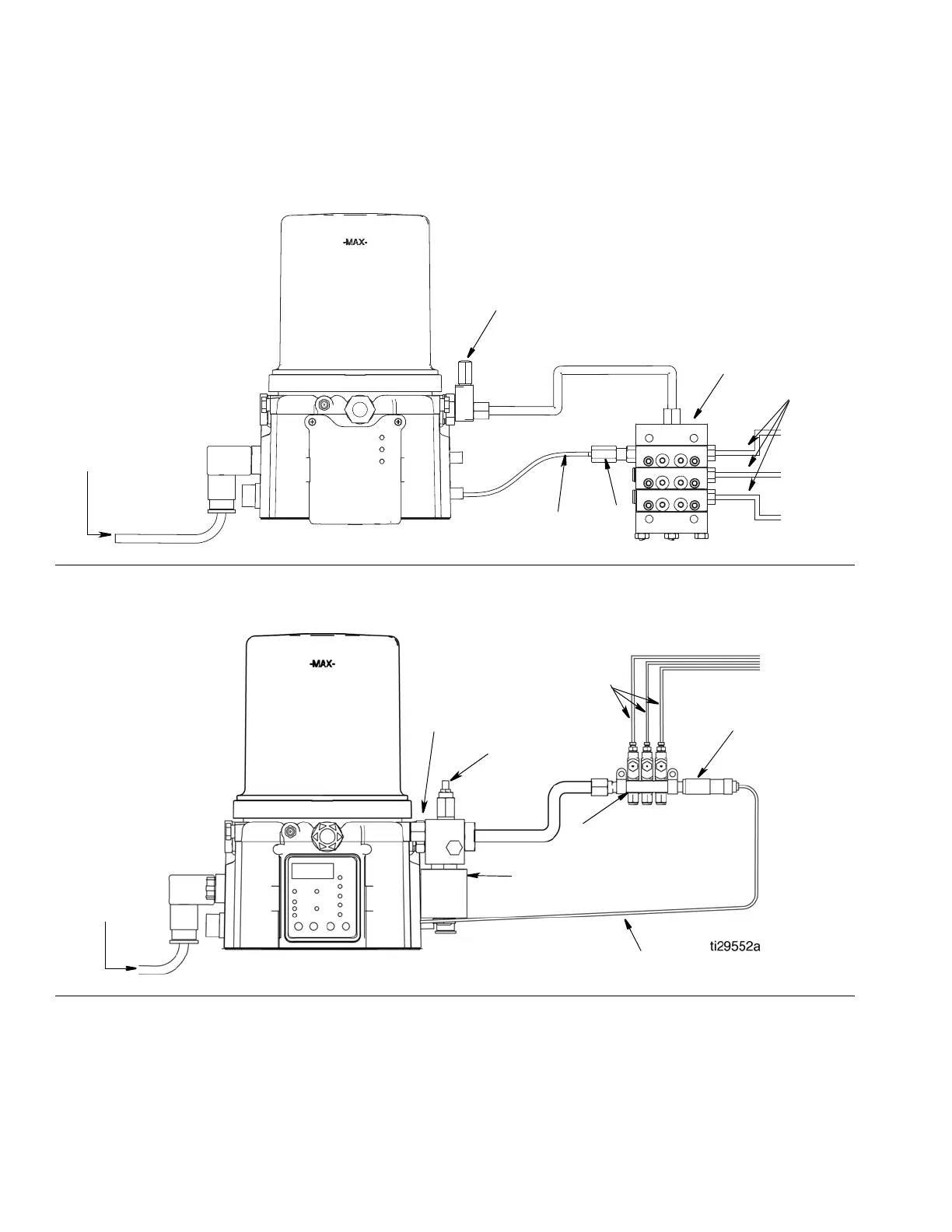

Typical Installation
Series Progressive Divider Valve Installations
Injector Installations
A Connected to fused power source
B Pressure relief valve (Not included/required for each outlet
- user supplied. See Parts, page 83)
C - Cycle indicator sensor cable (Divider Installations)
- Pressure switch cable (Injector Installations)
D - Series progressive divider valves (Divider Installations)
- Injectors (Injector Installations)
E To lube points
F - Proximity Switch (Divider Installations)
- Pressure switch (Injector Installations)
G Vent valve (Not included / available from Graco. See
Parts, beginning on page 82.)
H Return to reservoir
FIG. 3
FIG. 4
A
B
C
D
E
F
A
B
D
E
C
F
H
G
