Alarms: Firmware Versions 6.01 and Below
Any time a Fault / Warning occurs, a combination of LED’s will illuminate to notify you there is a problem and help
identify the kind of Fault / Warning has occurred.
• Faults and Warnings will not automatically clear.
• To clear an fault, press and hold the RESET button on the display button pad for 3 seconds.
• To clear a warning press and immediately release the RESET button.
Fault / Warning Scenarios
The following pages describe the most likely fault / warnings you could receive.

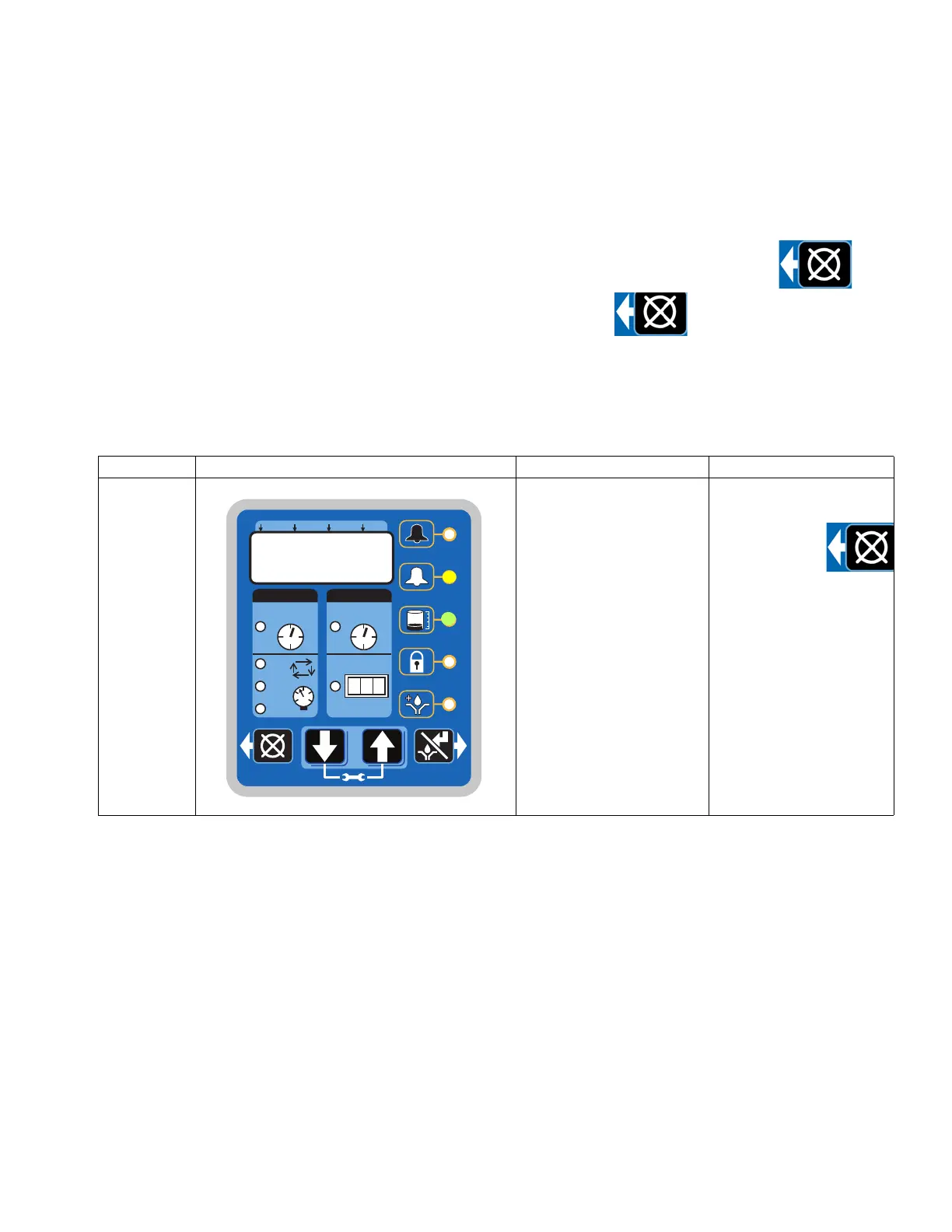

Alarm Type What it Looks Like What it Indicates Solution
Low Level
Warning
Level of lubricant in
reservoir is low and addi-
tional lubricant needs to be
added.
Unit continues to operate
as normal for a limited
period of time until a low
level alarm is triggered.
Add lubricant to reservoir.
After lubricant
is added,
press the
RESET but-
ton to clear the warning.
