Graco G3 Series - Power CPC DC Connections

Installation
332305J 17
Power CPC DC -15 foot

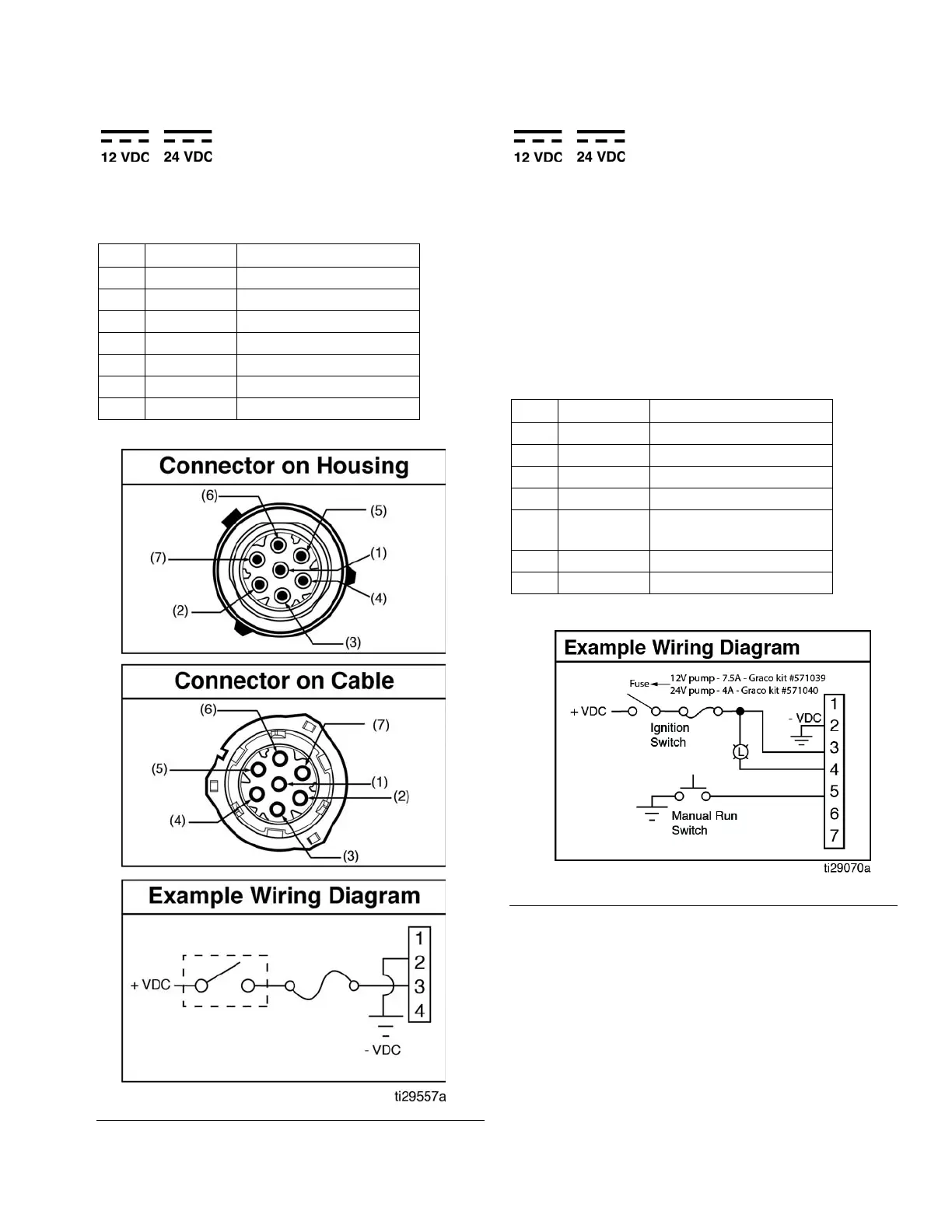

Pin and Related Wire Color (FIG. 9)
Power CPC DC - 5 Wire
Part No.: 127780: 15 ft (4.5 m)
Part No.: 127781: 20 ft (6.1 m)
Part No.: 127782: 30 ft (9.1 m)
An Illuminated Remote Run Button Kit: 571030, 571031
for starting a manual run cycle if used in conjunction
with a 5-wire CPC cable, is available from Graco. Con-
tact your local Graco distributor or Graco Customer Ser-
vice for additional information about these kits.
Pin and Related Wire Color (F
IG. 10)
Pin Pin Name Color
1 Not Used Not Used
2-VDC Black
3+VDC White
4 Not Used Not Used
5 Not Used Not Used
6 Not Used Not Used
7 Not Used Green
FIG. 9
Pin Pin Name Color
1
Not Used Not Used
2-VDC Black
3+VDC Red
4LIGHT White
5
Manual Run
Switch
Orange
6 Not Used Not Used
7 Not Used Green
FIG. 10
