Graco G3 Series - Optional Installation - Without Remote Fill Manifold

Installation
12 332305J

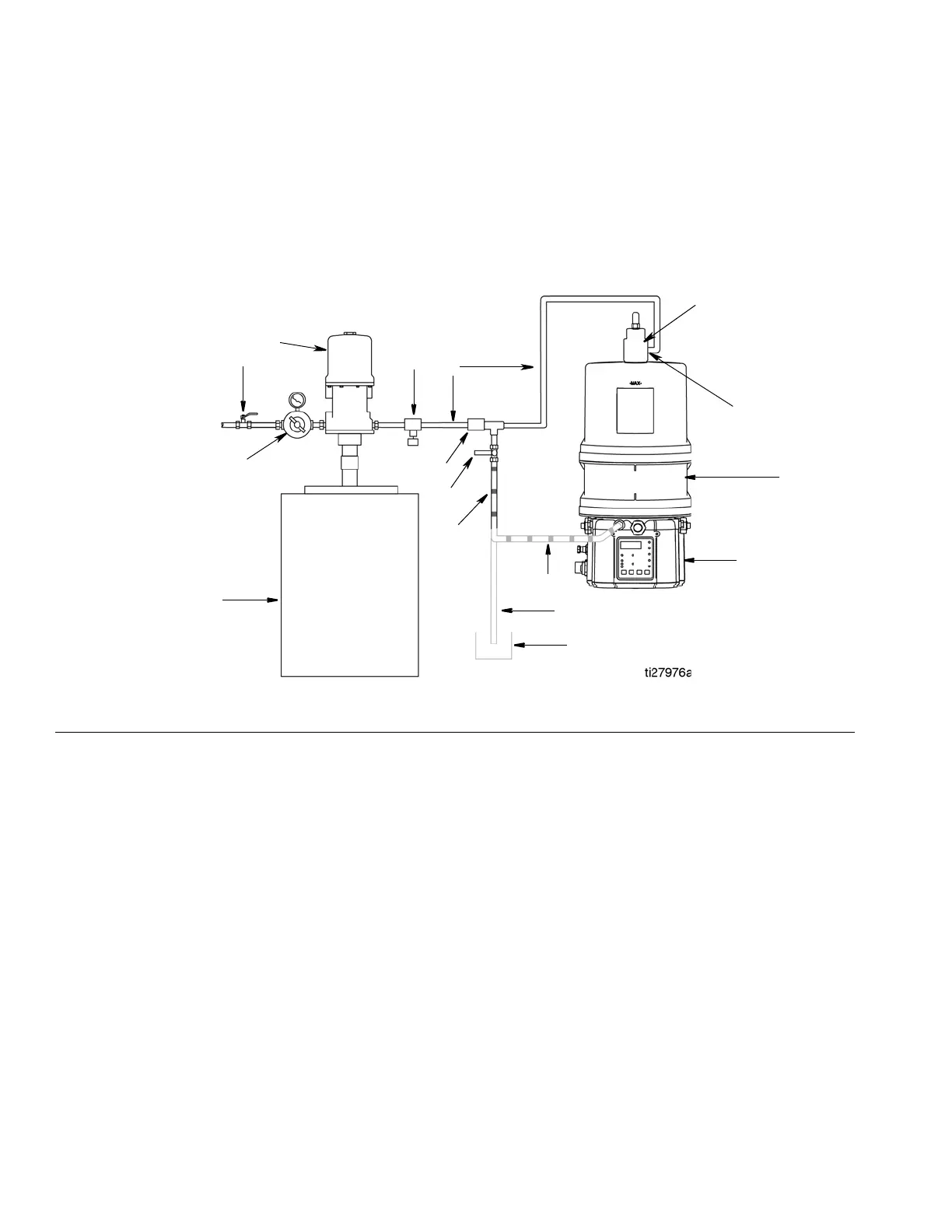

Optional Installation - Without Remote Fill Manifold
The installation shown is only a guide for selecting and installing system components. Contact your Graco distributor
for assistance in planning a system to suit your needs.
NOTE: The remote filling station pump stalls (dead-heads) when the reservoir is full. If the pump does not stall
(dead-head) there is a leak in the system.
Key:
AG3 Pump
B Auto-Fill Shut Off Valve
C Auto-Fill Inlet
D G3 Reservoir
E Remote Fill Reservoir
F Remote Fill Pump
HRelief Valve
J Supply Hose (user supplied)
L Drain Tube
L1 Option - To reservoir
L2 Option - To overflow container
S Pressure Regulator and Gauge
U Pressure Relief Valve
V Quick Disconnect
W Overflow Container
Y Supply Hose Pressure Relief Valve
 To relieve the stall pressure in the fill line a ball valve
(Y) must be installed in the system.
FIG. 6
E
F
J
S
B
C
D
A
L1
H
U
V
L
L2
W
Y
