Installation
332305J 9
Component Identification
Key:
AReservoir
B Pump Element (1 included. Can accommodate 3 total)
C Pressure Relief Valve (Not shown. Not included / required for
each outlet - Available from Graco. See Parts, page 83.)
D Zerk Inlet Fill Fitting (1 included / grease models only)
E Pump Outlet Plug (2 included)
F Volume Control Spacers (2 included. More spacers = less
output volume per stroke) (also see F
IG. 21, page 23)
G Fuse (DC models only - Not included, not shown. Available
from Graco. See Parts, page 84.)
H Control Panel
I Power / Sensor Panel (both sides; only one side shown)
J Part Number / Model Number example only shown, (see
pages 5, Understanding the Model Number, for details)
K Power Cord (not shown)
L Follower Plate (grease models only / not available on all
grease models)
M Vent Hole for Follower Plate (grease models only / not
available on all grease models)
N Fill cap (oil models only)
P USB Port (DMS
Models only)
R Auto-Fill Shut Off

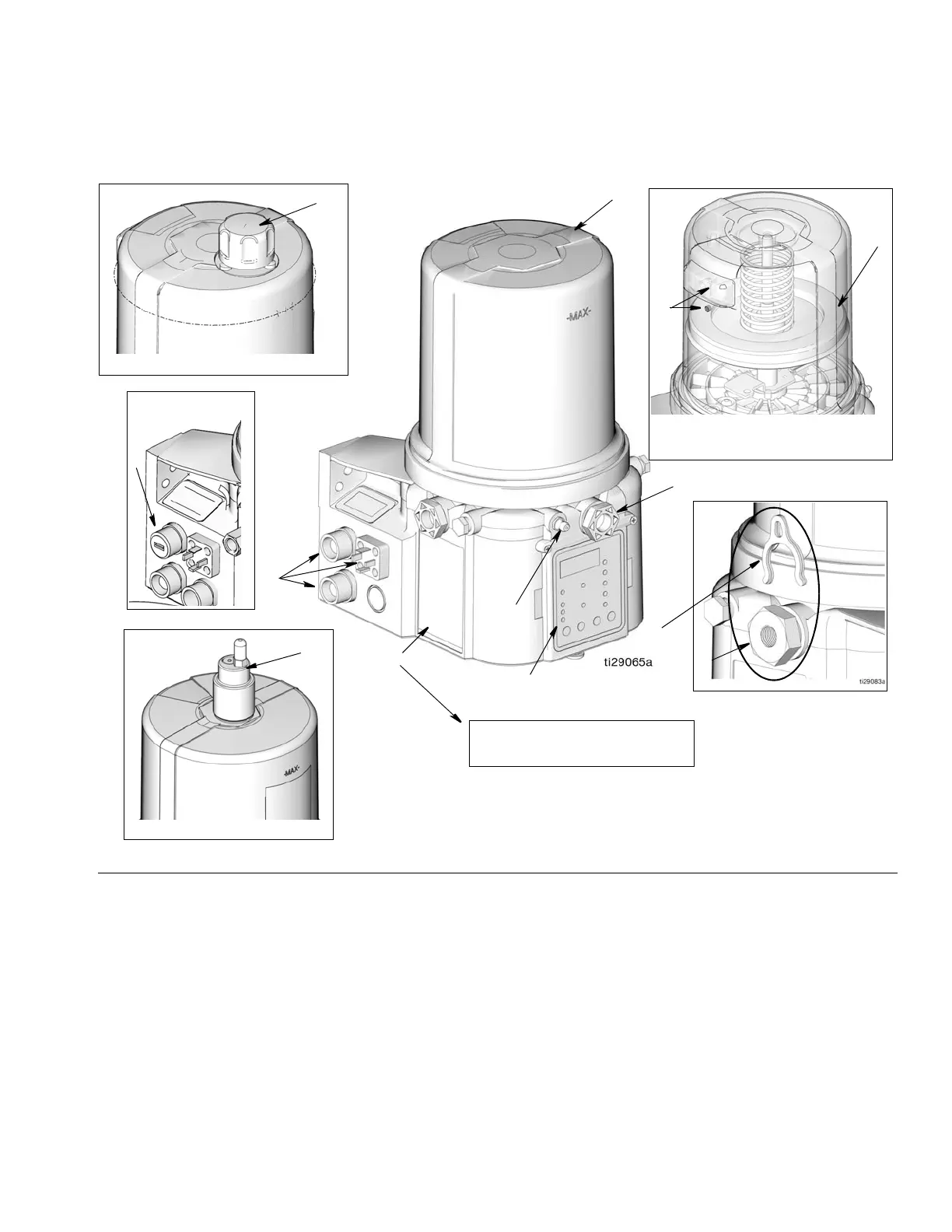

FIG. 2:
A
D
H
I
B
E
F
J
G3-G-24NC-2L0A00-L0C00000
Grease Models with Follower
Plate
L
M
96GXXX
Oil Models
N
Grease Models
DMS
TM
Models
P
R
Auto-Fill Shut Off Models
