Max Model Setup
36 332305J

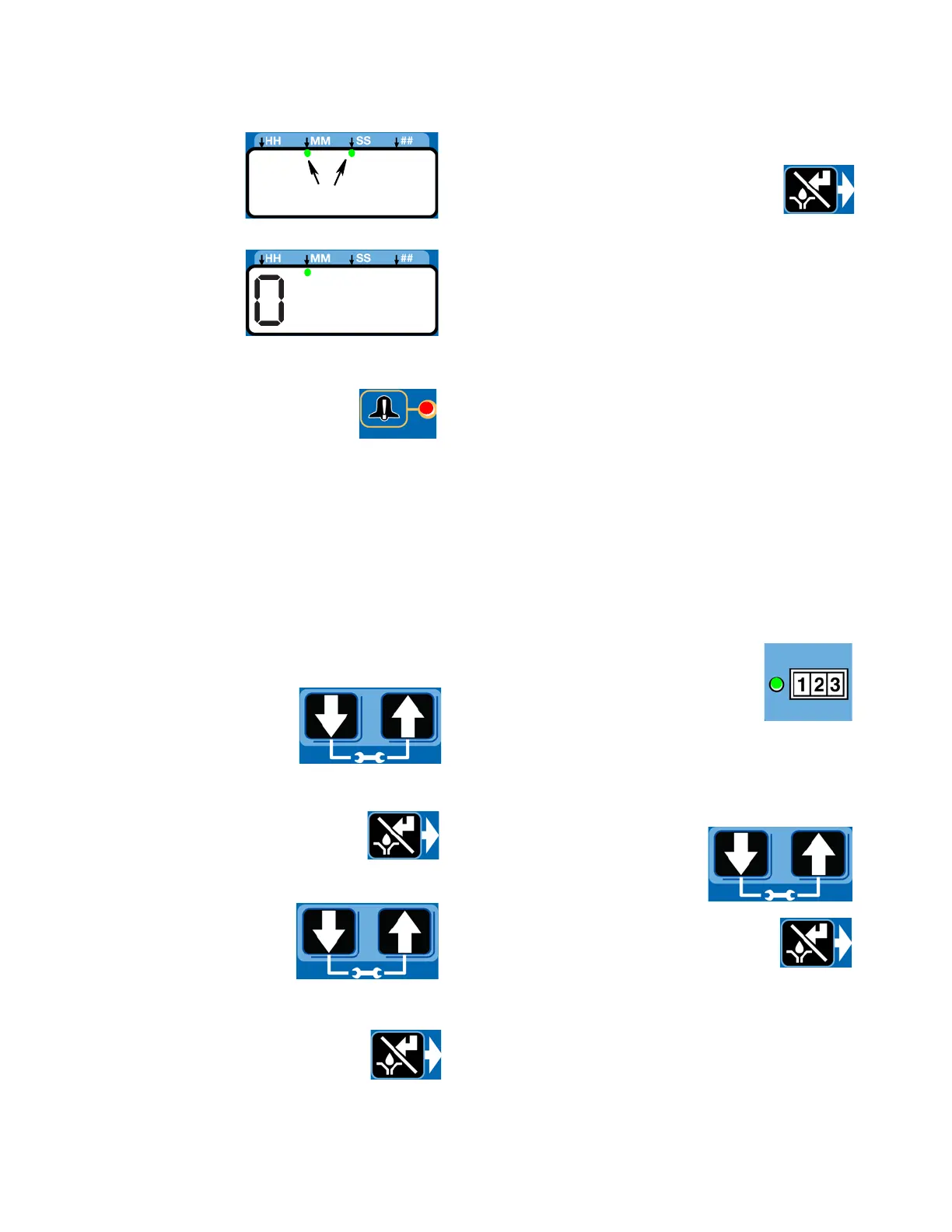

• An LED flashes under
either MM when pro-
gramming minutes
OR SS when pro-
gramming seconds.
• In SETUP MODE, the
number displayed in
the first field, on the
left side of display
blinks, indicating the
device is ready to pro-
gram the ON Time minutes.
•
The total amount of ON Time cannot
be 0 or exceed 30 minutes. If a value
of 0 or a value greater than 30 min‐
utes is entered, the RED alarm LED
lights and the value must be updated
.
If this time does not meet the application needs,
contact Graco Customer Support.
Programming ON Time
NOTE: When programming a time of less than 10 min-
utes you must program a leading zero in the first num-
ber field and press the ENTER button to save the zero
selection.
1. To set the ON Time use the
UP or DOWN ARROW button
to scroll through numerals 0
to 5 until the desired number
appears in the first MM (min-
utes) field.
2. Press the ENTER button to lock in the
selection. The next MM number field to
the right flashes indicating it is ready for
programming.
3. Use the UP or DOWN
ARROW button to scroll
through numerals 0 to 9 until
the desired number appears
in the second MM number
field.
4. Press the ENTER button to lock in the
selection.
The next number field to the right
flashes and the LED lights under SS; indicating it is
ready to program the seconds fields.
5. Repeat steps 1 - 4 to set the SS (seconds) fields.
6. After pressing the ENTER button to set
the last SS field, all the programmed ON
Time information is saved.
The G3 automatically switches to the OFF Time
SETUP MODE.
PUMP OFF / REST Setup
After setting the parameters for either Cycle (C1, C2 or
C3) or Pressure (P1, P2, or P3) ON modes, the OFF or
pump rest cycle must be set up. There are 3 ways to
control this function:
• Machine Count switch activation, or
• Machine Count activations limited by a maxi-
mum Time, or
• A specific set amount of Time (similar to Time
Mode).
• If the machine count sensor input is available
and not used in the OFF Mode, the definition of
the entered time is OFF TIME.
Machine Count
1. After you set the last ON Time field
and press the ENTER button, the G3
automatically switches to the
Machine Count setup if your model
has this feature.
Notice the LED next to 123 on the G3 display lights
indicating you are now in the Machine Count setup
mode.
2. Press the UP or DOWN
ARROW button to move up or
down through number 0-9.
3. When the correct number displays,
press the ENTER button to set the num-
ber.
NOTE: If the machine count input is available on the unit
and not used, the value MUST be set to zero (0).
4. Repeat 2 - 3 to set the remaining fields.
NOTE: After the Machine Count value is entered, the G3
can be programmed to backup the machine count input
with time.
