Graco G3 Series User Manual

Installation
16 332305J

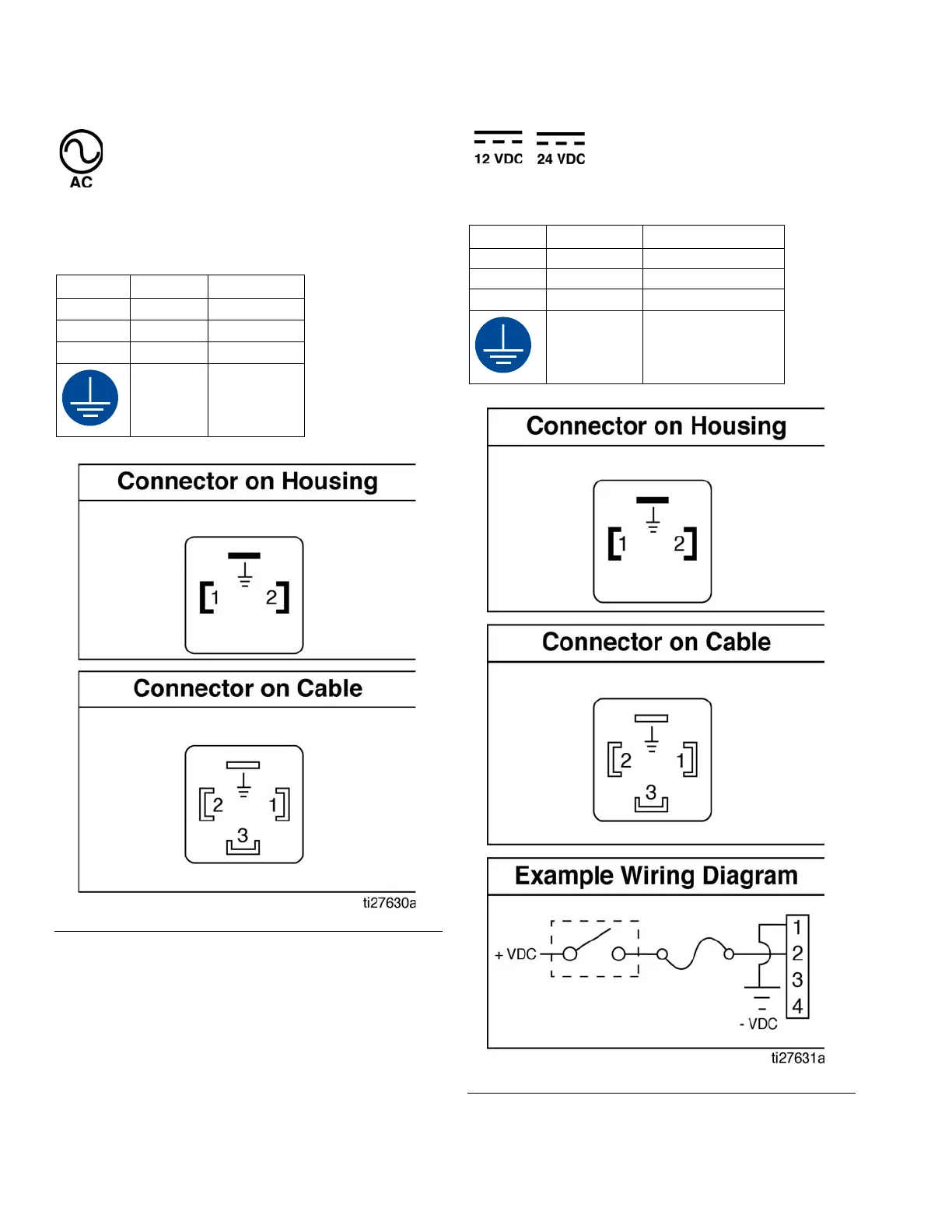

Power DIN AC - 15 foot: Part No.
16U790
Pin and Related Wire Color (FIG. 7)
Power DIN DC - 15 foot
Pin and Related Wire Color (FIG. 8)
Pin Pin Name Color
1 Line Black
2 Neutral White
3 Not Used Not Used
4
Ground Green
FIG. 7
Pin Pin Name Color
1-VDC Black
2+VDC White
3
Not Used Not Used
4
Not Used Green
FIG. 8

Graco G3 Series Specifications

General

Brand	Graco
Model	G3 Series
Category	Water Pump
Language	English
