Installation
18 332305J

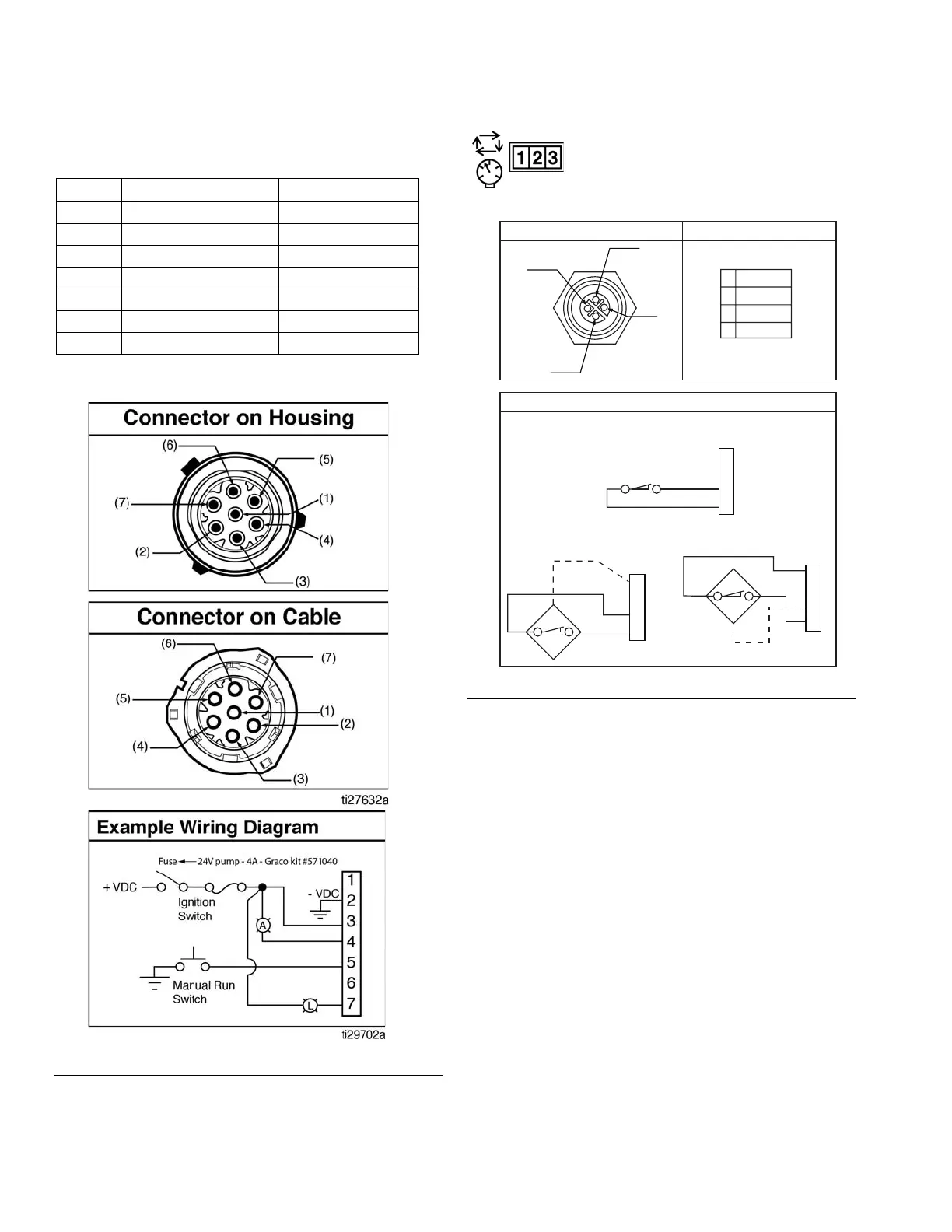

Pin and Related Wire Color (FIG. 11)
Wiring for “08” Option
Inputs (M12)
See Technical Data, page 85 for ratings.
CPC Pin Pin Name Wire Color
1 Not Used Not Used
2 -VDC/Com Black
3+VDC Red
4 Alarm White
5 Manual Orange
6 Not Used Not Used
7 Low Level Warning Green
FIG. 11
FIG. 12
1 SW +
2 Not Used
3 SW -
4 Signal
(3)
(4)
(1)
(2)
Sink (NPN) 2 or 3 wire
1
2
3
4
Source (PNP) 2 or 3 wire
1
2
3
4
Dry Contacts
1
2
3
4
Example Wiring Diagram
Pin-outConnector on Housing
